Galaxy VS
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
| Manufacturer | Schneider Electric SA | Brand | APC |
| SKU | GVSUPS20KR0B5FS | MPN | GVSUPS20KR0B5FS |
| Category | Industrial UPS | Warranty | 1 Year |
| Manufacturer Part Number | GVSUPS20KR0B5FS | Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric | Product Line | Galaxy VS |

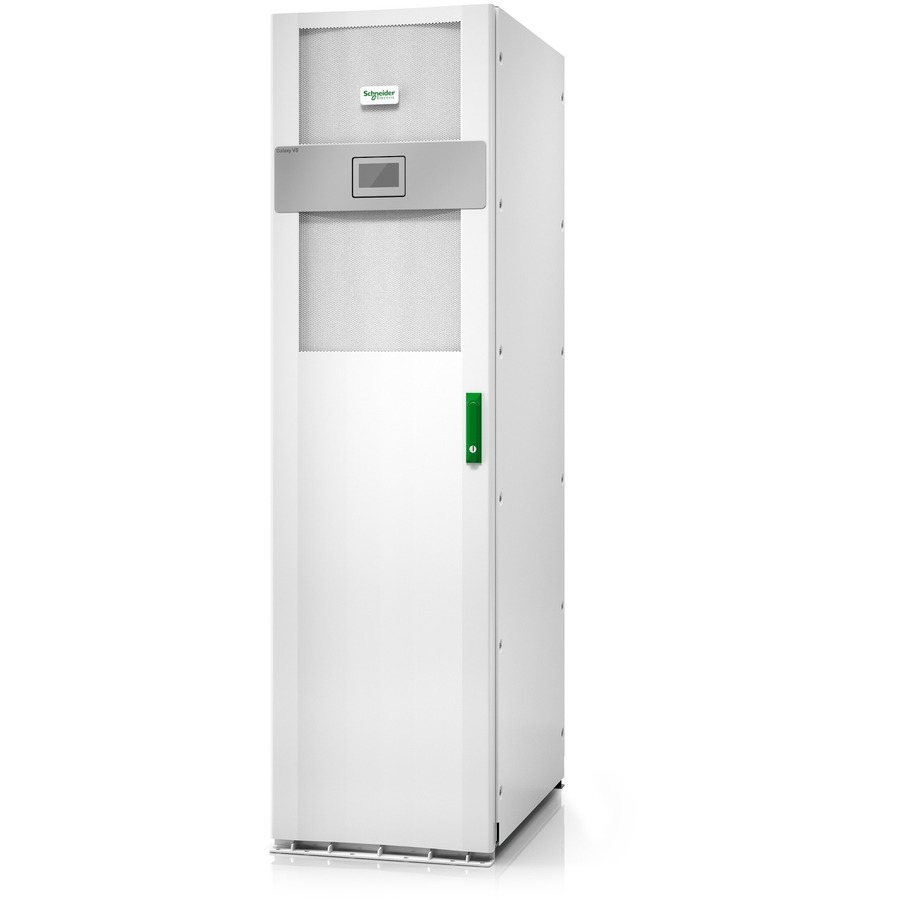

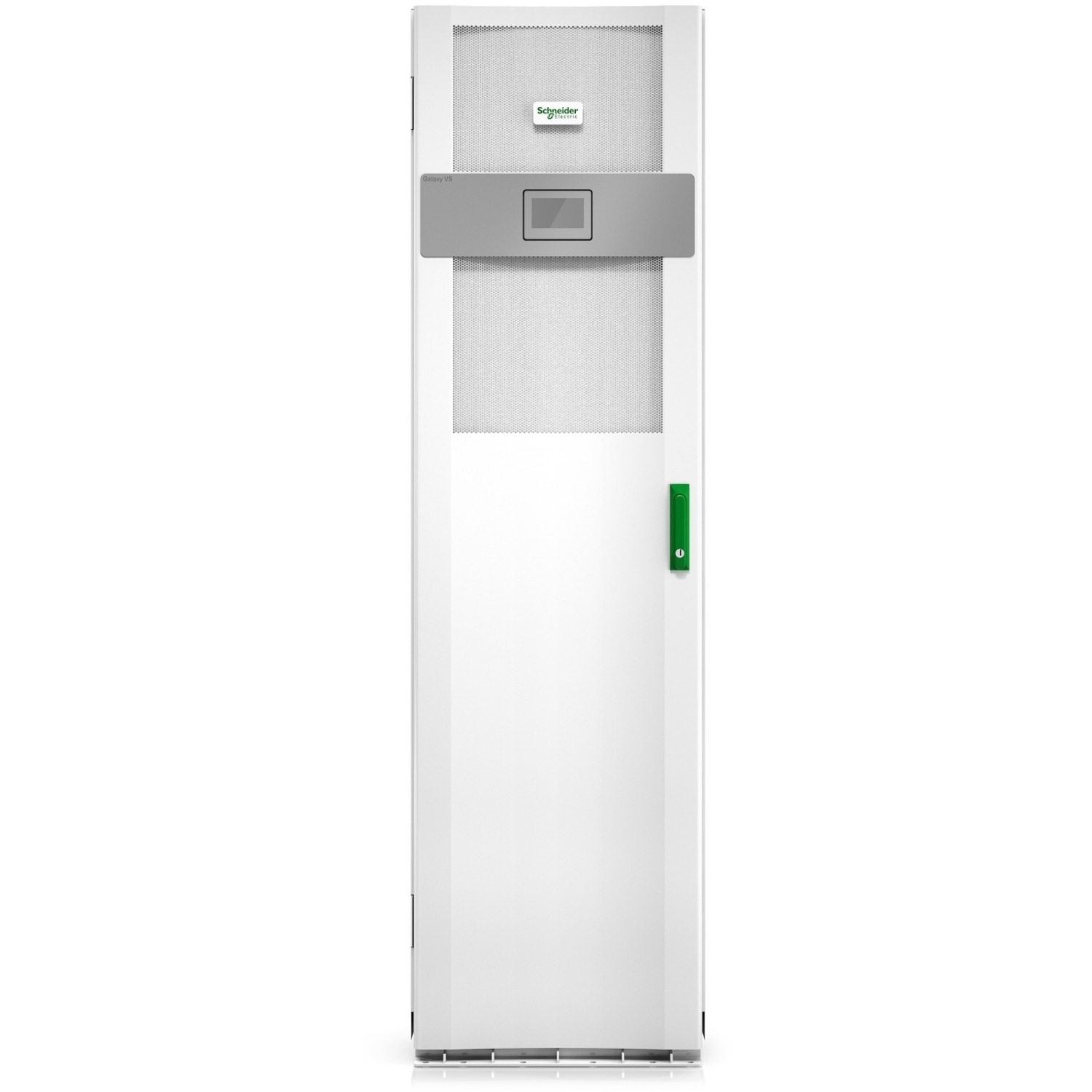

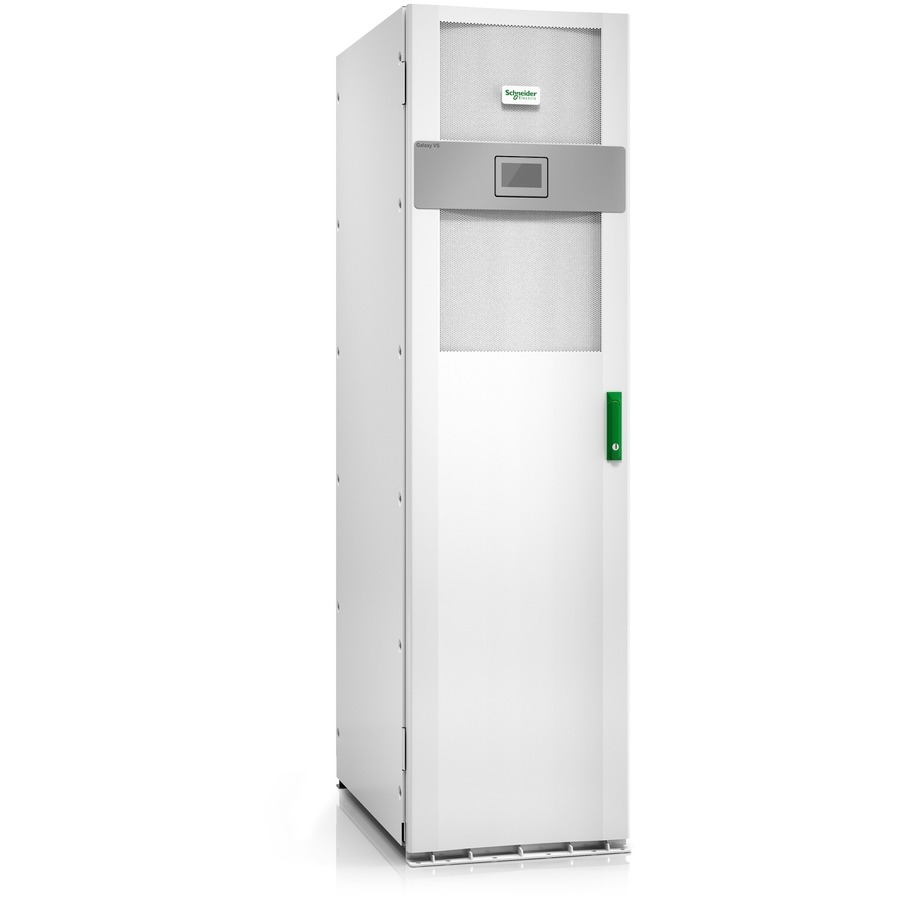

| Product Name | Galaxy VS 20kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Transfer Time | 0 ns | Phase | Three Phase |
| Application/Usage | Mission Critical Equipment |
| Load Capacity | 20 kVA | Input Voltage | 230 V AC |
| Input Voltage Range | 177 V AC - 239 V AC | Output Voltage | 200 V AC |
| Input Frequency | 70 Hz | Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Network Management | SNMP Manageable |
| Control Panel | Touch Screen LCD User Interface |
| DC System Voltage | 480 V DC | Battery Characteristics | Valve Regulated Lead Acid (VRLA) |
| Battery Chemistry | Lead Acid | Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) | Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Elevation | 3248.03 ft (990000 mm) | Maximum Storage Elevation | 118.11" (3000 mm) |
| Storage Relative Humidity | 10% - 80% | Sound Emission (A-Weighted) | 54 dB(A) |
| Thermal Dissipation | 3234 BTU/h |
| Form Factor | Tower | Height | 78" (1981.20 mm) |
| Width | 22" (558.80 mm) | Depth | 34" (863.60 mm) |
| Weight (Approximate) | 250 kg |
| Package Contents | Galaxy VS 20kVA Tower UPS |
| Limited Warranty | 1 Year |
