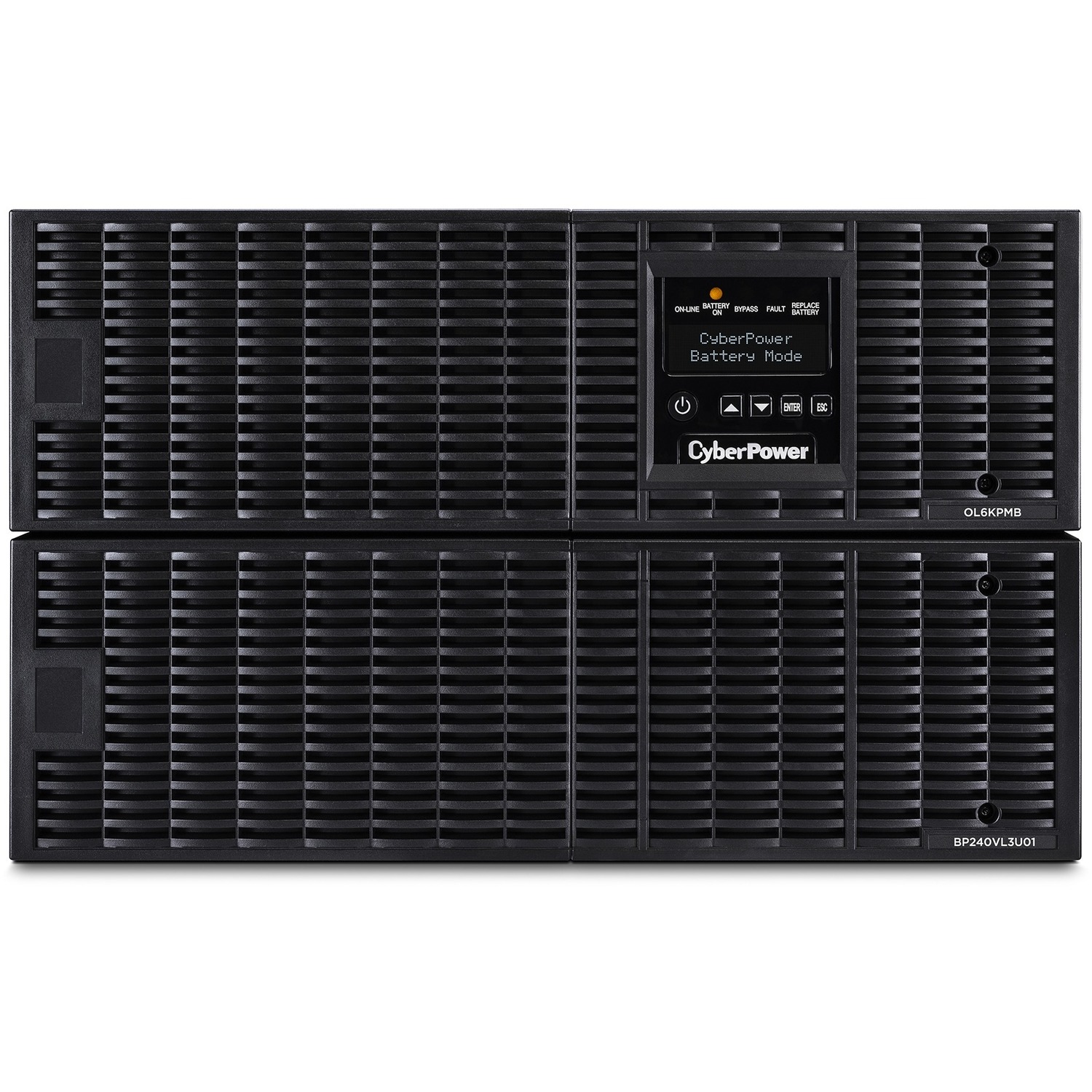

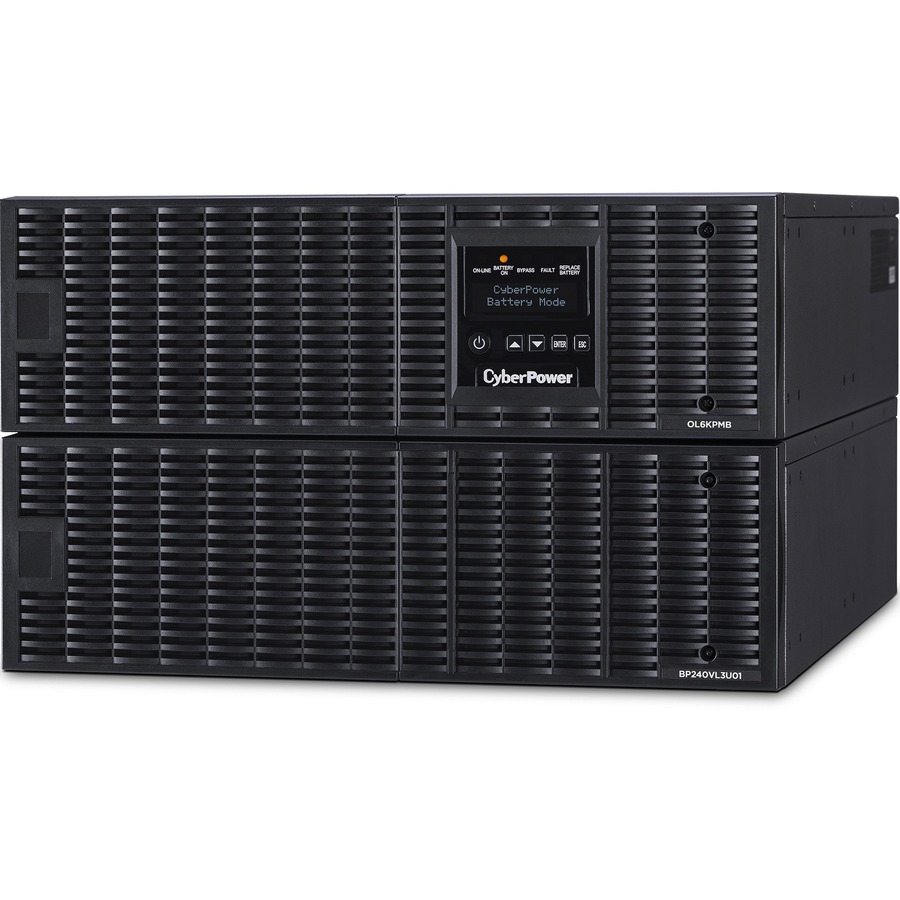

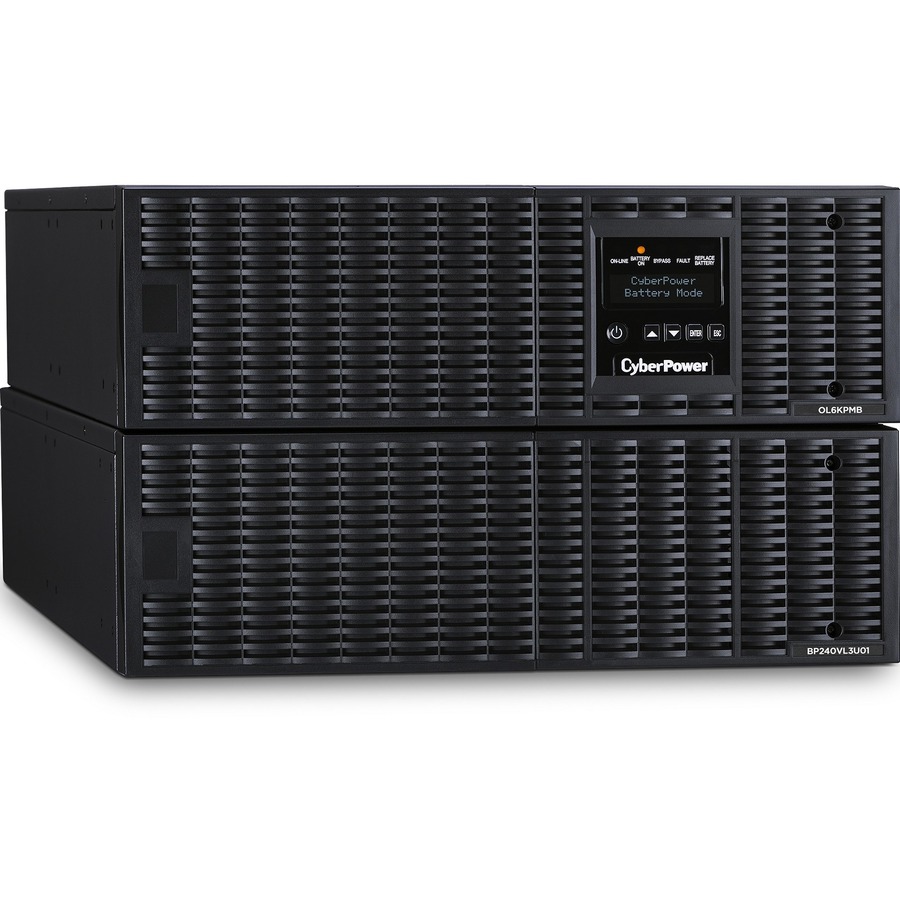

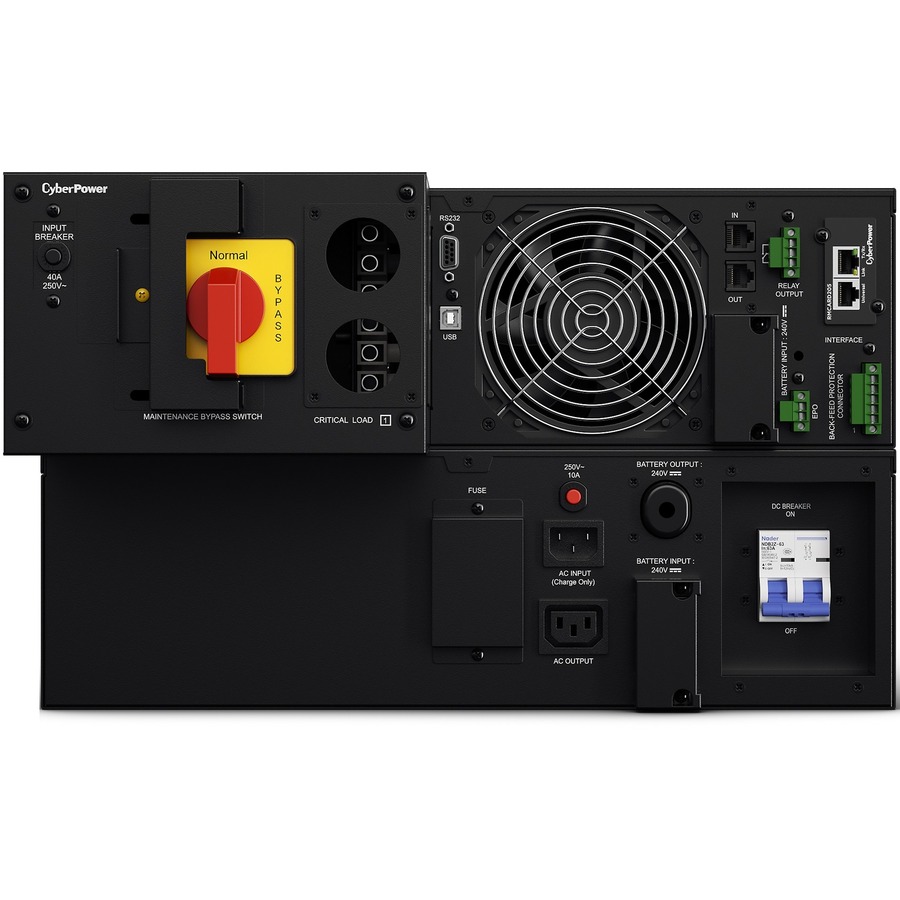

The CyberPower Smart App Online OL6KRTHW is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in four hours.
The OL6KRTHW enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.
Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL6KRTHW simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.
The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL6KRTHW comes with a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
| Manufacturer | CyberPower Systems, Inc | Brand | CyberPower |
| SKU | OL6KRTHW | MPN | OL6KRTHW |
| Category | Industrial UPS | Warranty | 3 Year |
| Manufacturer Part Number | OL6KRTHW | Manufacturer Website Address | http://www.cyberpowersystems.com |
| Brand Name | CyberPower | Product Series | Smart App Online UPS |
| Product Model | OL6KRTHW | Product Name | Smart App Online OL6KRTHW 6KVA Rack/Tower UPS |
| Product Condition | New | Product Type | Double Conversion Online UPS |
| Plug/Connector Type | Hardwired | Receptacle Type | Terminal Block |
| Receptacle Detail | 1 x Terminal Block | Transfer Time | 0 ns |
| Dataline Protection | RJ-11 | Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes | Energy Saving | ECO Mode Efficiency >96% |
| Application/Usage | Server |
| Load Capacity | 6 kVA | Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC | Output Voltage | 200 V AC |
| Input Frequency | 70 Hz | Output Frequency | 50.25 Hz |
| Waveform Type | Sine Wave | Surge Energy Rating | 2430 J |
| Network Management | SNMP Manageable | Alarm | Battery Mode |
| Status Indicators | Power On (White) |
| Serial Port | Yes | USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| DC System Voltage | 12 V DC | Number of Batteries | 20 |
| Battery Characteristics | Sealed | Battery Chemistry | Lead Acid |
| Battery Size | 12V | Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 4.40 Minute | Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 4 Hour | Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) | Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) | Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% | Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 65 dB(A) | Thermal Dissipation | 2125 BTU/h |
| Product Color | Black | Form Factor | Rack/Tower |
| Rack Height | 6U | Height | 10.40" (264.16 mm) |
| Width | 17.05" (433.07 mm) | Depth | 32.30" (820.42 mm) |
| Weight (Approximate) | 104.58 kg |
| Package Contents | Smart App Online OL6KRTHW 6KVA Rack/Tower UPS | Software Included | PowerPanel® Business Edition |
| Energy Star | Yes | Environmentally Friendly | Yes |
| Environmental Certification | RoHS | Country of Origin | China |
| Limited Warranty | 3 Year |
