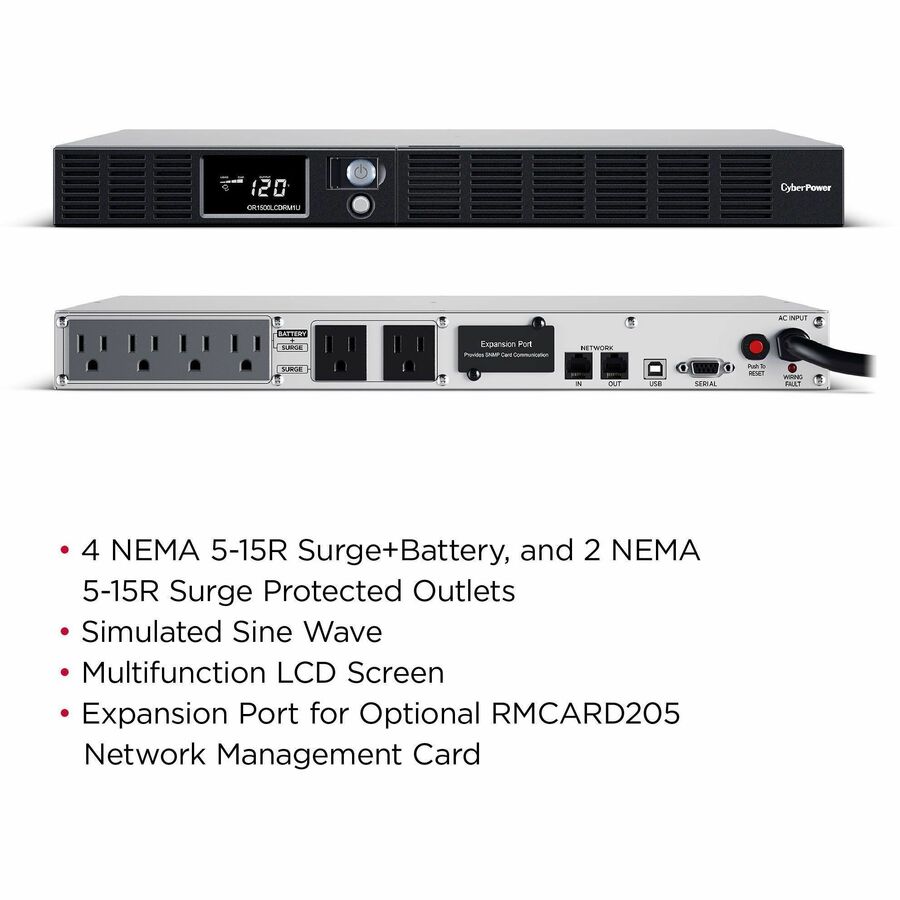

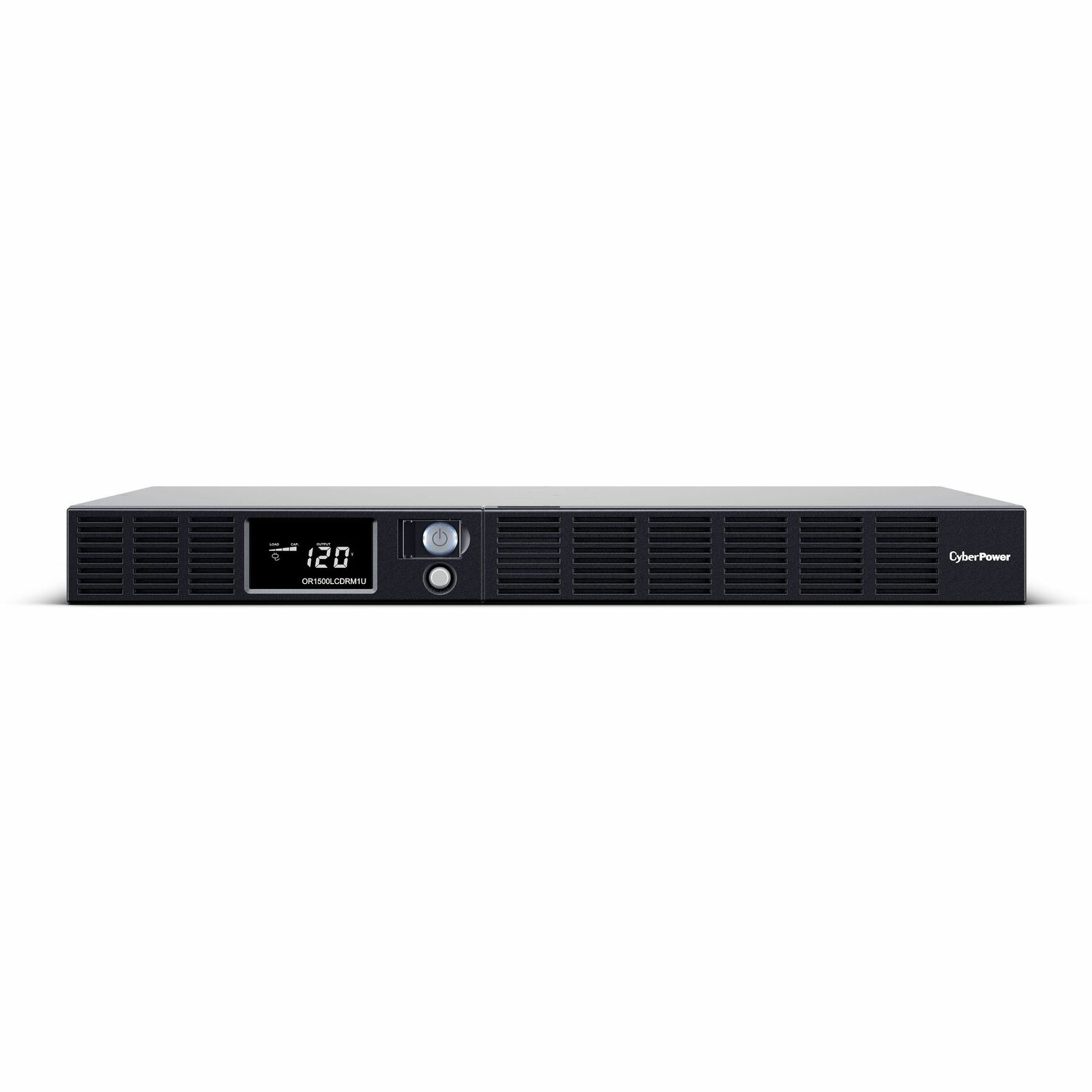

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
| Manufacturer | CyberPower Systems, Inc | Brand | CyberPower |
| SKU | OR1500LCDRM1U | MPN | OR1500LCDRM1U |
| Category | Industrial UPS | Warranty | 3 Year |
| Manufacturer Part Number | OR1500LCDRM1U | Manufacturer Website Address | http://www.cyberpowersystems.com |
| Brand Name | CyberPower | Product Series | Smart App LCD UPS |
| Product Model | OR1500LCDRM1U | Product Name | Smart App OR1500LCDRM1U 1500VA UPS |
| Product Type | Line-interactive UPS |
| AVR | Yes | Plug/Connector Type | NEMA 5-15P |

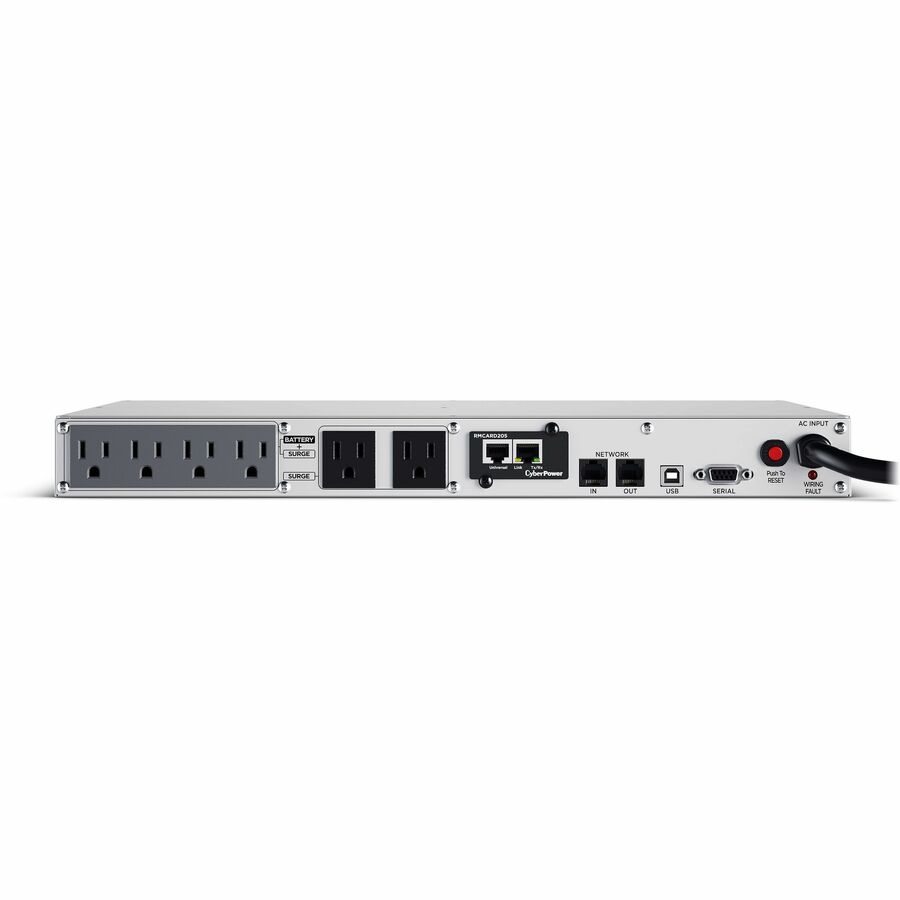

| Receptacle Type | NEMA 5-15R | Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 | Number of Surge-only Outlets | 2 |
| Transfer Time | 8 ms | Dataline Protection | RJ-45 |
| Overload Protection | Yes | EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Design |
| Load Capacity | 1.50 kVA | Input Voltage | 120 V AC |
| Input Voltage Range | 90 V AC - 140 V AC | Output Voltage | 120 V AC |
| Input Frequency | 63 Hz | Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave | Surge Energy Rating | 1150 J |
| Network Management | SNMP Manageable | Alarm | Battery Mode |
| Status Indicators | Power On |
| Serial Port | Yes | USB (HID Compliant) Port | Yes |
| DC System Voltage | 6 V DC | Number of Batteries | 4 |
| Battery Chemistry | Lead Acid | Battery Size | 6V |
| Battery Capacity | 9000 mAh | Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 11 Minute | Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) | Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) | Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Form Factor | Rack-mountable | Rack Height | 1U |
| Height | 1.75" (44.45 mm) | Width | 17.05" (433.07 mm) |
| Depth | 15.60" (396.24 mm) | Weight (Approximate) | 14.97 kg |
| Software Included | PowerPanel® Business | Energy Star | Yes |
| Environmentally Friendly | Yes | Environmental Certification | RoHS |
| Limited Warranty | 3 Year |
