A Smart Solution for Displaying 4K Video in Business and Digital Signage Applications

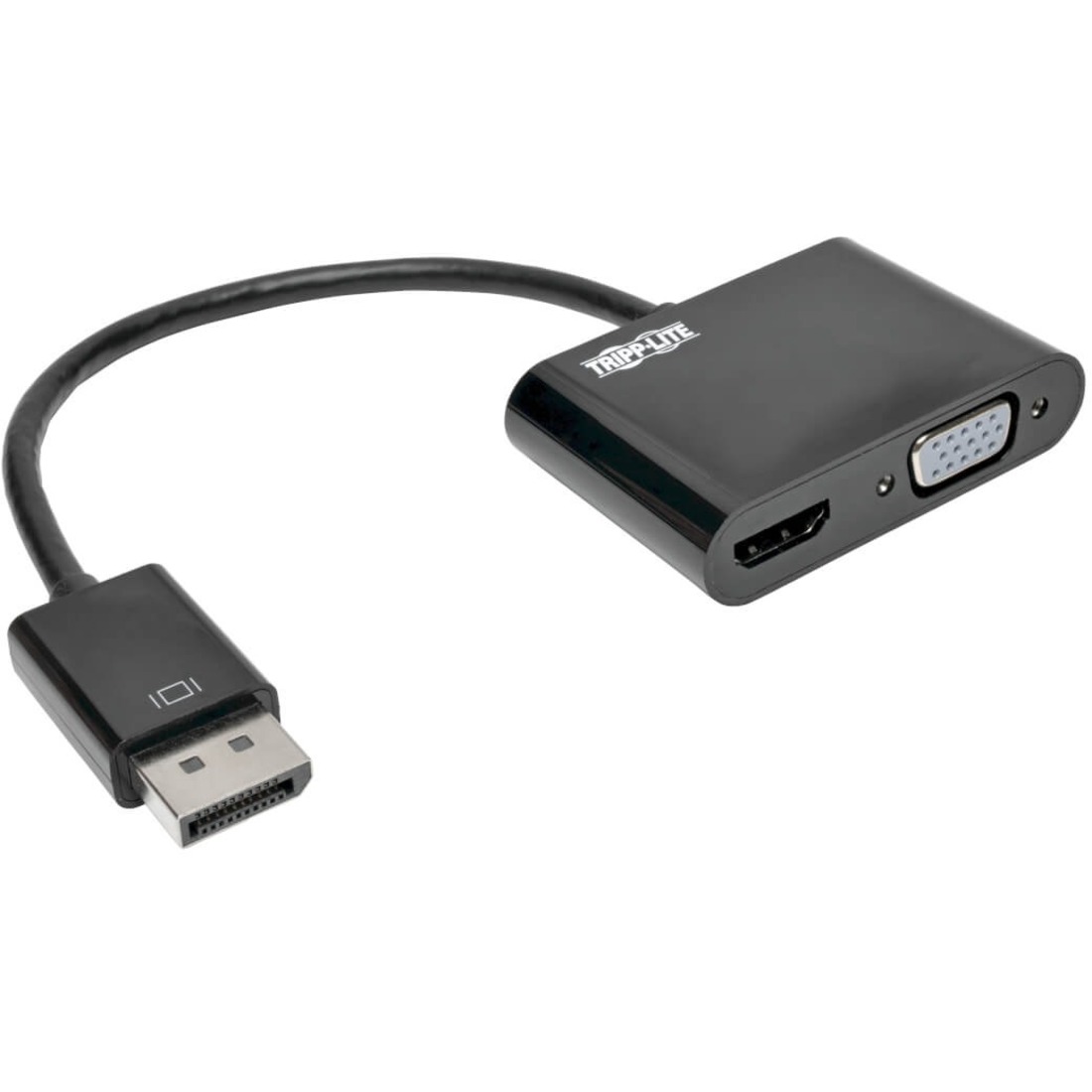

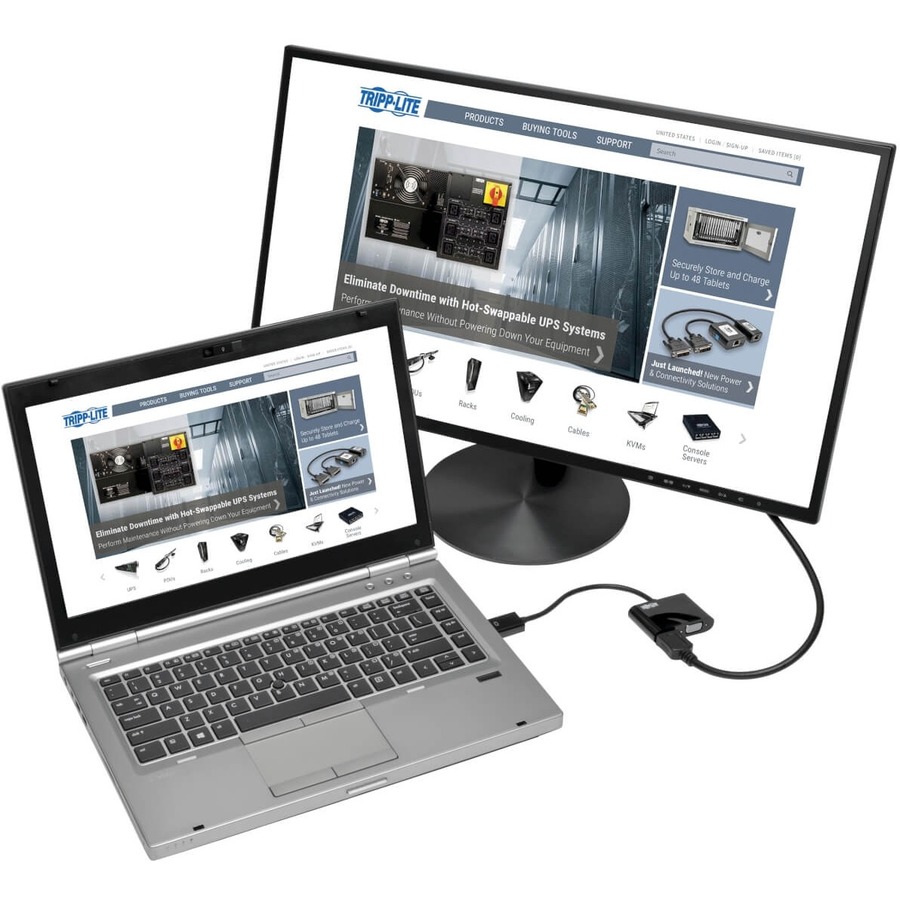

This set includes 50 Tripp Lite P136-06N-HV-V2 DisplayPort 1.2 to VGA/HDMI passive adapters. Each adapter allows you to play high-definition or Ultra High Definition video with audio from your DisplayPort computer to a VGA or HDMI display. No more carrying around separate adapters for various monitors, projectors and televisions. The simple all-in-one solution for displaying content on a larger screen, these units are an easy, inexpensive way to play high-quality video in classrooms, conference rooms, trade shows and other on-the-road presentations.
Ready to Use Right Out of the Package

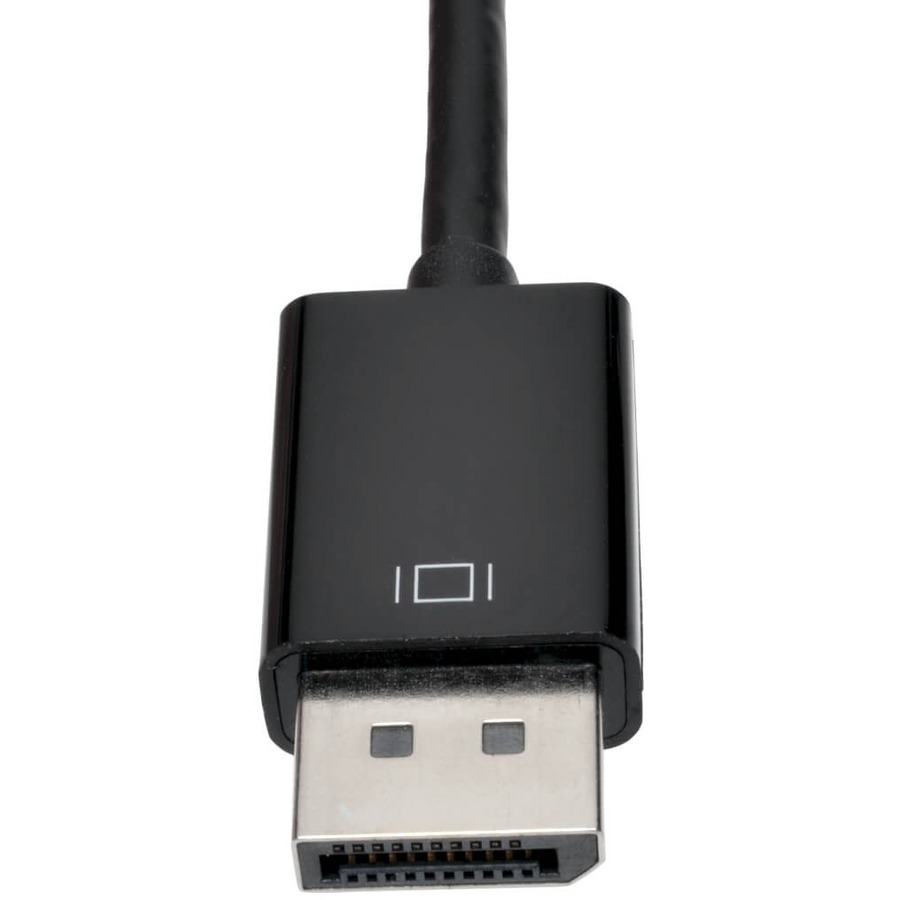

Ideal for displaying video on a large monitor or digital sign, each adapter is perfectly sized for carrying in your pocket, briefcase, purse or laptop bag for convenient use anywhere. Just connect the male DP end to your computer's DisplayPort and the female VGA or HDMI connector to a compatible cable to begin sharing audio/video signals. Only one display may be connected at a time. The plug-and-play P136-06N-HV-V2 requires no software, drivers or external power.
Enjoy Outstanding Picture Quality up to 4K x 2K

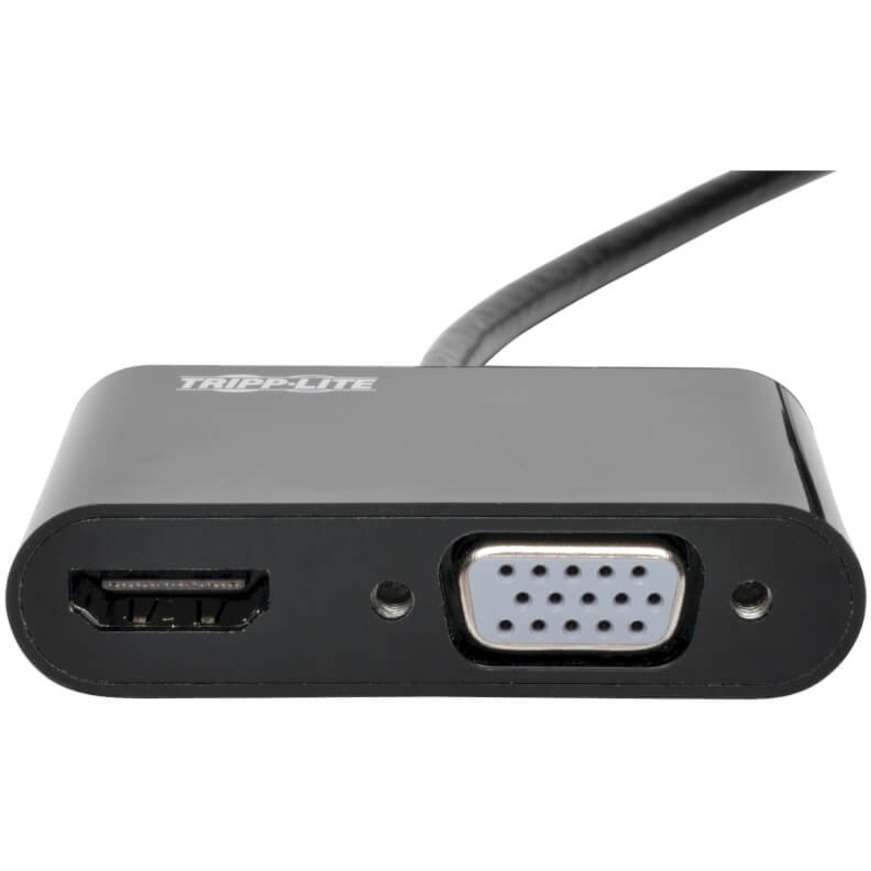

The all-in-one unit contains separate female HD15 and HDMI ports. It supports video resolutions up to 1920 x 1200, including 1080p (HD15), and 4K x 2K (HDMI) at 24/30 Hz.
Passive Adapters Require DisplayPort++ for HDMI Pass Through
Because they are passive adapters, these units require that the connected source device have a DisplayPort++ (DP++) dual-mode port, which allows HDMI signals to pass through. Check your DisplayPort source's documentation for compatibility.
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | P136-06N-HVV2BP | MPN | P136-06N-HVV2BP |
| Category | Connector Cables | Warranty | 3 Year |
| Manufacturer Part Number | P136-06N-HVV2BP | Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite | Product Model | P136-06N-HVV2BP |
| Product Name | P136-06N-HVV2BP DisplayPort/HDMI/VGA Audio/Video Cable |
| Packaged Quantity | 50 | Product Type | A/V Cable |
| Cable Type | DisplayPort/HDMI/VGA | Cable Length | 6" |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male | Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 1.4 Digital Audio/Video - Female | Connector on Second End Details | 1 x HDMI 1.4 Digital Audio/Video - Female |
| Connector Plating | Nickel | Contact Plating | Gold |
| Features | HDCP 1.4 | Device Supported | Monitor |
| American Wire Gauge | 34/32 AWG | Supported Resolution | 3840 x 2160 |
| Product Color | Black | Product Material | ABS |
| Weight (Approximate) | 45.4 g |
| Package Contents | (50) P136-06N-HV-V2 DisplayPort 1.2 to VGA/HDMI All-in-One Converter Adapters | Environmentally Friendly | Yes |
| Environmental Certification | RoHS | Country of Origin | China |
| Limited Warranty | 3 Year |
