HomeProductsPDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P

-29%

CyberPower PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable

Name: PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
Brand: CyberPower
SKU: PDU20MHVT10AT
Price: 623.95 USD
Availability: OutOfStock

SKU: PDU20MHVT10AT|Out of Stock

$445.53$623.95-29%

You save $178.42

Quantity

Free Shipping

Warranty Included

30-Day Returns

Out of Stock

Warehouse Location	Available
UPSANDBATTERY	Not Available
Total:	Not Available

Live real-time inventory is delayed by 30 minutes.

About This Product

ManufacturerCyberPower Systems, Inc

Nominal Voltage230 V AC

Warranty3 Year

Product Description

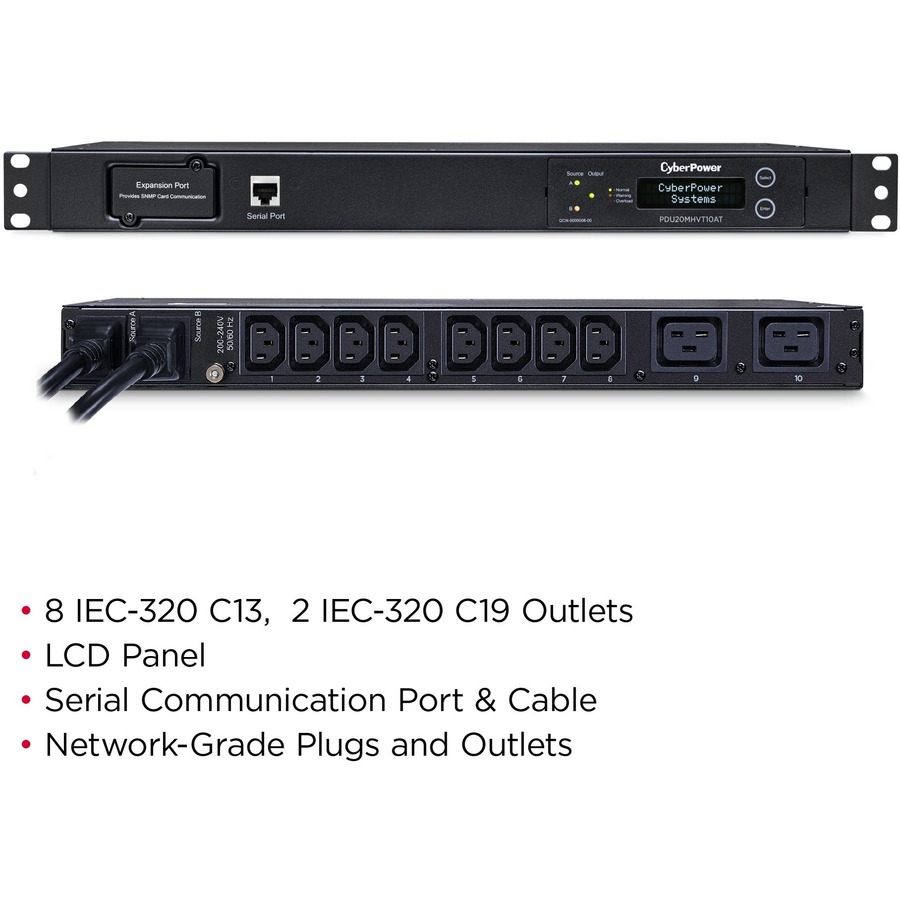

The CyberPower PDU20MHVT10AT, a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

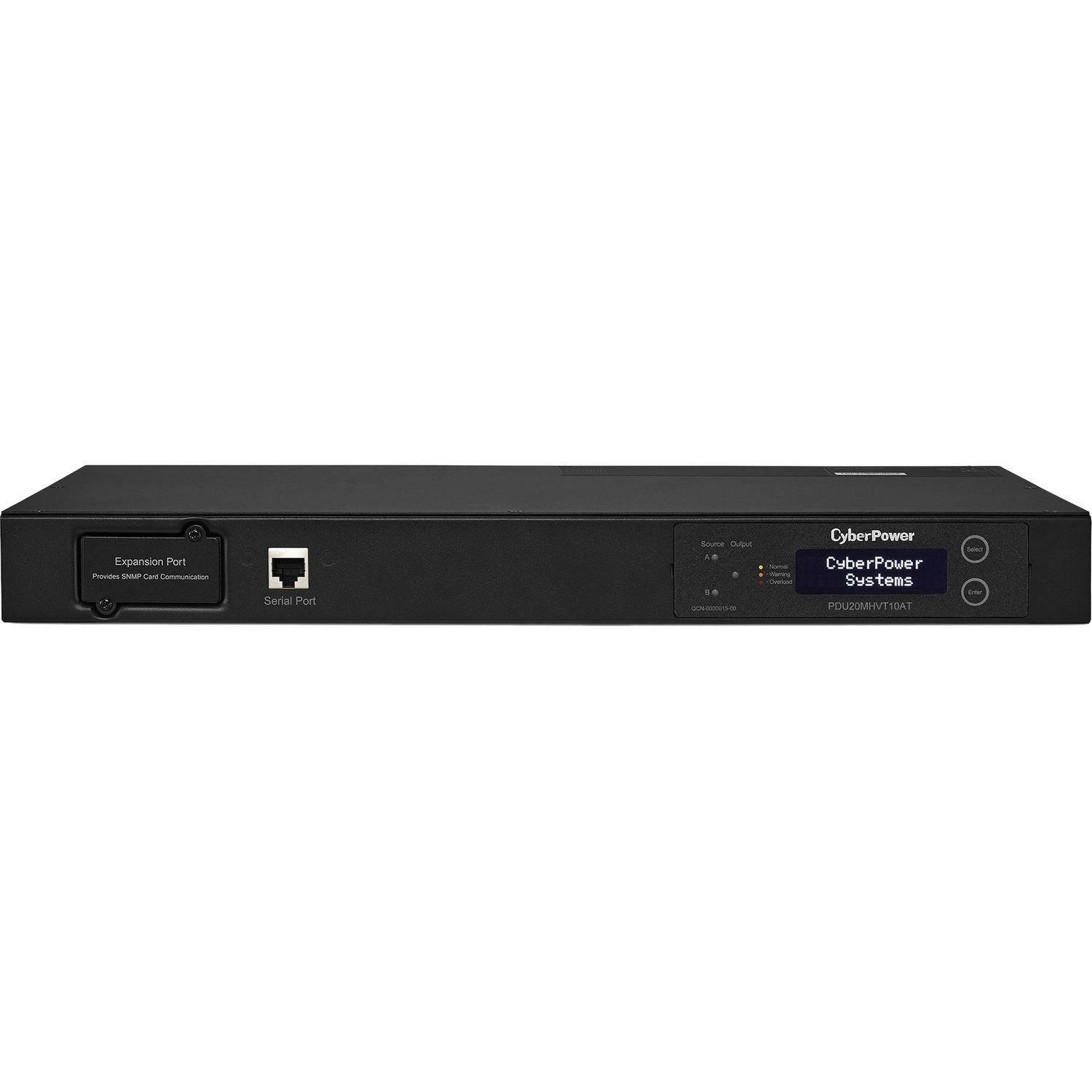

The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.

The PDU20MHVT10AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).

The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Specifications

Manufacturer	CyberPower Systems, Inc	Brand	CyberPower
SKU	PDU20MHVT10AT	MPN	PDU20MHVT10AT
Category	PDUs	Warranty	3 Year
Manufacturer Part Number	PDU20MHVT10AT	Manufacturer Website Address	http://www.cyberpowersystems.com
Brand Name	CyberPower	Product Series	Metered ATS PDU
Product Model	PDU20MHVT10AT	Product Name	PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
Marketing Information	The CyberPower PDU20MHVT10AT, a 10-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.	Product Type	PDU

Plug/Connector Type	NEMA L6-20P	Plug/Connector Detail	2 x NEMA L6-20P

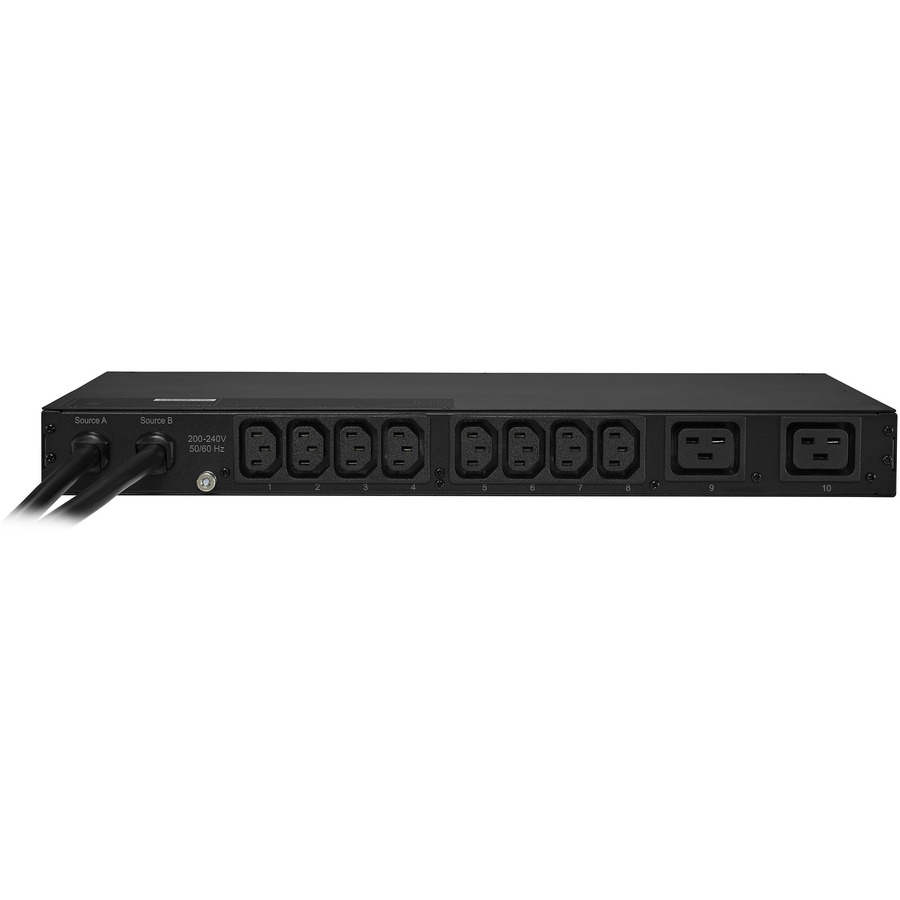

Receptacle Type	IEC 60320 C13	Receptacle Detail	8 x IEC 60320 C13
Protection Type	Under Voltage Protection

Input Voltage	230 V AC	Output Voltage	230 V AC
Input Current	20 A

Network (RJ-45)

Yes

Mounting Orientation	Horizontal	Mount Type	Rack-mountable

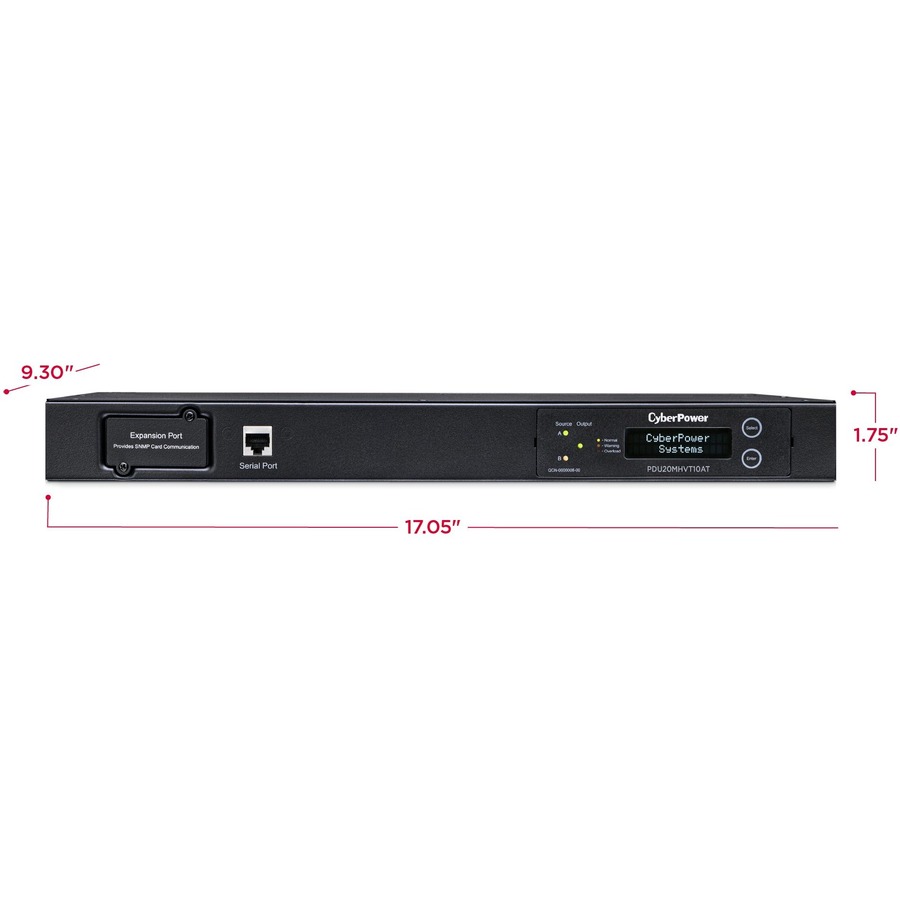

Rack Height	1U	Height	1.75" (44.45 mm)
Width	17.05" (433.07 mm)	Depth	9.30" (236.22 mm)
Weight (Approximate)	5.20 kg

Package Contents	PDU20MHVT10AT Metered ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20	Environmentally Friendly	Yes
Environmental Certification	RoHS	Country of Origin	China

Limited Warranty

3 Year

Product Documents

Document	Description	Type	Actions
User Manual	Complete product operation and setup guide	PDF
Product Brochure	Manufacturer product overview and highlights	PDF
