CyberPower PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20 - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Rack-mountable

Name: PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
Brand: CyberPower
SKU: PDU20SWHVIEC10ATNET
Price: 1007.97 USD
Availability: OutOfStock

SKU: PDU20SWHVIEC10ATNET|Out of Stock

$874.41$1,007.97-13%

You save $133.56

Quantity

Free Shipping

Warranty Included

30-Day Returns

Out of Stock

Warehouse Location	Available
UPSANDBATTERY	Not Available
Total:	Not Available

Live real-time inventory is delayed by 30 minutes.

About This Product

ManufacturerCyberPower Systems, Inc

Nominal Voltage230 V AC

Warranty3 Year

Product Description

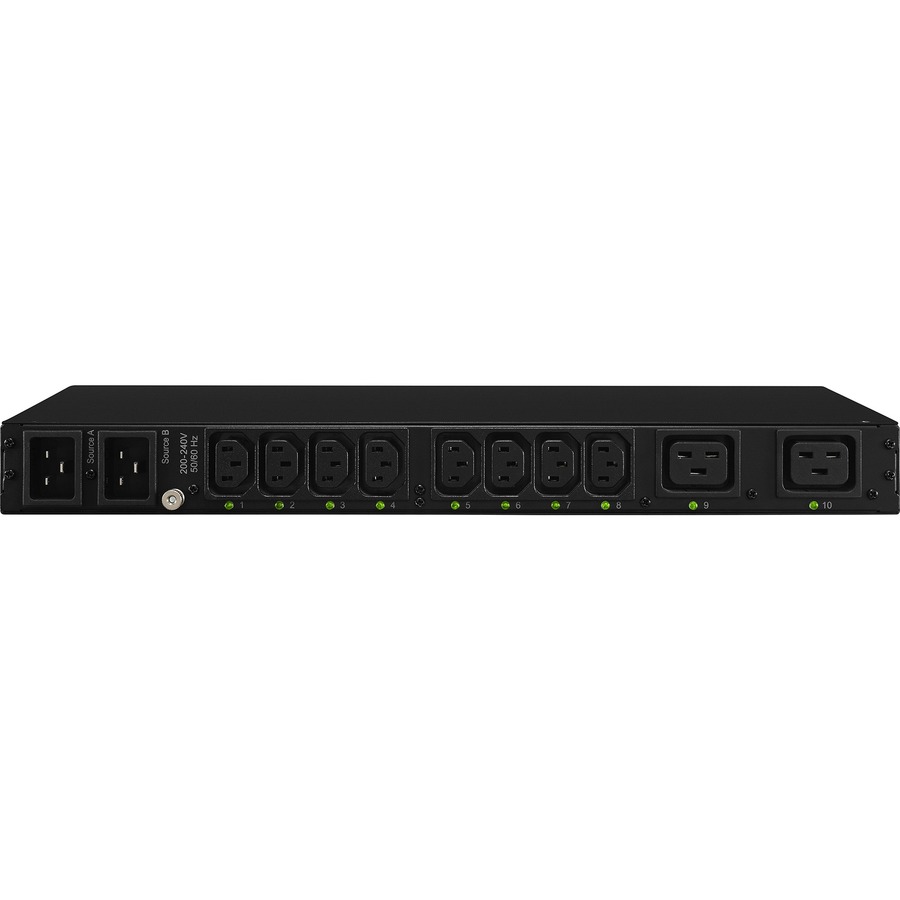

The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

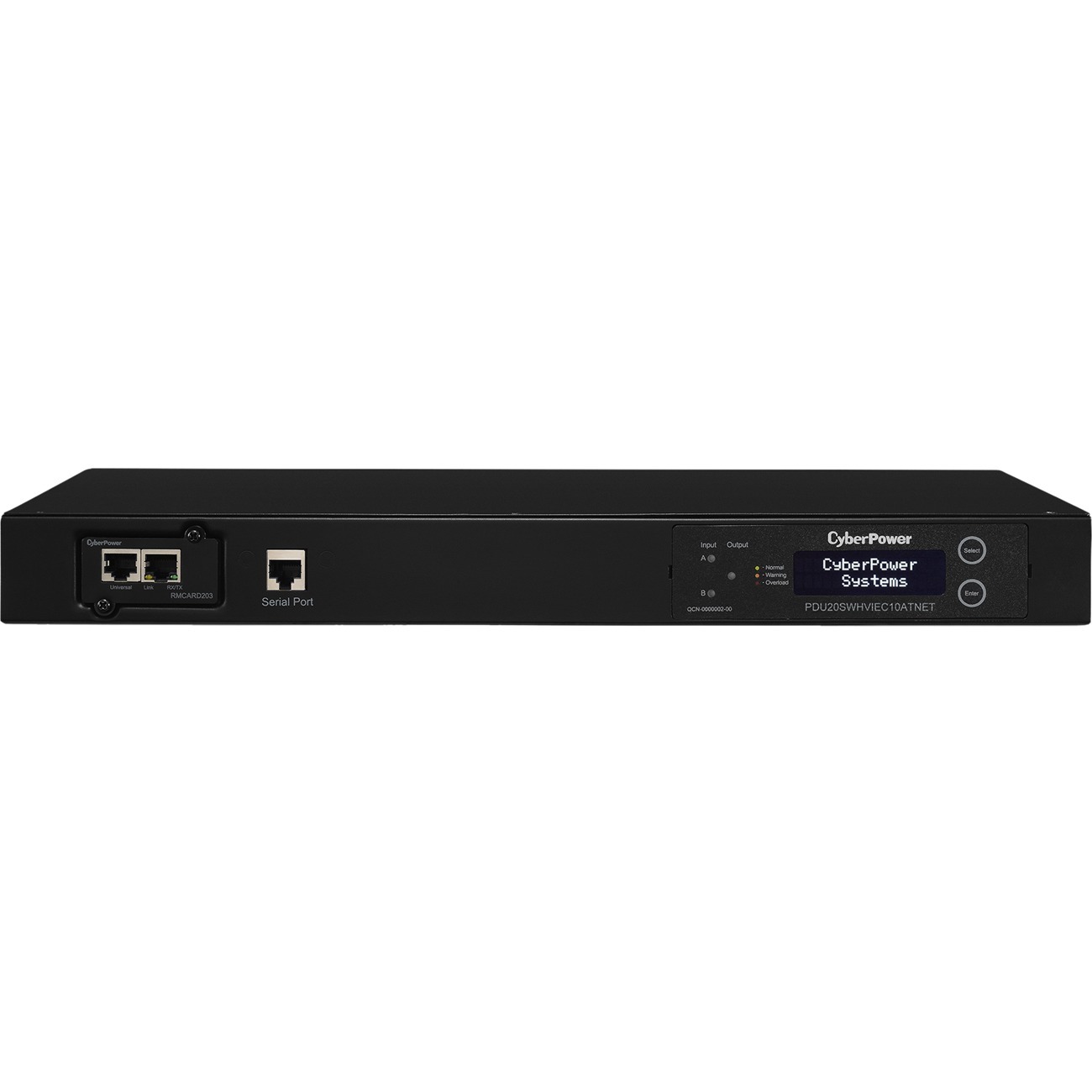

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Specifications

Manufacturer	CyberPower Systems, Inc	Brand	CyberPower
SKU	PDU20SWHVIEC10ATNET	MPN	PDU20SWHVIEC10ATNET
Category	PDUs	Warranty	3 Year
Manufacturer Part Number	PDU20SWHVIEC10ATNET	Manufacturer Website Address	http://www.cyberpowersystems.com
Brand Name	CyberPower	Product Series	Switched ATS PDU
Product Model	PDU20SWHVIEC10ATNET	Product Name	PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
Marketing Information	The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.	Product Type	PDU

PDU Type	Switched	Plug/Connector Type	IEC 60320 C20
Plug/Connector Detail	2 x IEC 60320 C20	Receptacle Type	IEC 60320 C13
Receptacle Detail	8 x IEC 60320 C13

Input Voltage	230 V AC	Output Voltage	230 V AC
Input Current	20 A

Mount Type	Rack-mountable	Rack Height	1U
Height	1.75" (44.45 mm)	Width	17.05" (433.07 mm)
Depth	9.30" (236.22 mm)	Weight (Approximate)	3.80 kg

Package Contents	PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20	Environmentally Friendly	Yes
Environmental Certification	RoHS	Country of Origin	China
