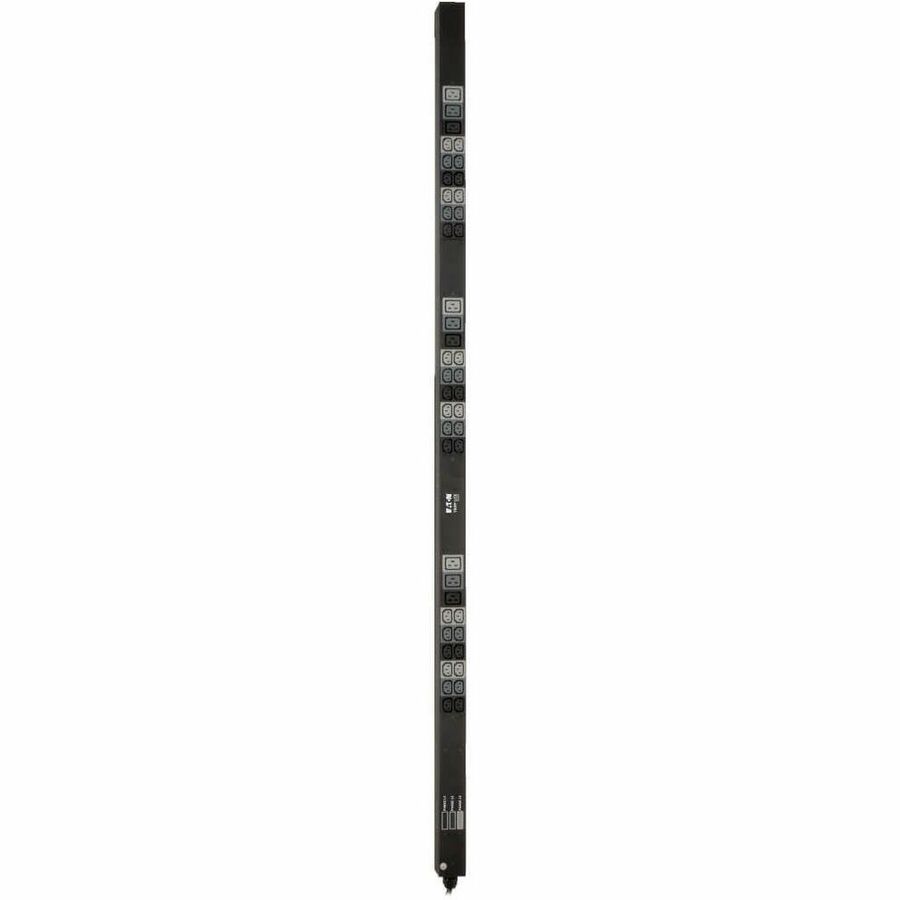

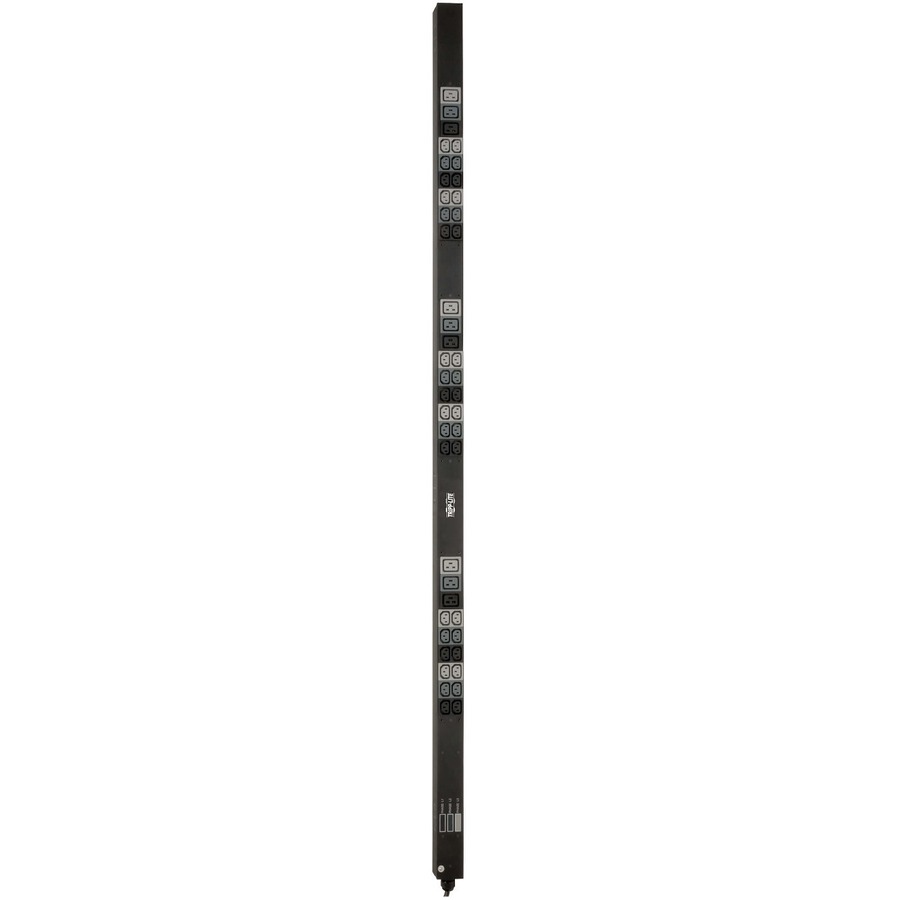

3-Phase 360-415V input / 208V-240V output PDU Distributes Network-Grade Power to Multiple Loads

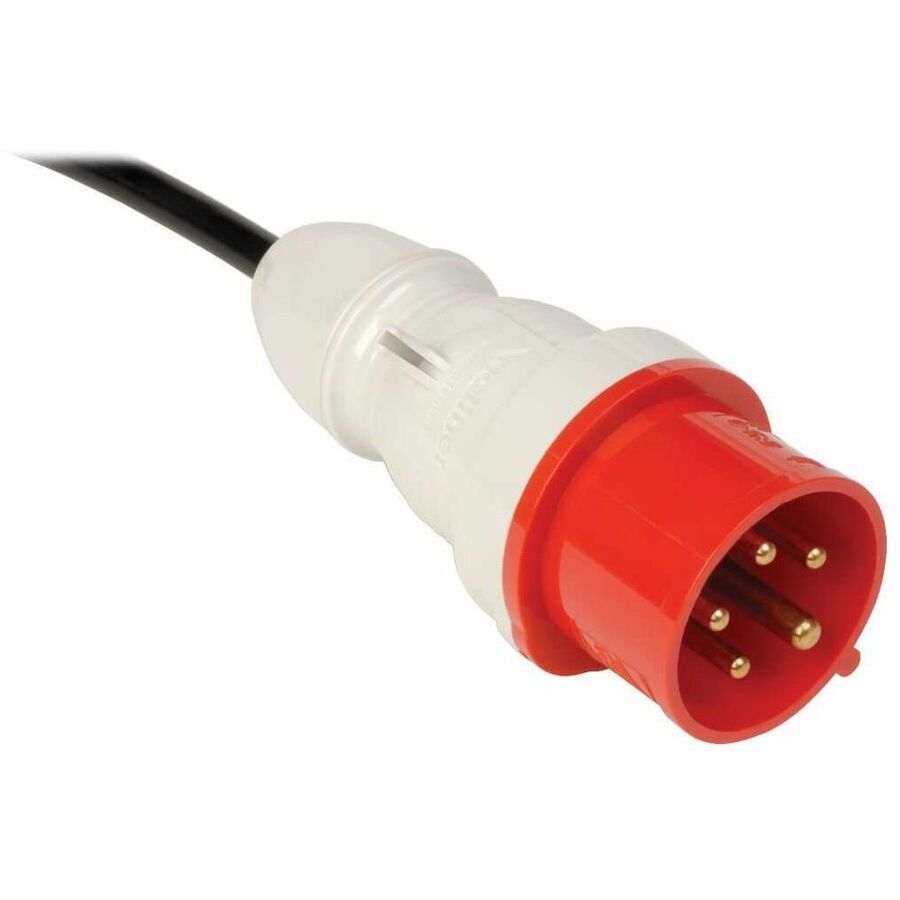

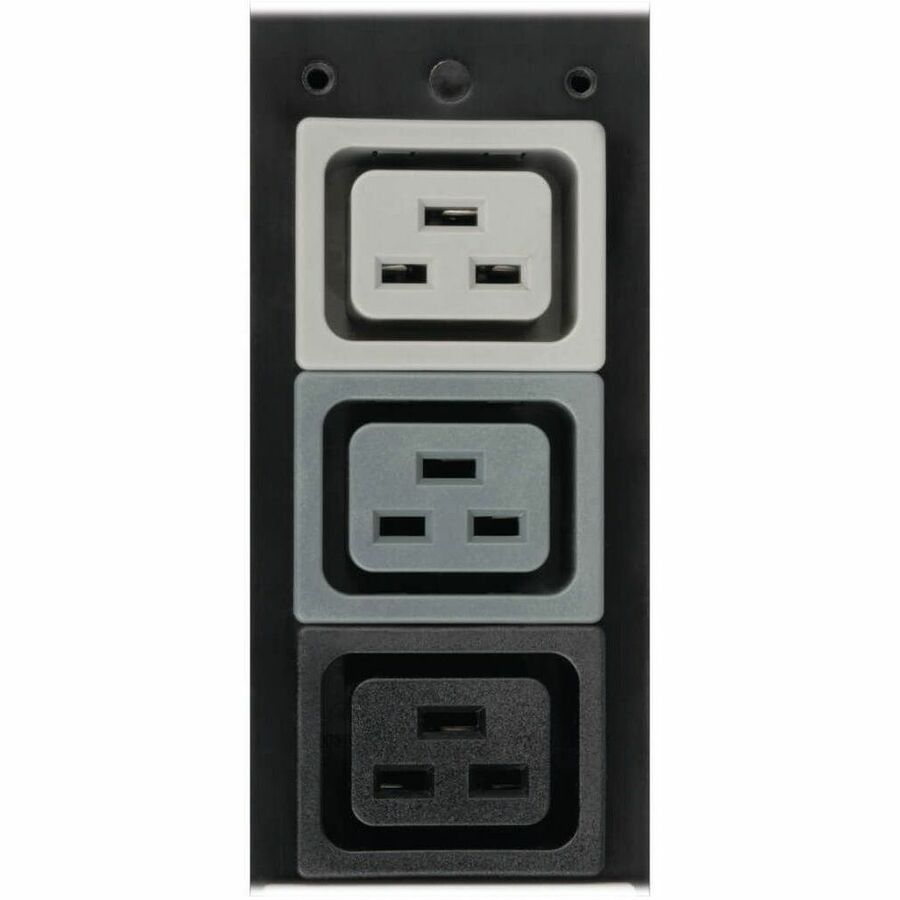

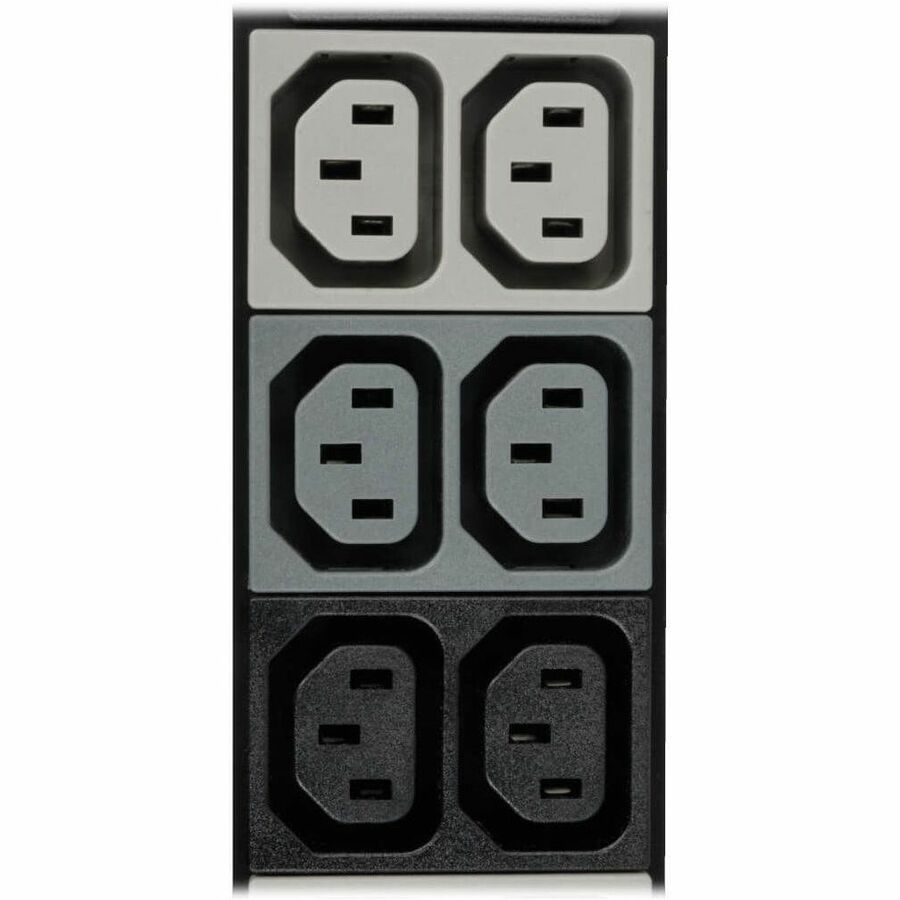

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3XV6G20 features 36 C13 and six C19 (208-240V) outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with IEC 309 16/20A Red 360-415V (3P+N+E) 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

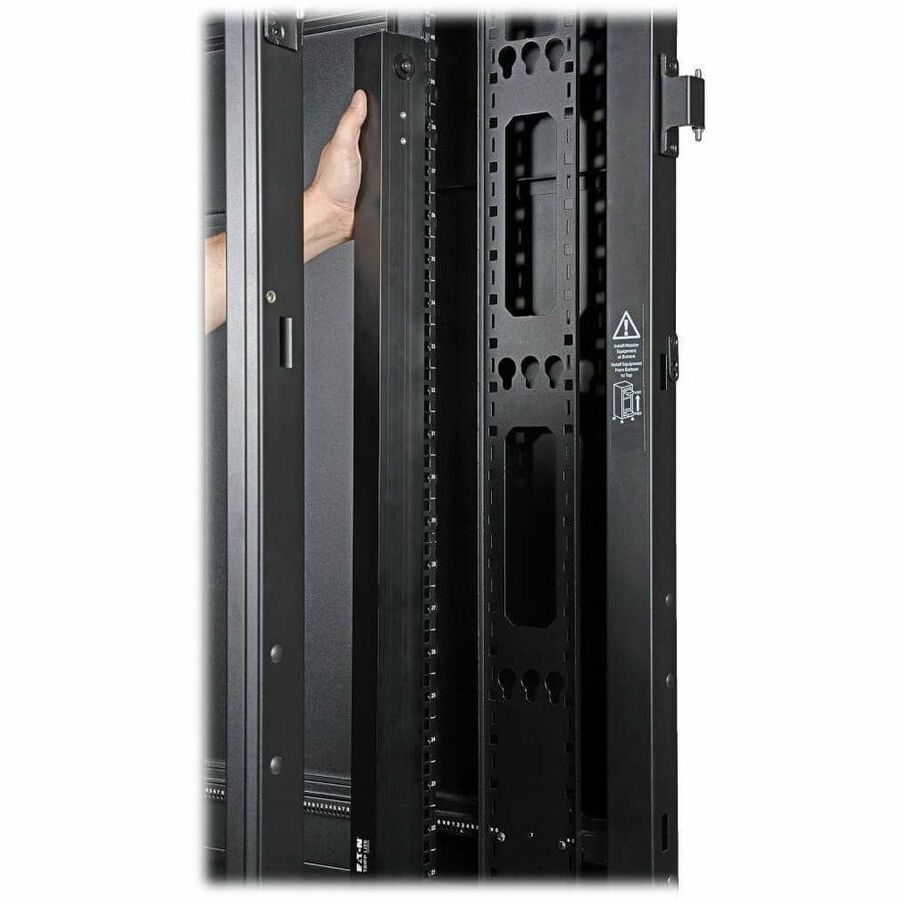

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3XV6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | PDU3XV6G20 | MPN | PDU3XV6G20 |
| Category | PDUs | Warranty | 2 Year |
| Manufacturer Part Number | PDU3XV6G20 | Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite | Product Model | PDU3XV6G20 |
| Product Name | PDU3XV6G20 45-Outlets PDU |
| Product Type | PDU |
| PDU Type | Basic | Phase | Three Phase |
| Plug/Connector Type | IEC 60309 16/20A Red (3P+N+E) | Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 36 x IEC 60320 C13 | Protection Type | Accidental Power Shutdown |
| Locking Receptacles | Cord Retention Bracket |
| Input Voltage Range | 360 V AC - 415 V AC | Output Voltage | 208 V AC |
| Power Rating (Watt) | 11.50 kW | Input Current | 16 A |
| Mounting Orientation | Vertical/Toolless | Mount Type | Rack-mountable |
| Rack Height | 0U | Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) | Depth | 1.93" (49.02 mm) |
| Weight (Approximate) | 4.08 kg |
| Package Contents | PDU3XV6G20 45-Outlets PDU | Environmentally Friendly | Yes |
| Environmental Certification | RoHS | Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
