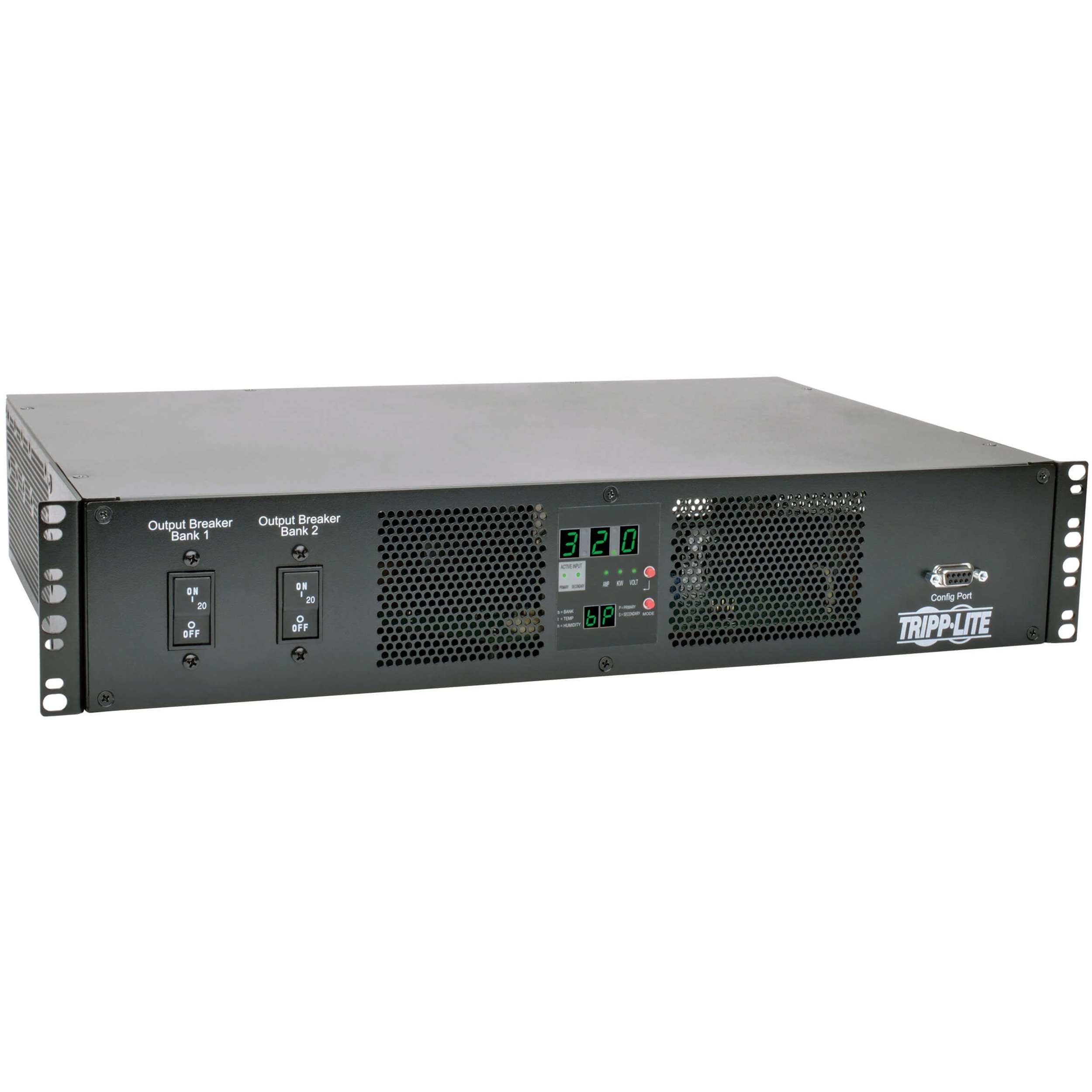

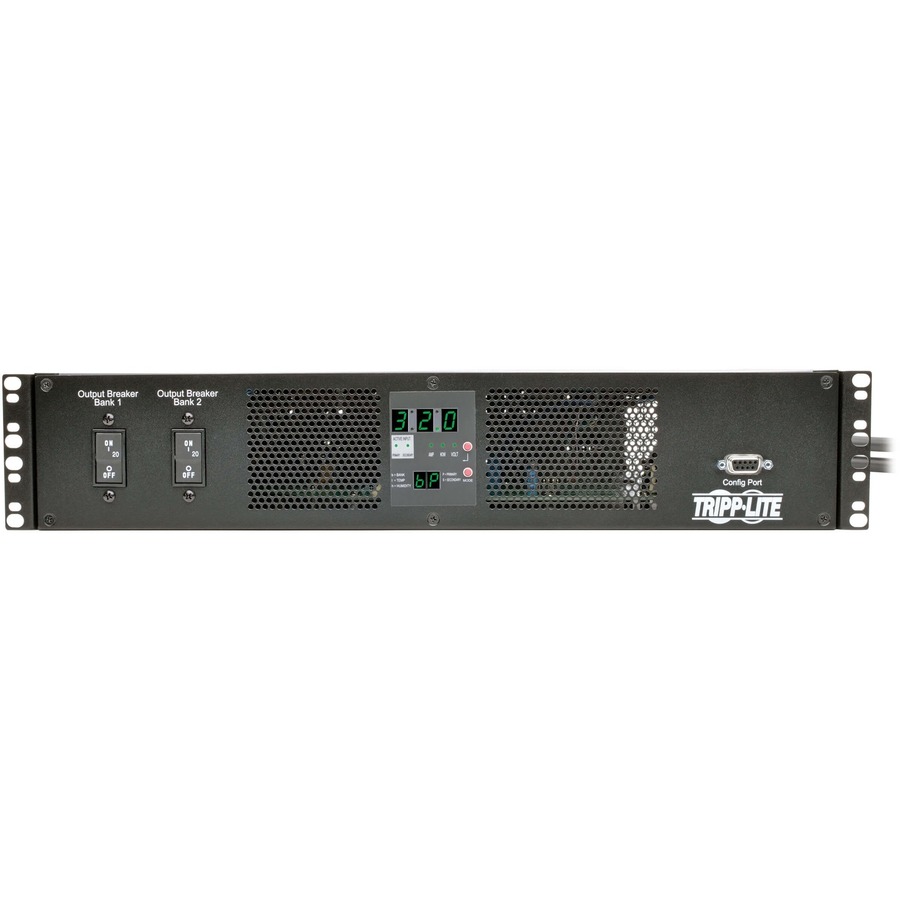

Tripp Lite PDUMH32HVAT PDU - IEC 60309 32A Blue (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.70 kW - 2U - Rack-mountable - TAA Compliant

Name: PDUMH32HVAT PDU
Brand: Tripp Lite
SKU: PDUMH32HVAT
Price: 2276.56 USD
Availability: OutOfStock

SKU: PDUMH32HVAT|Out of Stock

$1,234.79$2,276.56-46%

You save $1,041.77

Quantity

Free Shipping

Warranty Included

30-Day Returns

Out of Stock

Warehouse Location	Available
UPSANDBATTERY	Not Available
Total:	Not Available

Live real-time inventory is delayed by 30 minutes.

About This Product

ManufacturerTripp Lite by Eaton

Nominal Voltage230 V AC

Warranty2 Year

Product Description

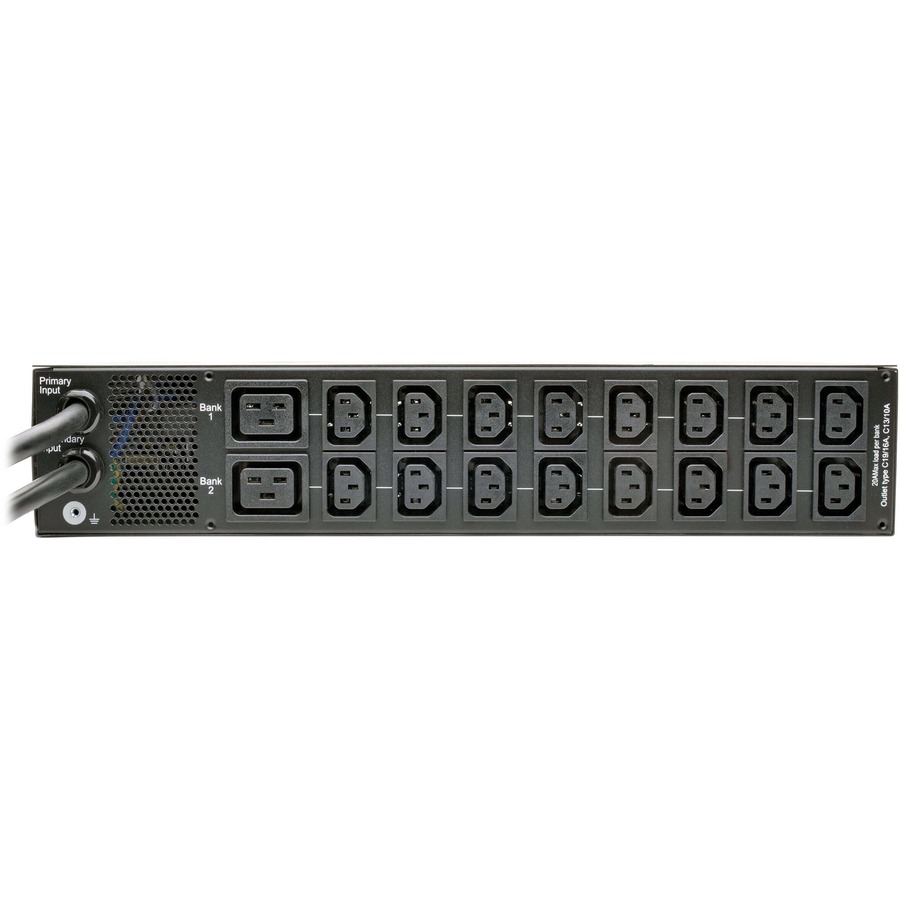

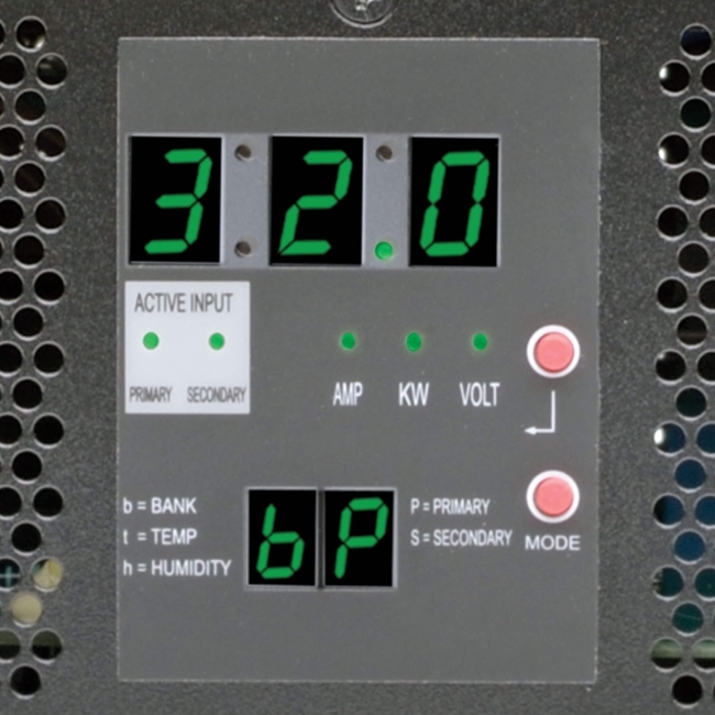

The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Metered PDU provides power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard 19-inch racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual three-meter input cords with IEC 309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Multifunction digital display with LED indicators reports output current, voltage and kW loading information.

Specifications

Manufacturer	Tripp Lite by Eaton	Brand	Tripp Lite
SKU	PDUMH32HVAT	MPN	PDUMH32HVAT
Category	PDUs	Warranty	2 Year
Manufacturer Part Number	PDUMH32HVAT	Manufacturer Website Address	http://www.tripplite.com
Brand Name	Tripp Lite	Product Model	PDUMH32HVAT
Product Name	PDUMH32HVAT PDU	Marketing Information	The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Metered PDU provides power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard 19-inch racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual three-meter input cords with IEC 309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Multifunction digital display with LED indicators reports output current, voltage and kW loading information.
Product Type	PDU

Plug/Connector Type	IEC 60309 32A Blue (2P+E)	Plug/Connector Detail	2 x IEC 60309 32A BLUE (2P+E)
Receptacle Type	IEC 60320 C13	Receptacle Detail	16 x IEC 60320 C13
Protection Type	Overload Protection

Input Voltage	230 V AC	Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC	Power Rating (Watt)	7.70 kW
Input Current	32 A

Mount Type	Rack-mountable	Rack Height	2U
Height	3.50" (88.90 mm)	Width	17.50" (444.50 mm)
Depth	12.50" (317.50 mm)	Weight (Approximate)	6.21 kg

Package Contents	PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU	Environmentally Friendly	Yes
Environmental Certification	RoHS	Country of Origin	Taiwan
TAA Compliant	Yes

Limited Warranty

2 Year
