Tripp LiteBrand New

Tripp Lite SmartOnline S3M60KX 60kVA Tower UPS - Tower - 9 Hour Recharge - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Serial Port

Name: Tripp Lite SmartOnline S3M60KX 60kVA Tower UPS - Tower - 9 Hour Recharge - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Serial Port
Brand: Tripp Lite
SKU: S3M60KX
Price: 20511.18 USD
Availability: OutOfStock

SKU: S3M60KX|Out of Stock

$20,511.18

Quantity

Free Shipping

Warranty Included

30-Day Returns

Out of Stock

Warehouse Location	Available	Incoming
All Warehouses	—	—
Total:	0	—

Live real-time inventory is delayed by 30 minutes.

About This Product

CategoryPower Equipment / UPS / Industrial UPS

BrandTripp Lite

ConditionBrand New

MPNS3M60KX

Warranty2 Year

Product Description

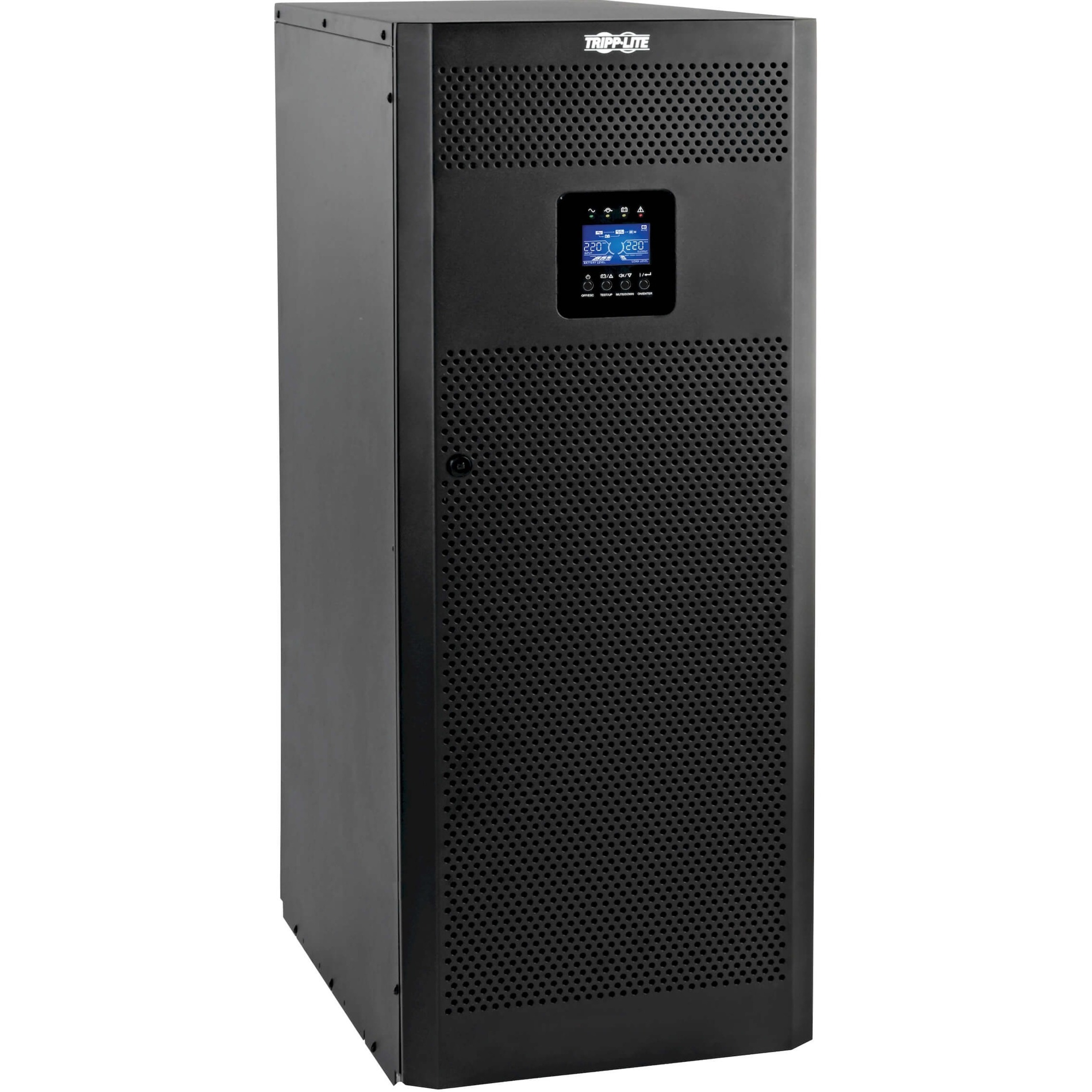

Tripp Lite SmartOnline S3M60KX 60kVA Tower UPS

Product Details

ManufacturerTripp Lite by Eaton

Manufacturer Part NumberS3M60KX

Manufacturer Website Addresshttp://www.tripplite.com

Brand NameTripp Lite

Product LineSmartOnline

Product SeriesS3MX

Product ModelS3M60KX

Product NameSmartOnline S3M60KX 60kVA Tower UPS

Product TypeDelta Conversion Online UPS

Overview

Battery Backup and VFI Operation Protect Critical Loads
The SmartOnline® S3M60KX IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 60kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.
Best-in-Class Footprint for Easy Integration into Your Network Application
This on-line double-conversion UPS system has a very small footprint of just 0.28 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.
Efficient Operation and Design Reduces Cost of Ownership
This IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.
External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M60KX uses external scalable battery cabinets, such as BP480V40, BP480V65 and BP480V100 (sold separately), to provide up to three hours of backup support in case of a power failure. The UPS system automatically restarts after a lengthy power outage.
Intuitive LCD Interface Delivers Important Performance Information at a Glance
The interactive front-panel LCD interface displays critical operating conditions and diagnostic data, including operating mode, input/output voltage, load, battery voltage, backup runtime and fault conditions. Four LEDs provide information about line, bypass, battery and fault status.
Network Management Card Offers Remote Monitoring and Control
The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.
Parallel Capability Provides Additional Capacity and Redundancy up to 3 Units
Connect up to three S3M60KX units in parallel using separate/shared battery cabinets for increased capacity.
Product Features:Manufacturer:Tripp Lite by EatonManufacturer Part Number:S3M60KXManufacturer Website Address:http://www.tripplite.comBrand Name:Tripp LiteProduct Line:SmartOnlineProduct Series:S3MXProduct Model:S3M60KXProduct Name:SmartOnline S3M60KX 60kVA Tower UPS
Marketing Information: Product Type:Delta Conversion Online UPS

Specifications

Manufacturer	Tripp Lite by Eaton	Brand	Tripp Lite
SKU	S3M60KX	MPN	S3M60KX
Category	Industrial UPS	Condition	Brand New
Warranty	2 Year	Product Line	SmartOnline
Country of Origin	China

Capacity	40-80	UPS Type	Delta Conversion Online UPS
Input Voltage	200-240	Output Voltage	230

Network Management	SSH,Telnet,SNMP Manageable	Serial Ports	Yes
Alarms	Bypass Mode,Battery Mode,Fault Mode,Overload	LED Indicators	<b>interactive front-panel LCD interface:</b><br /> <ul> <li>Operating mode</li> <li>Input / output voltage & frequency</li> <li>Load</li> <li>Battery voltage</li> <li>Backup runtime</li> <li>Fault conditions</li> <li>alarm status</li> <li>battery charge</li> <li>Estimated runtime</li> </ul> <b>LEDs:</b><br /> <ul> <li>Line</li> <li>Bypass</li> <li>Battery</li> <li>Fault</li> </ul>

Form Factor	tower	Height	39.76" (1010 mm)
Width	14.17" (360 mm)	Depth	31.10" (790 mm)
Weight	107.95 kg	Max Operating Temp	104°F (40°C)

Typical Recharge Time

Product Documents

Document	Description	Type	Actions
Product Brochure	Manufacturer product overview and highlights	PDF	Download View
User Manual	Complete product operation and setup guide	PDF	Download View

Shipping & Returns

Shipping Methods

Method	Delivery	Cost
Free Courier	3-5 business days	Free
UPS Ground	4-6 business days	$29.00
Express	1-2 business days	$49.00
Global Export	5-14 business days	$39.00

Return Policy

Policy	Details
30-Day Returns	Return any unused item within 30 days for a full refund
Free Return Shipping	We cover return shipping costs for defective items
Exchange Available	Exchange for a different model at no extra charge

Customer Reviews

No reviews yet for this product

Be the first to share your experience

Key Specifications

40-80

Capacity

Delta Conversion Online UPS

UPS Type

200-240

Input Voltage

230

Output Voltage

SSH,Telnet,SNMP Manageable

Network Management

Yes

Serial Ports

Bypass Mode,Battery Mode,Fault Mode,Overload

Alarms

interactive front-panel LCD interface: <ul> <li>Operating mode</li> <li>Input / output voltage & frequency</li> <li>Load</li> <li>Battery voltage</li> <li>Backup runtime</li> <li>Fault conditions</li> <li>alarm status</li> <li>battery charge</li> <li>Estimated runtime</li> </ul> LEDs: <ul> <li>Line</li> <li>Bypass</li> <li>Battery</li> <li>Fault</li> </ul>

LED Indicators
