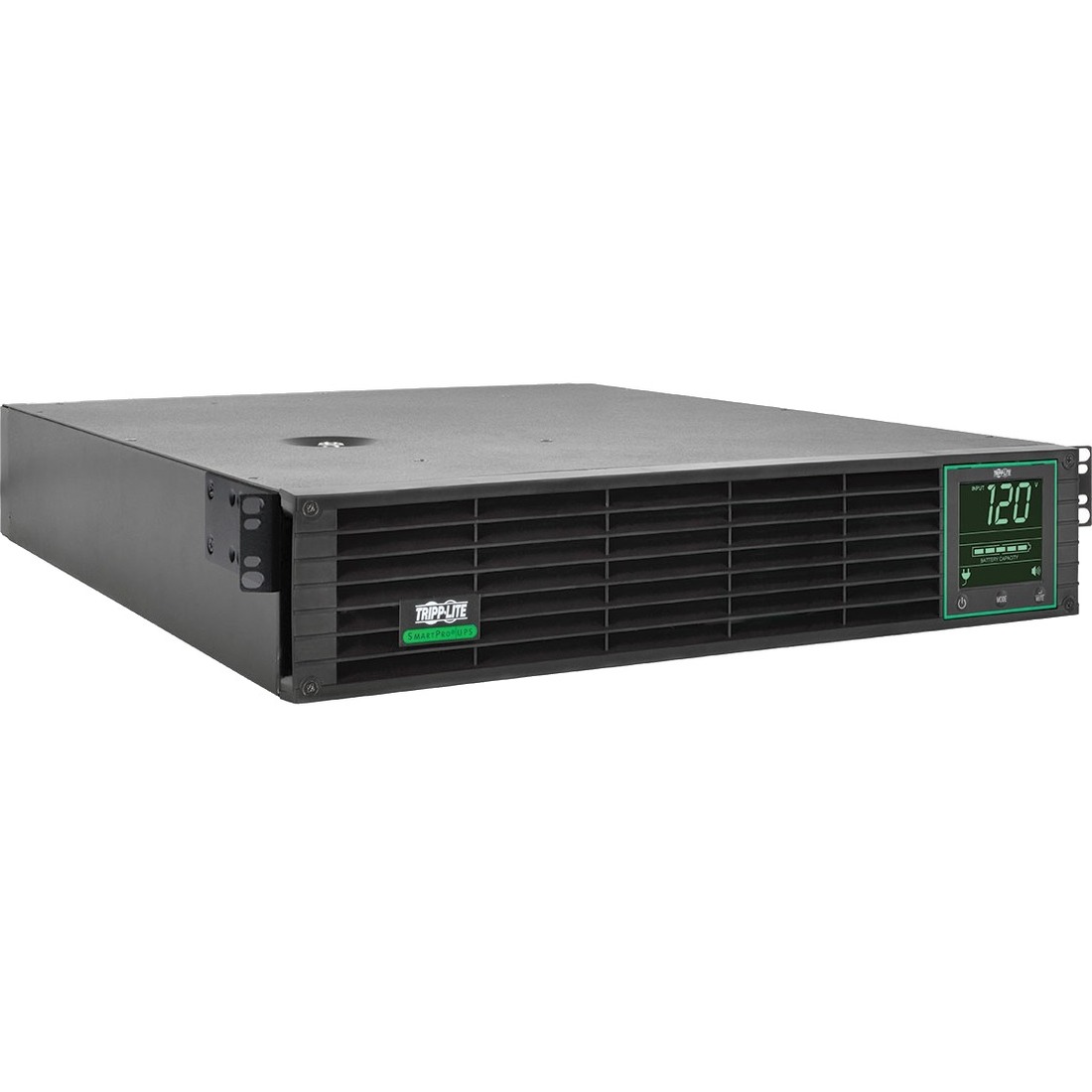

Tripp Lite SmartPro SMART2200RM2UL 2200VA UPS - 2U Rack-mountable - 1.40 Hour Recharge - 5.10 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Serial Port - USB - 4 x NEMA 5-15/20R, 4 x NEMA 5-20

Name: SmartPro SMART2200RM2UL 2200VA UPS
Brand: Tripp Lite
SKU: SMART2200RM2UL
Price: 4812.64 USD
Availability: OutOfStock

SKU: SMART2200RM2UL|Out of Stock

$2,610.37$4,812.64-46%

You save $2,202.27

Quantity

Free Shipping

Warranty Included

30-Day Returns

Out of Stock

Warehouse Location	Available
UPSANDBATTERY	Not Available
Total:	Not Available

Live real-time inventory is delayed by 30 minutes.

About This Product

ManufacturerTripp Lite by Eaton

Nominal Voltage120 V AC

Warranty5 Year

Product Description

Protects Mission-Critical Rack-Mounted Equipment

Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
Audible alarm signals loss of utility power, overload and low battery

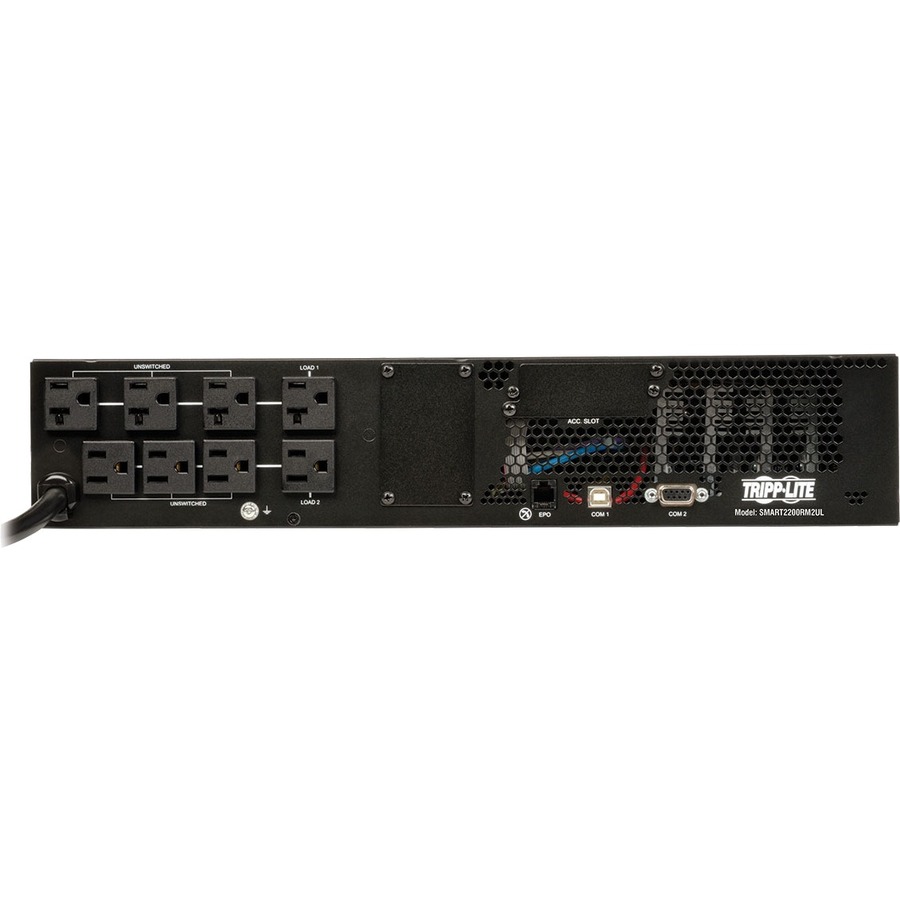

4 NEMA 5-15R & 4 NEMA 5-15/20R outlets

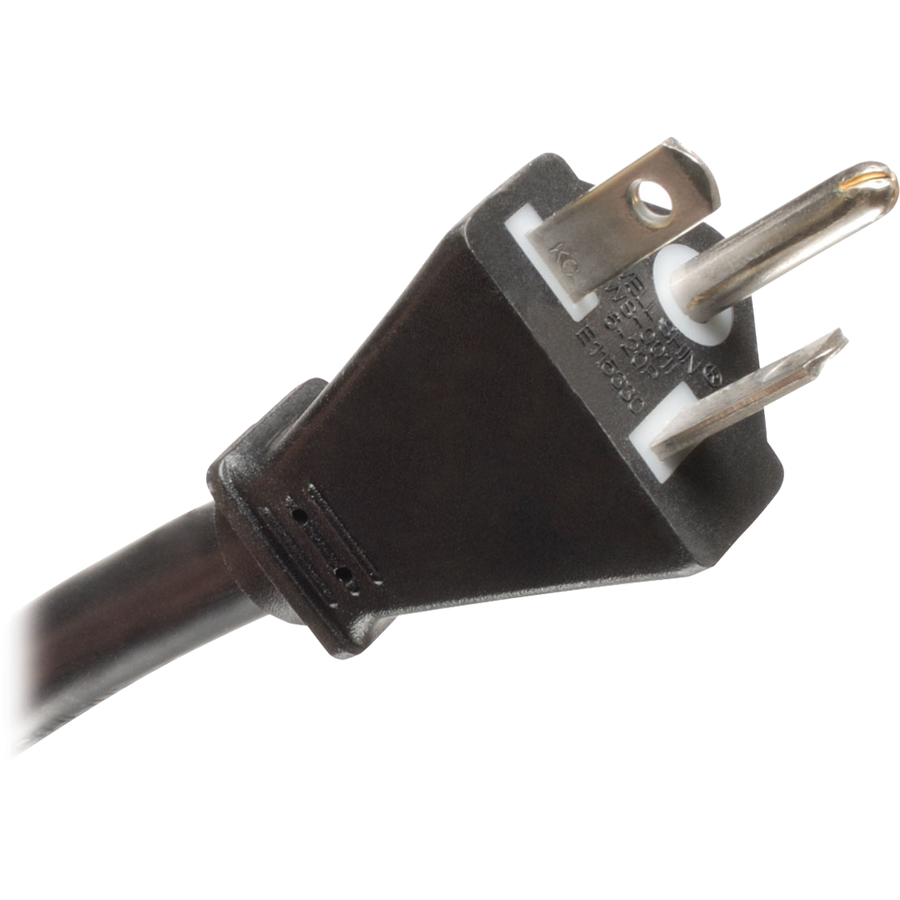

10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
570-joule surge suppression rating
0.9 power factor rating
97% line-mode efficiency rating saves money in energy costs

Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery

More than 2x the service life
Up to 3x more charge/discharge cycles
Recharges to 100% capacity in less than 2 hr.
Weighs 60% less, reducing overall UPS weight
Supports half load up to 11.7 min. and full load up to 5.1 min.

2 Load Banks with Switchable Outlets

Can control 2 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

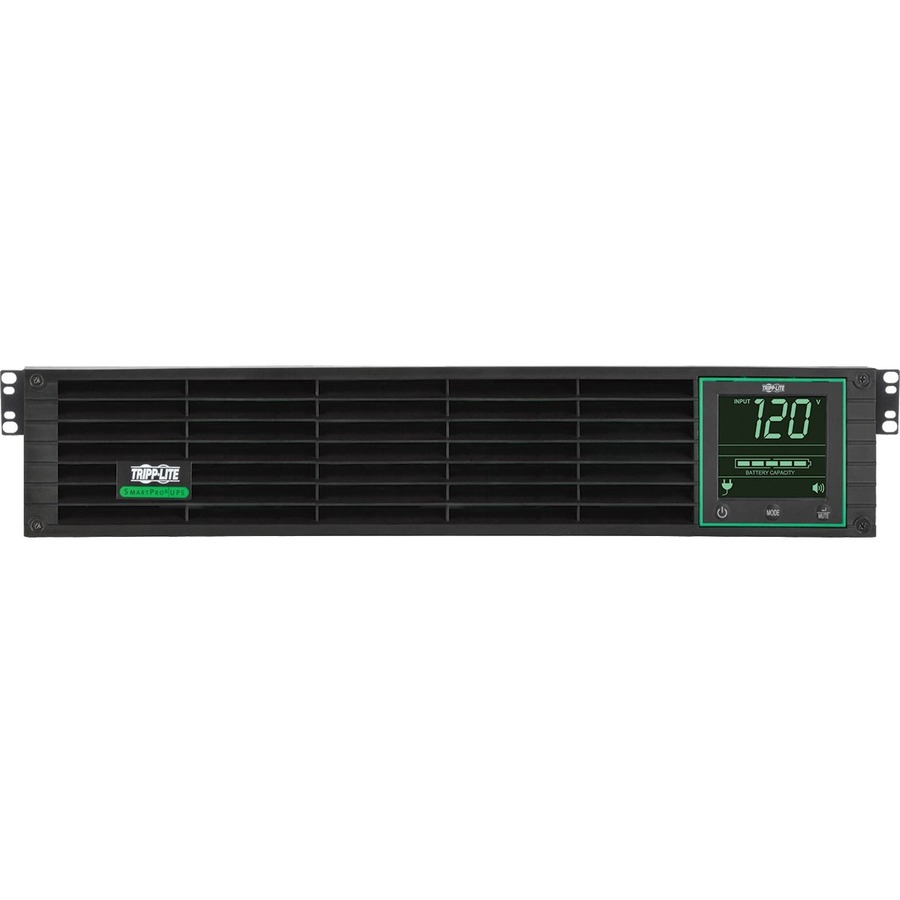

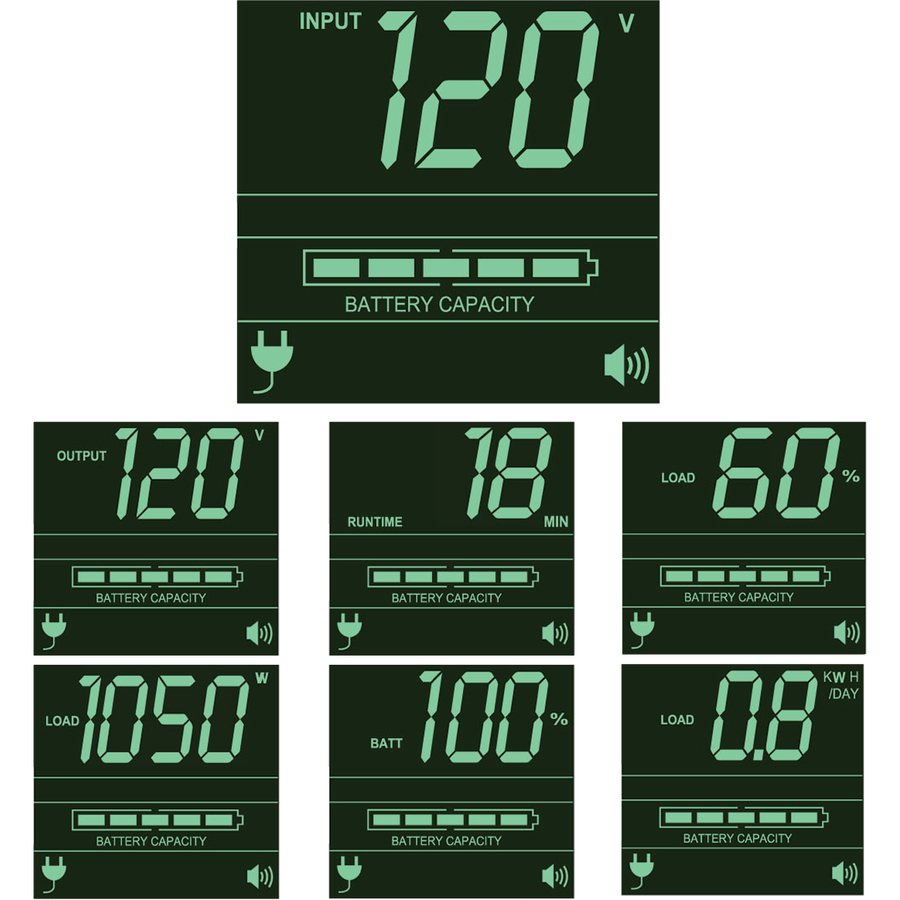

Interactive LCD Screen

Front-panel LCD with detailed UPS and site power status and operating data
Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

Communications Ports

USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
EPO port supports emergency shutdown in large facilities

Versatile Installation Options

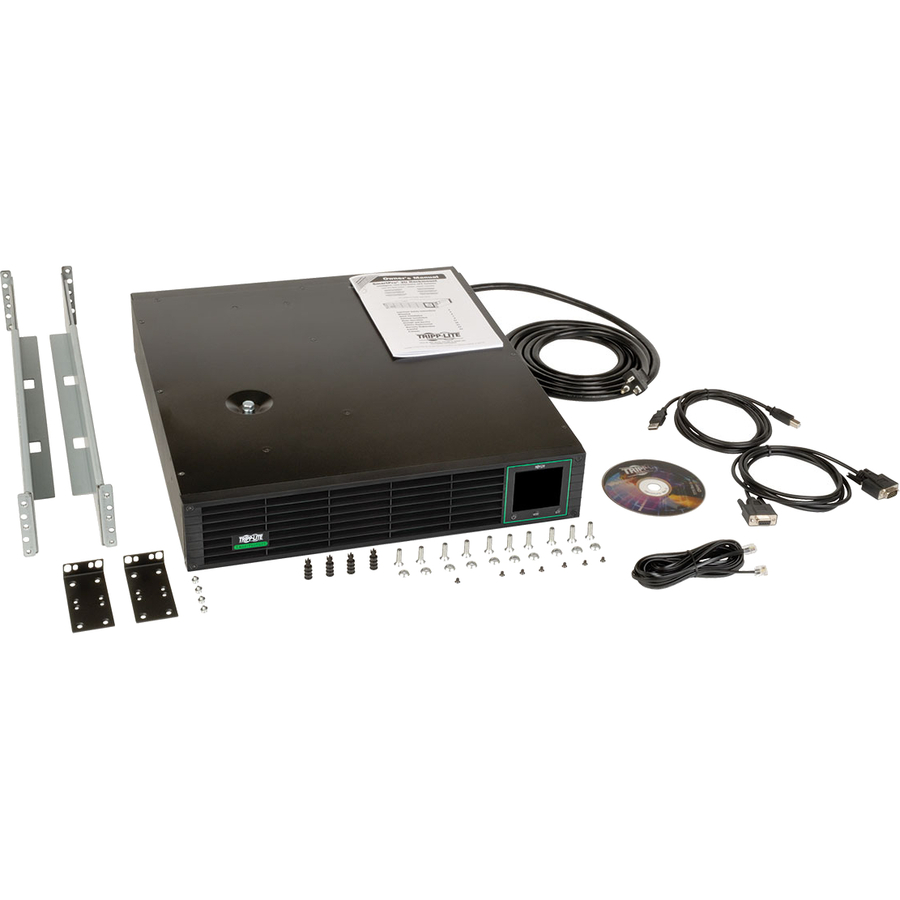

Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
Mounts in upright tower position with optional 2-9USTAND accessory

Backed by Tripp Lite's Ultimate Lifetime Insurance

$250,000 Ultimate Lifetime Insurance covers any connected components

Specifications

Manufacturer	Tripp Lite by Eaton	Brand	Tripp Lite
SKU	SMART2200RM2UL	MPN	SMART2200RM2UL
Category	General Purpose UPS	Warranty	5 Year
Manufacturer Part Number	SMART2200RM2UL	Manufacturer Website Address	http://www.tripplite.com
Brand Name	Tripp Lite	Product Line	SmartPro
Product Model	SMART2200RM2UL	Product Name	SmartPro SMART2200RM2UL 2200VA UPS

Product Type

Line-interactive UPS

Plug/Connector Type	NEMA 5-20P	Receptacle Type	NEMA 5-15/20R
Receptacle Detail	4 x NEMA 5-15/20R	Transfer Time	5 ms
EMI/RFI Noise Filter	Yes	Phase	Single Phase
Application/Usage	Server

Load Capacity	2.20 kVA/1.92 kW	Input Voltage	120 V AC
Output Voltage	110 V AC	Waveform Type	Pure Sine Wave
Surge Energy Rating	570 J

Alarm

UPS StartUp

Serial Port

Yes

USB

Yes

Backup/Run Time (Full Load)	5.10 Minute	Backup/Run Time (Half Load)	11.70 Minute
Hot Swappable	Yes	Typical Battery Recharge Time	1.40 Hour

Maximum Operating Temperature	122°F (50°C)	Sound Emission (A-Weighted)	45 dB(A)
Thermal Dissipation	1343 BTU/h

Height	3.43" (87 mm)	Width	19.45" (494 mm)
Depth	17.32" (440 mm)	Rack Height	2U
Form Factor	Rack-mountable	Weight (Approximate)	18.95 kg

Package Contents	SmartPro SMART2200RM2UL 2200VA UPS	Environmentally Friendly	Yes
Environmental Certification	RoHS	Country of Origin	United States

Limited Warranty

5 Year

Product Documents

Document	Description	Type	Actions
User Manual	Complete product operation and setup guide	PDF
Product Brochure	Manufacturer product overview and highlights	PDF
