You save $1,377.51
| Warehouse Location | Available |
|---|---|
UPSANDBATTERY | Not Available |
| Total: | Not Available |
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | SMART2200RMXL2U | MPN | SMART2200RMXL2U |
| Category | General Purpose UPS | Warranty | 3 Year |
| Manufacturer Part Number | SMART2200RMXL2U | Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite | Product Line | SmartPro |

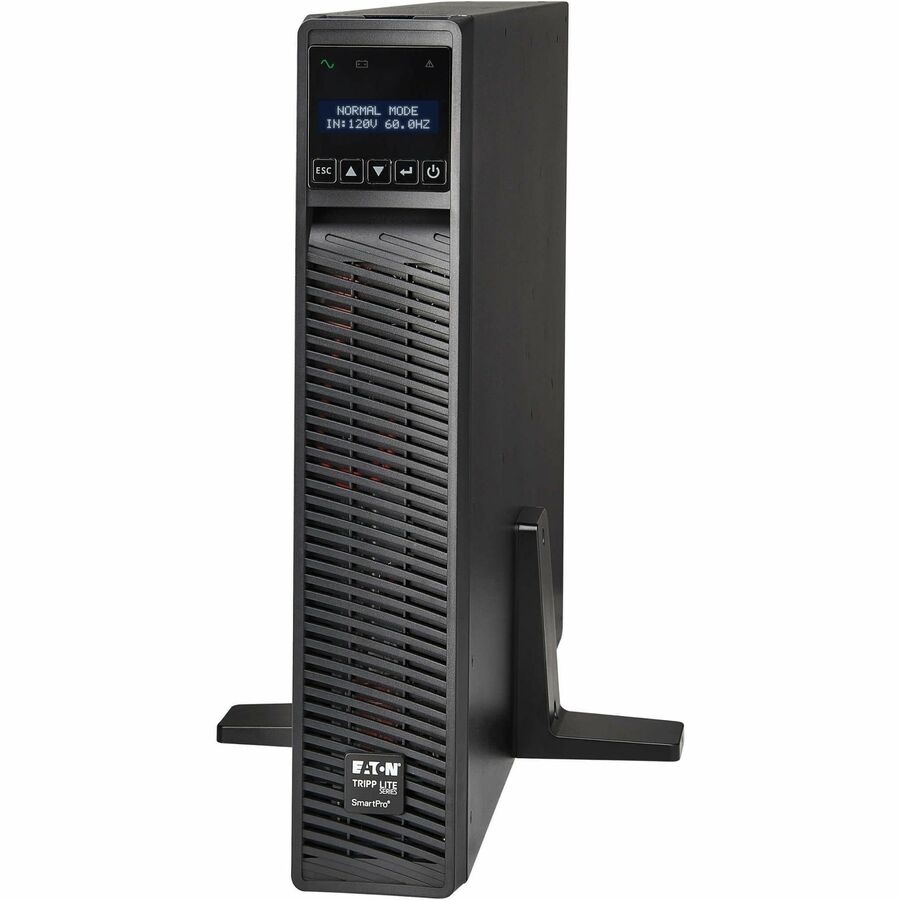

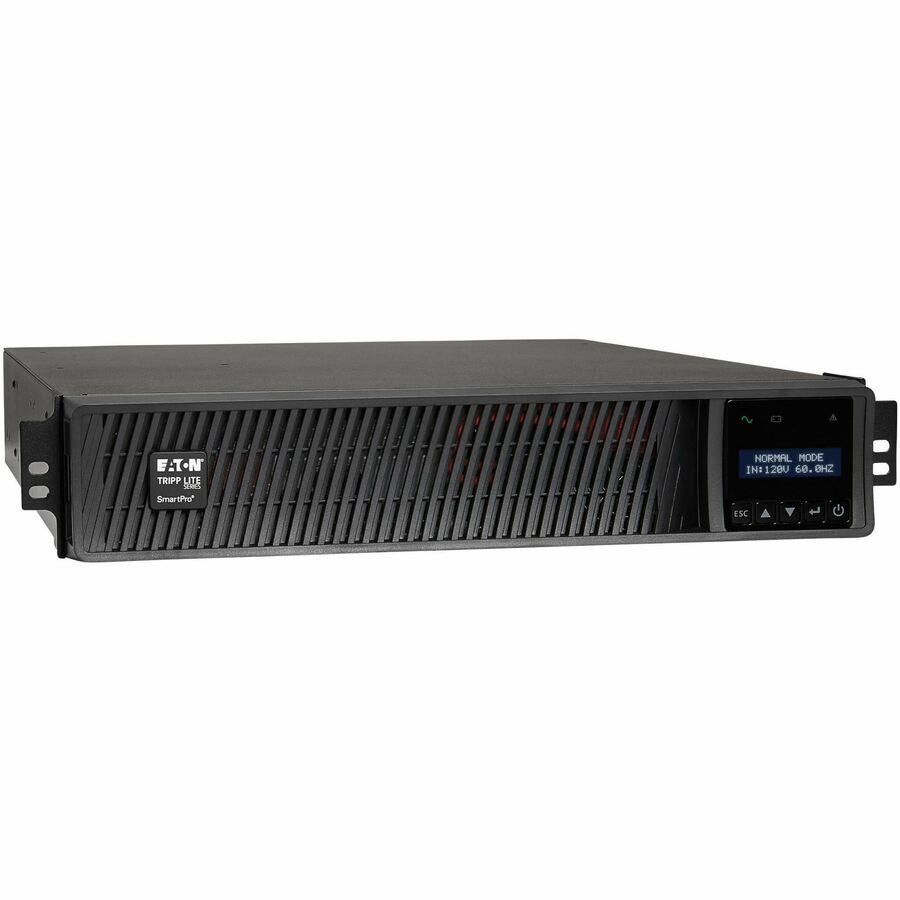

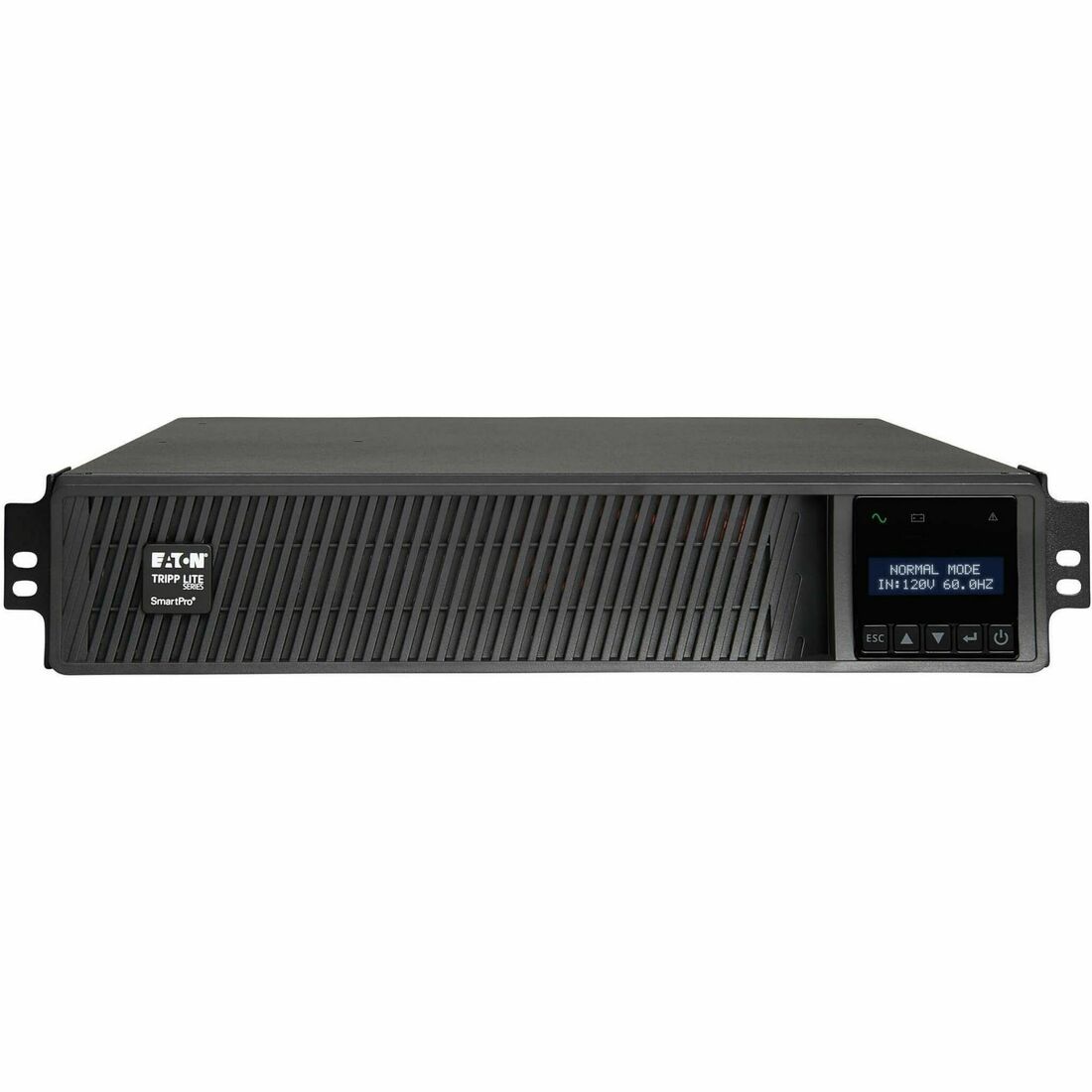

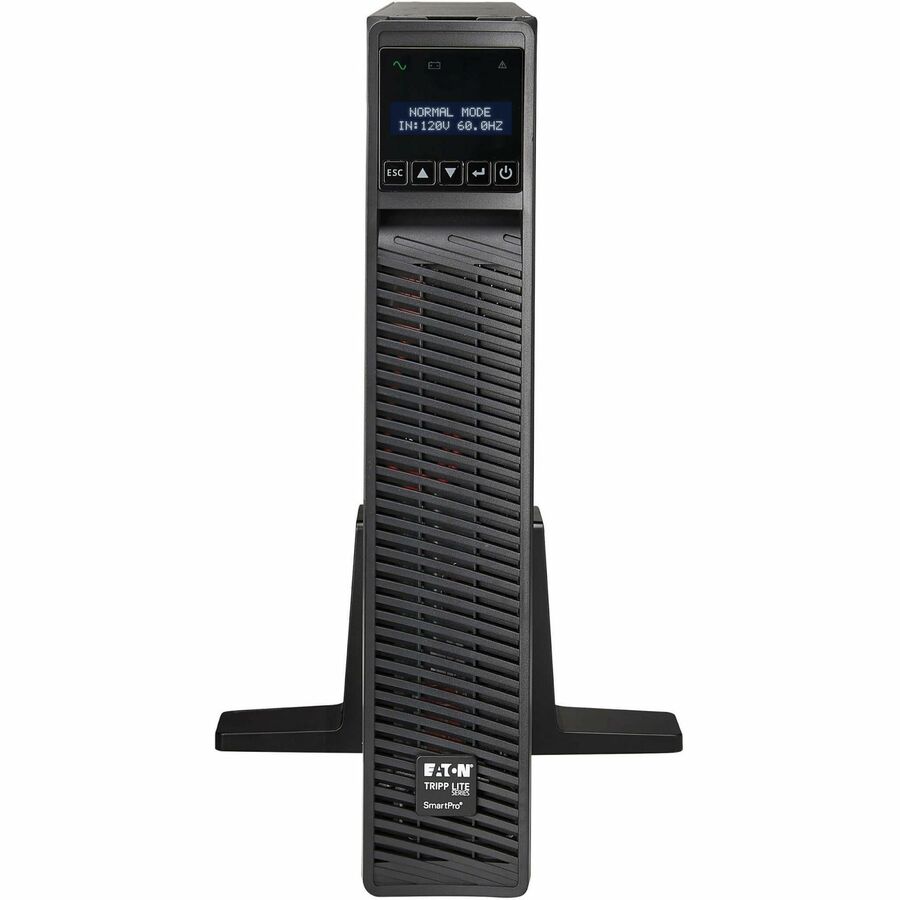

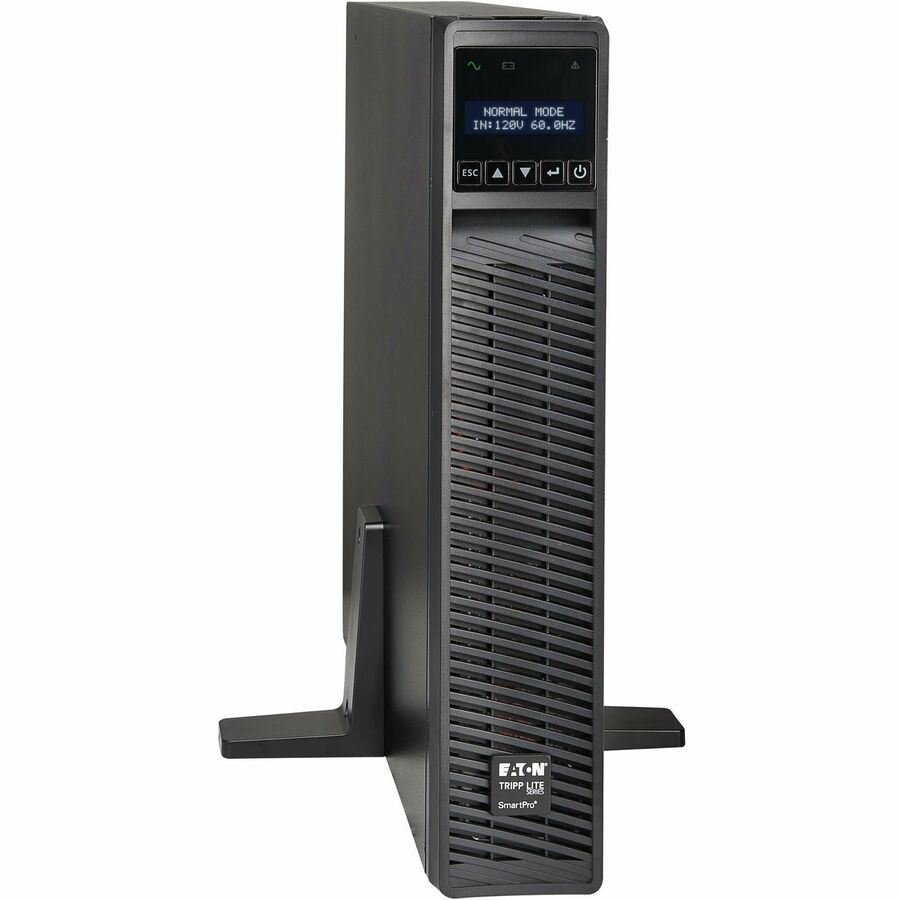

| Product Name | SMART2200RMXL2U UPS System | Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for optional Network Management Card. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. |
| Packaged Quantity | 1 Each | Product Type | Line-interactive UPS |

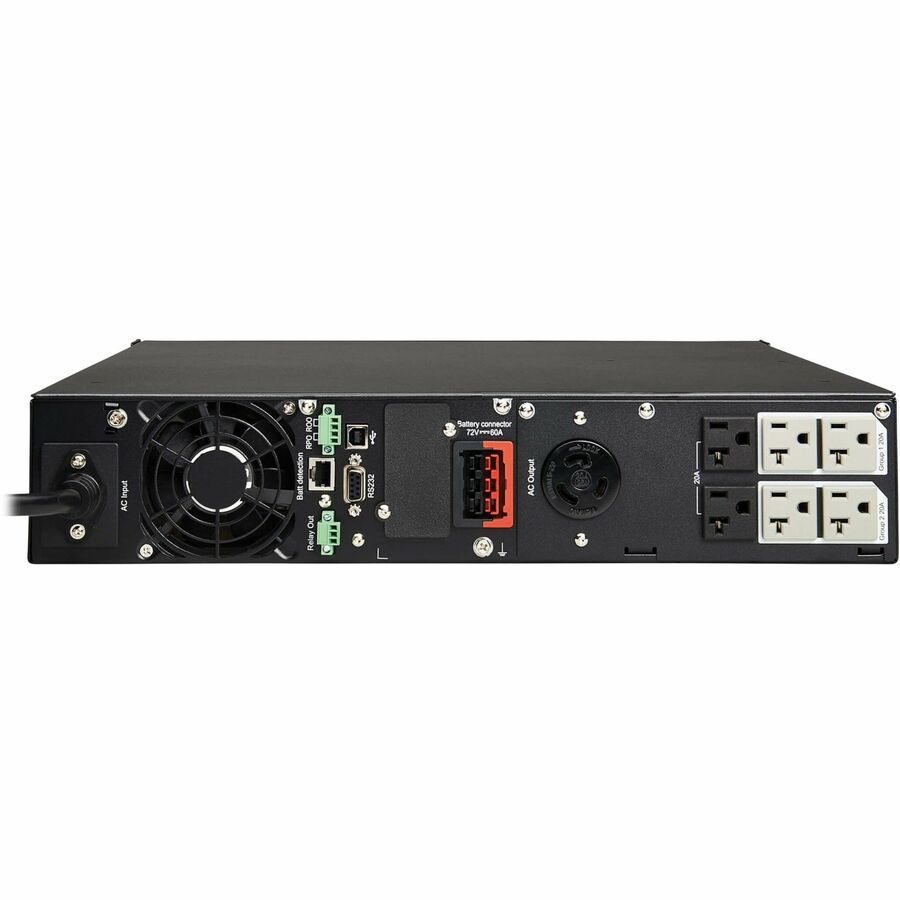

| Plug/Connector Type | NEMA 5-20P | Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R | Transfer Time | 4 ms |
| Load Capacity | 2.20 kVA/1.92 kW | Input Voltage | 120 V AC |
| Output Voltage | 120 V AC | Waveform Type | Sine Wave |
| Network Management | SNMP Manageable | Alarm | On Battery |
| 5 Front Panel Leds | Green Power Led |
| Serial Port | Yes | USB | Yes |
| Backup/Run Time (Full Load) | 4.50 Minute | Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes | Typical Battery Recharge Time | 4.50 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Height | 3.50" (88.90 mm) | Width | 17.50" (444.50 mm) |
| Depth | 19" (482.60 mm) | Rack Height | 2U |
| Weight (Approximate) | 29.03 kg |
| Package Contents | SMART2200RMXL2U UPS System | Environmentally Friendly | Yes |
| Environmental Certification | RoHS | Country of Origin | China |
| Limited Warranty | 3 Year |
| Document | Description | Type | Actions |
|---|---|---|---|
| User Manual | Complete product operation and setup guide | ||
| Product Brochure | Manufacturer product overview and highlights |
