Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | SMART2200VS | MPN | SMART2200VS |
| Category | General Purpose UPS | Warranty | 3 Year |
| Manufacturer Part Number | SMART2200VS | Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite | Product Line | SmartPro |
| Product Name | SmartPro SMART2200VS UPS |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-20P | Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 7 x NEMA 5-15R | Transfer Time | 4 ms |
| Load Capacity | 2.20 kVA/1.60 kW | Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable | Alarm | On Battery |

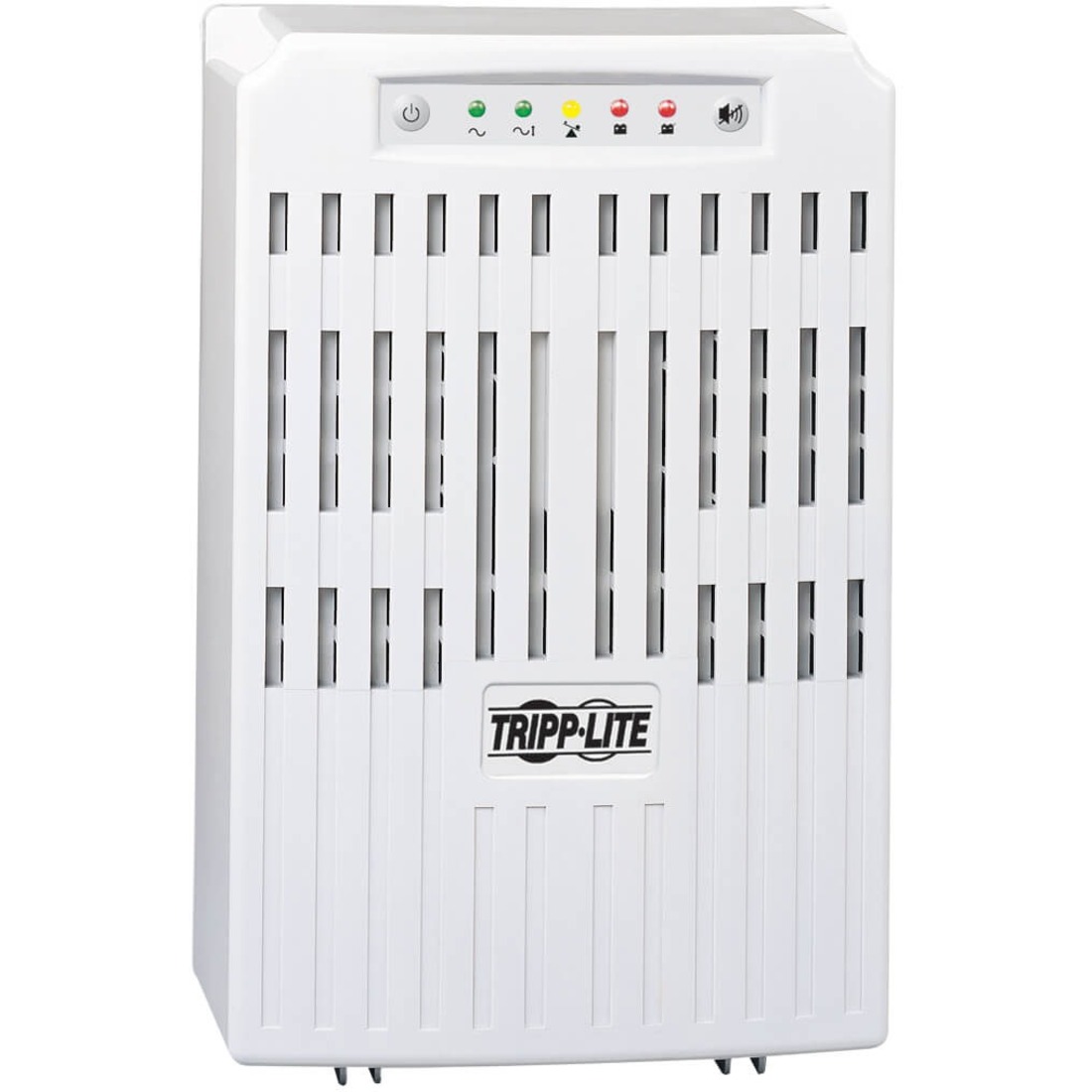

| Status Indicators | Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information |
| USB | Yes |
| Battery Chemistry | Lead Acid | Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute | Battery Life | 6 Year |
| Hot Swappable | Yes | Typical Battery Recharge Time | 4 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Height | 14.25" (361.95 mm) | Width | 9.25" (234.95 mm) |
| Depth | 12" (304.80 mm) | Form Factor | Tower |
| Weight (Approximate) | 23.77 kg |
| Package Contents | SmartPro SMART2200VS UPS | Country of Origin | China |
| Limited Warranty | 3 Year |
| Document | Description | Type | Actions |
|---|---|---|---|
| User Manual | Complete product operation and setup guide | ||
| Product Brochure | Manufacturer product overview and highlights |
