Brand New, RefurbishedYou save $2,903.61
| Warehouse Location | Available |
|---|---|
UPSANDBATTERY | 7 |
| Total: | 7 |
5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98% line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage conditions to maintain regulated 230v output over an input range of 170-282V. Supports hardwire input. Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support communications via USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | SMX5000XLRT3U | MPN | SMX5000XLRT3U |
| Category | General Purpose UPS | Condition | Brand New, Refurbished |
| Warranty | 2 Year | Manufacturer Part Number | SMX5000XLRT3U |
| Manufacturer Website Address | http://www.tripplite.com | Brand Name | Tripp Lite |
| Product Line | SmartPro | Product Name | SMX5000XLRT3U UPS System |
| Marketing Information | 5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98% line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage conditions to maintain regulated 230v output over an input range of 170-282V. Supports hardwire input. Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support communications via USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. | Product Type | Line-interactive UPS |

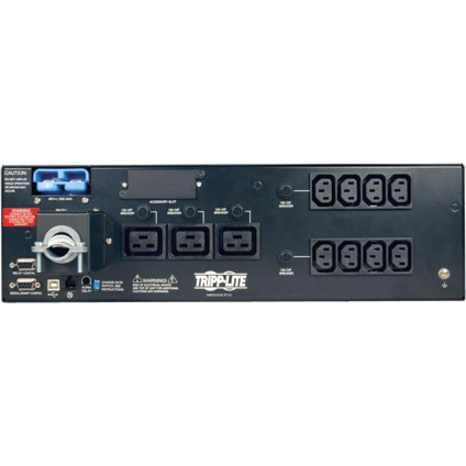

| Plug/Connector Type | Hardwired | Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 3 x IEC 60320 C19 | Dataline Protection | RJ-11 |
| Transfer Time | 4 ms |
| Load Capacity | 5 kVA/3.75 kW | Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes | USB | Yes |
| Backup/Run Time (Full Load) | 8.50 Minute | Backup/Run Time (Half Load) | 20 Minute |
| Hot Swappable | Yes | Typical Battery Recharge Time | 4 Hour |
| Height | 5.20" (132.08 mm) | Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) | Rack Height | 3U |
| Form Factor | Rack/Tower | Weight (Approximate) | 64.86 kg |
| Package Contents | SMX5000XLRT3U UPS System | Software Included | PowerAlert Software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
| Document | Description | Type | Actions |
|---|---|---|---|
| Product Brochure | Manufacturer product overview and highlights |
