12,000 BTU Cooling Capacity Protects Your Equipment and Prevents Expensive Downtime This SmartRack® precision air conditioning system delivers 3.5kW (12,000 BTU) of cooling to your rack equipment to help prevent sudden shutdowns, malfunctions and other failures caused by overheating or fluctuating temperatures. It is ideal for tight-fitting edge micro data centers and other mission-critical IT applications, including retail and commercial outlets (storefronts and branch offices), light industrial environments (factories and warehouses) and research/development locations (laboratories and workshops).
Convenient Space-Saving Design

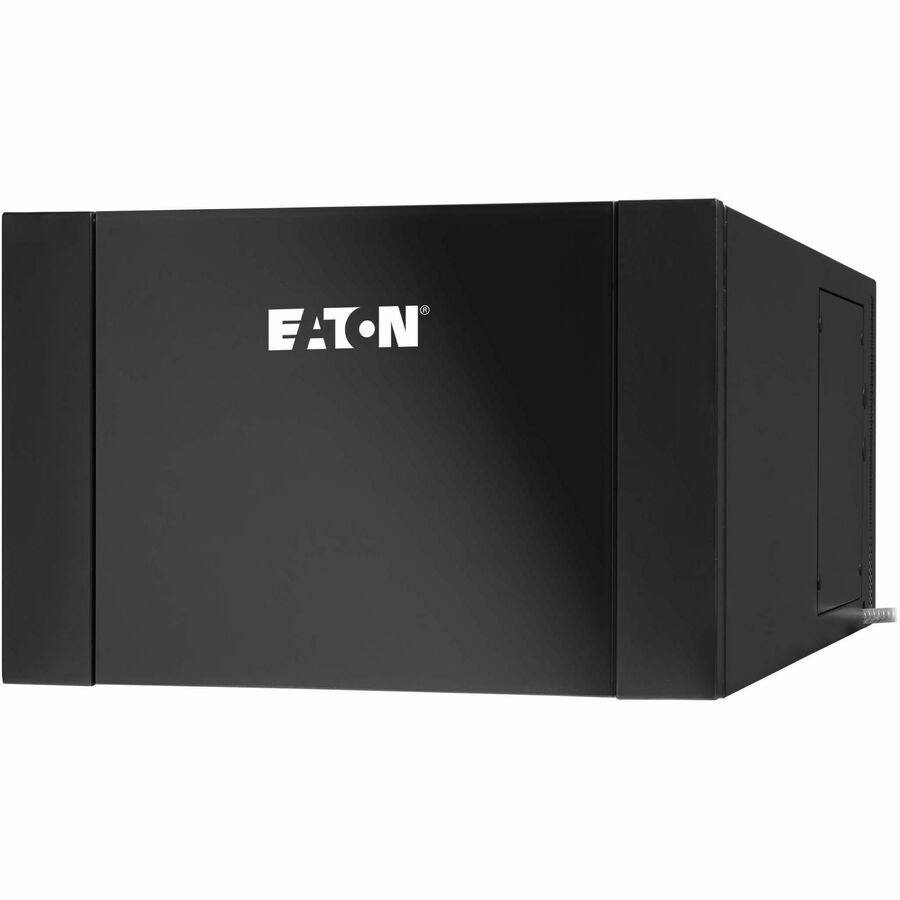

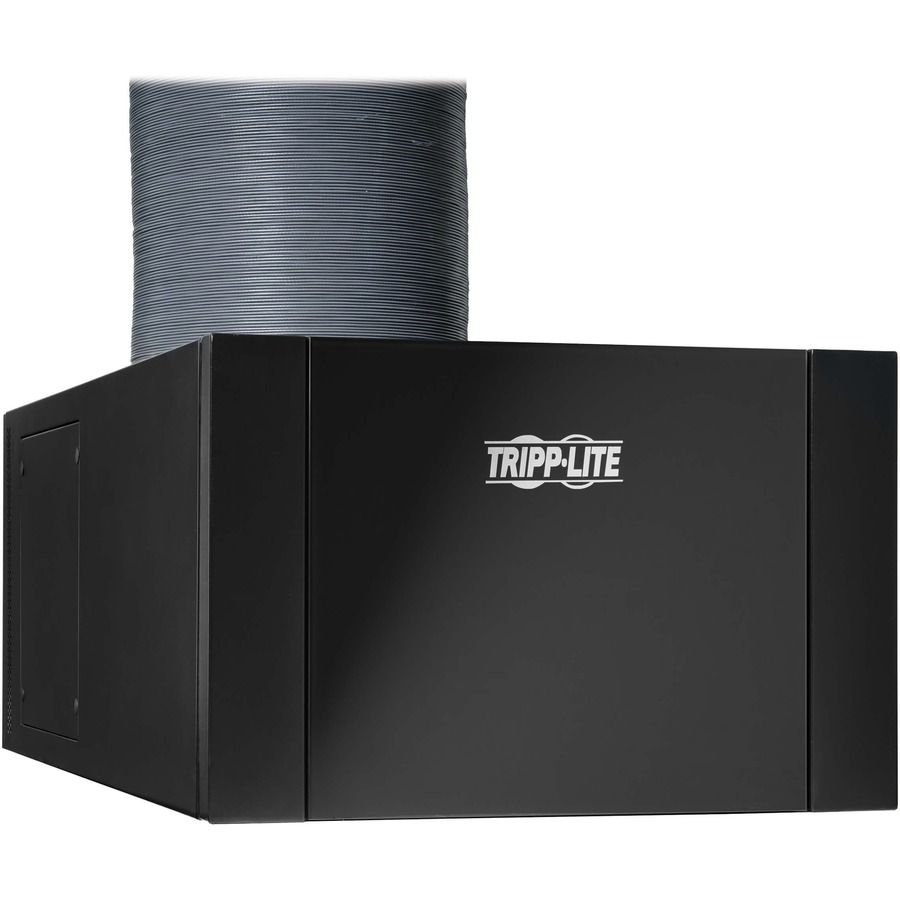

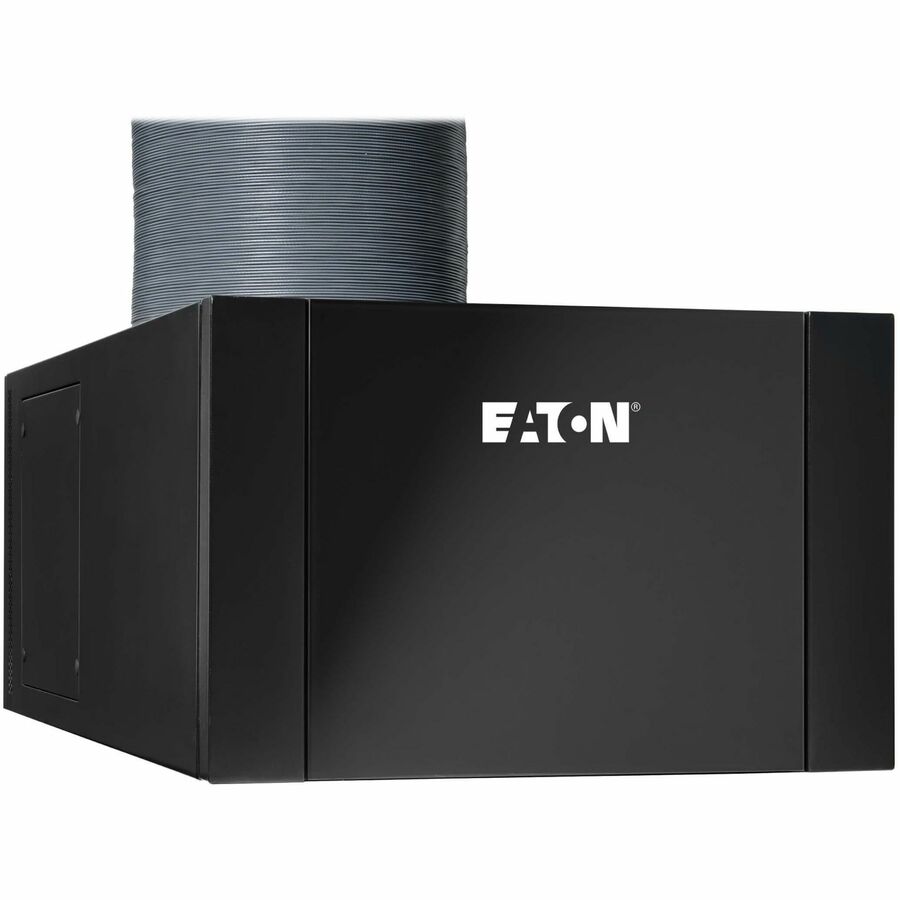

The SRCOOL3KTP micro data center cooling unit mounts on top of your rack enclosure to save valuable rack space and floor space. Top installation allows cold air to flow downward and heat to rise naturally. The self-contained close-coupled SRCOOL3KTP is designed to work in conjunction with Tripp Lite's SR25UBAC and SR33UBAC rack cabinets (sold separately), but you can use it with most SmartRack enclosures 33U or lower to deliver precision cooling to installed equipment. The low-maintenance unit requires no HVAC specialist to install.
Rack AC Unit Focuses Cold Air Where It's Most Needed

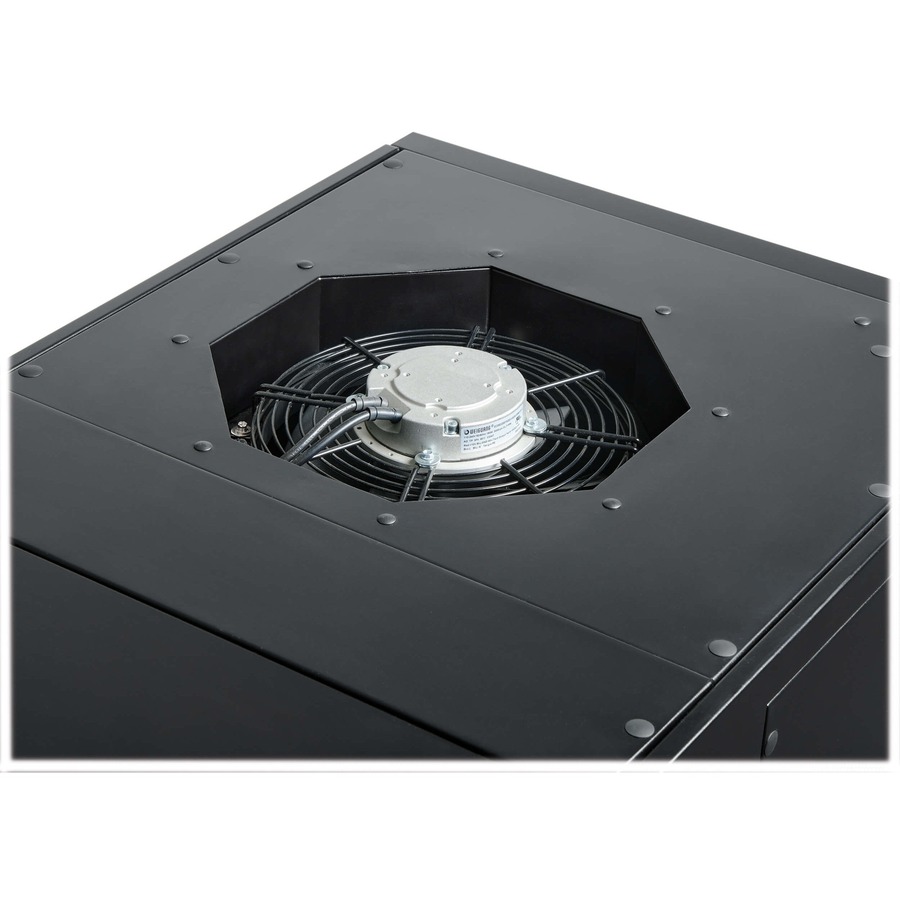

The SRCOOL3KTP uses environmentally friendly R410A refrigerant to focus cold air directly into the rack to efficiently cool equipment. Variable fan speed adjusts the cooling output to the need of the IT load to prevent on/off cycling and large temperature swings. An included color touchscreen LCD allows convenient status monitoring and diagnostics right at your fingertips.
Built-In Evaporator Expels the Condensed Water Through the Exhaust Duct

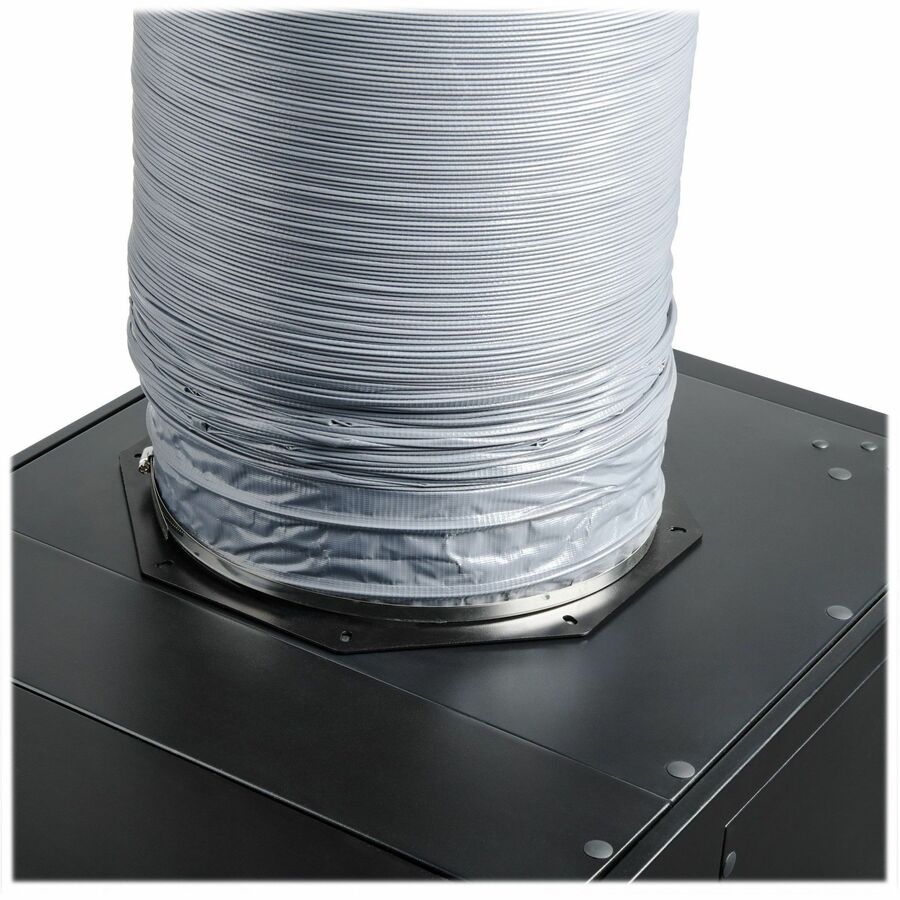

The evaporator expels water through the exhaust duct, which means no costly plumbing connections or water tanks to empty. No external condenser or refrigerant piping is required for operation. Internal leak detection automatically turns off the cooling system to prevent condensate from entering the rack.
Commercial-Grade Components for Reliable Performance
With a 100-percent duty cycle, the SRCOOL3KTP can run continuously without costly downtime. It uses copper tubing that is stronger than the aluminum tubing used in most consumer cooling units. The copper allows higher pressures and better weld joints to stand up to the constant vibration of the running compressor.
LX Platform Remote Network Interface Offers 24/7 Monitoring and Control
The built-in LX Platform's PowerAlert® Device Manager allows round-the-clock management of the SRCOOL3KTP. You can configure settings, events and actions, as well as power the unit on and off or graph temperatures over time without being on site. You can also receive configurable alarm notifications via email, SMS or SMNP. The SRCOOL3KTP will restart automatically after a power failure.
