HomeProducts500VA Panel Mount UPS

-21%

Brand New, Refurbished

APC by Schneider Electric 500VA Panel Mount UPS - Tower - 2 Hour Recharge - 8.10 Minute Stand-by - 120 V AC Input - 120 V AC Output - Sine Wave - Serial Port - 1 x Hard Wire 3-wire (H N + G)

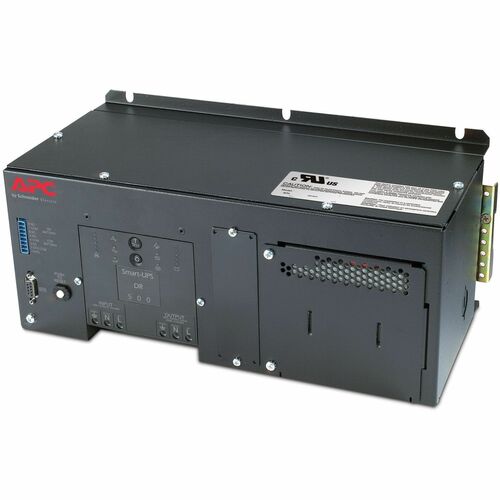

Name: 500VA Panel Mount UPS
Brand: APC
SKU: SUA500PDR-H
Price: 1300 USD
Availability: InStock

SKU: SUA500PDR-H|23 Available

$1,025.75$1,300.00-21%

You save $274.25

Quantity

Free Shipping

Warranty Included

30-Day Returns

In Stock

Warehouse Location	Available
UPSANDBATTERY	23
Total:	23

Live real-time inventory is delayed by 30 minutes.

About This Product

ManufacturerSchneider Electric SA

Battery TypeLead Acid

Nominal Voltage120 V AC

Warranty2 Year

Product Description

Industrial UPS

Proven Industrial UPS power protection for control applications and harsh environments.

Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC industrial UPS solution provides reliable protection.

Specifications

Manufacturer	Schneider Electric SA	Brand	APC
SKU	SUA500PDR-H	MPN	SUA500PDR-H
Category	General Purpose UPS	Condition	Brand New, Refurbished
Warranty	2 Year	Manufacturer Part Number	SUA500PDR-H
Manufacturer Website Address	http://www.schneider-electric.com	Brand Name	APC by Schneider Electric
Product Name	500VA Panel Mount UPS

Continuity of process control is critical across a wide range of Industrial segments

Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC industrial UPS solution provides reliable protection.

Product Type

Line-interactive UPS

Plug/Connector Type	Hard Wire 3 wire (1PH+N+G)	Receptacle Type	Hard Wire 3-wire (H N + G)
Receptacle Detail	1 x Hard Wire 3-wire (H N + G)	Number of Battery & Surge Outlets	1
Transfer Time	0 ns	Application/Usage	Industry

Load Capacity	500 VA/325 W	Input Voltage	120 V AC
Input Voltage Range	82 V AC - 144 V AC	Output Voltage	120 V AC
Input Frequency	60 Hz	Waveform Type	Sine Wave
Surge Energy Rating	540 J

Network Management

DB9 RS-232/SmartSlot

Alarm

On Battery

Status Indicators

LED Status Display:

Serial Port

Yes

EPO Port

Yes

Number of Batteries	1	Battery Characteristics	Maintenance-free, Sealed, Leak-proof
Battery Chemistry	Lead Acid	Battery Energy	432 kJ
Backup/Run Time (Full Load)	8.10 Minute	Backup/Run Time (Half Load)	24.40 Minute
Hot Swappable	Yes	Typical Battery Recharge Time	2 Hour
Replaceable Battery	Yes

Maximum Operating Elevation	9842.52 ft (3000000 mm)	Maximum Storage Elevation	49212.60 ft (15000000 mm)
Storage Temperature	23°F (-5°C) - 131°F (55°C)	Storage Relative Humidity	0% - 95%
Maximum Operating Temperature	122°F (50°C)	Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	90 BTU/h

Height	5.84" (148.34 mm)	Width	14.24" (361.70 mm)
Depth	6.72" (170.69 mm)	Form Factor	Tower
Weight (Approximate)	11.46 kg

Package Contents	500VA Panel Mount UPS	Environmentally Friendly	Yes
Environmental Certification	REACH	Country of Origin	Philippines

Limited Warranty

2 Year

Product Documents

Document	Description	Type	Actions
User Manual	Complete product operation and setup guide	PDF
