Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.
| Manufacturer | Schneider Electric SA | Brand | APC |
| SKU | SUA500PDRI-H | MPN | SUA500PDRI-H |
| Category | General Purpose UPS | Condition | Brand New, Refurbished |
| Warranty | 2 Year | Manufacturer Part Number | SUA500PDRI-H |
| Manufacturer Website Address | http://www.schneider-electric.com | Brand Name | APC by Schneider Electric |

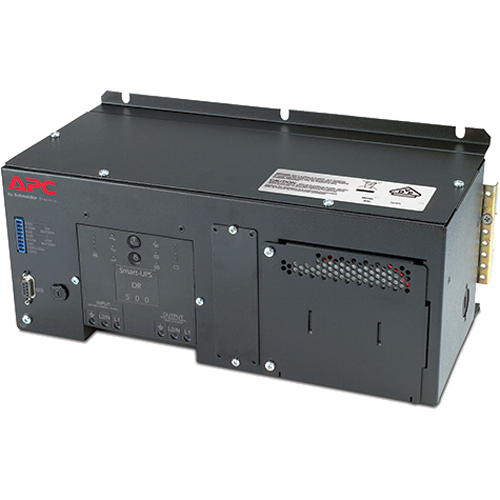

| Product Name | DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V |
| Continuity of process control is critical across a wide range of Industrial segments | Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection. | Product Type | Line-interactive UPS |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) | Receptacle Type | Hard Wire 3-wire (H N + G) |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + G) | Dataline Protection | RS-232 |
| Load Capacity | 500 VA/325 W | Input Voltage | 230 V AC |
| Output Voltage | 230 V AC | Surge Energy Rating | 540 J |
| Alarm | On Battery |
| Status Indicators | On Line |
| Serial Port | Yes |
| Number of Batteries | 1 | Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid | Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 24 Minute | Hot Swappable | Yes |
| Typical Battery Recharge Time | 2.50 Hour |
| Maximum Operating Temperature | 104°F (40°C) | Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 90 BTU/h |
| Height | 5.83" (148 mm) | Width | 14.25" (362 mm) |
| Depth | 6.73" (171 mm) | Form Factor | Wall Mountable |
| Weight (Approximate) | 12.86 kg |
| Package Contents | DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V | Software Included | PowerChute v.9.1 Business Edition Deluxe |
| Environmental Certification | RoHS |
| Limited Warranty | 2 Year |
