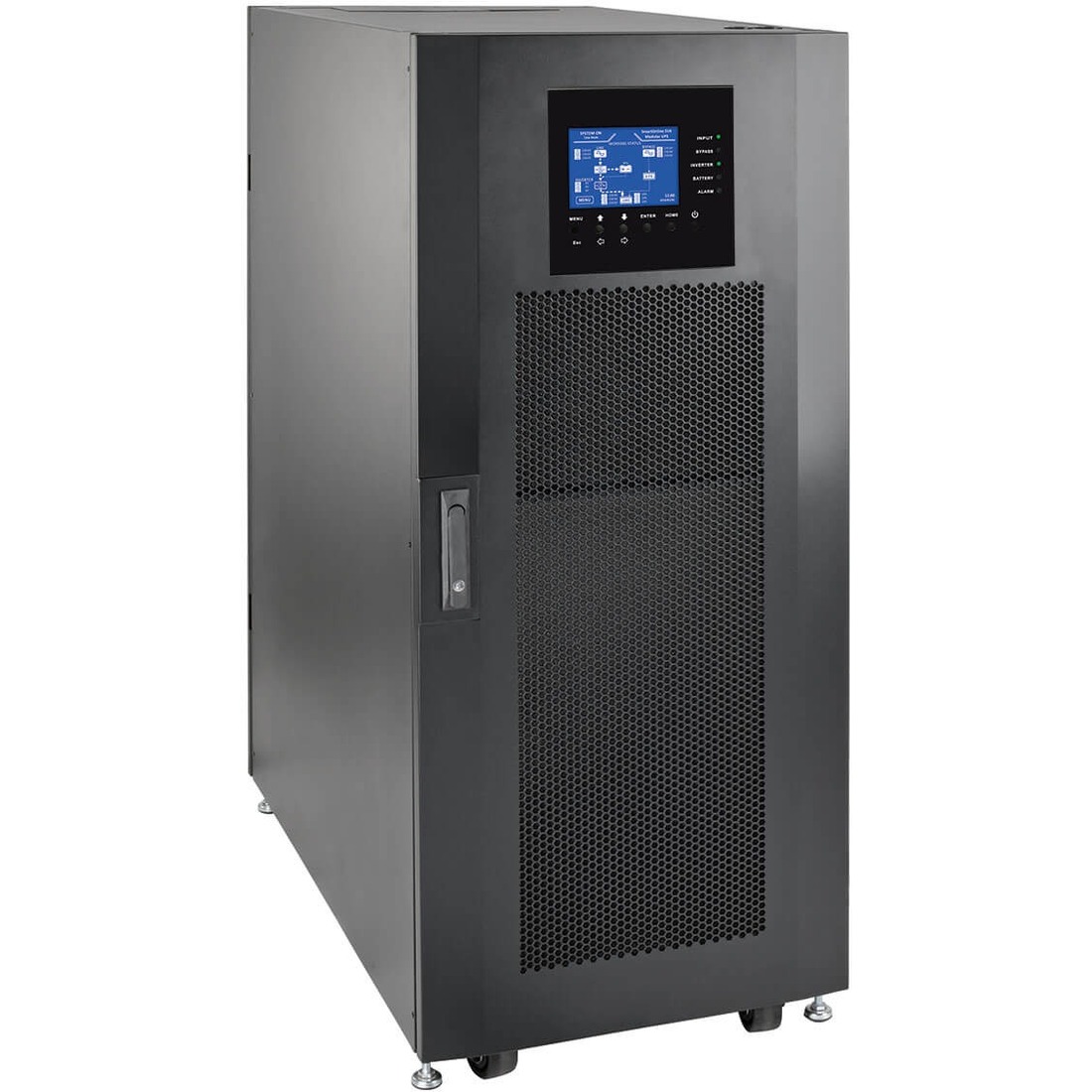

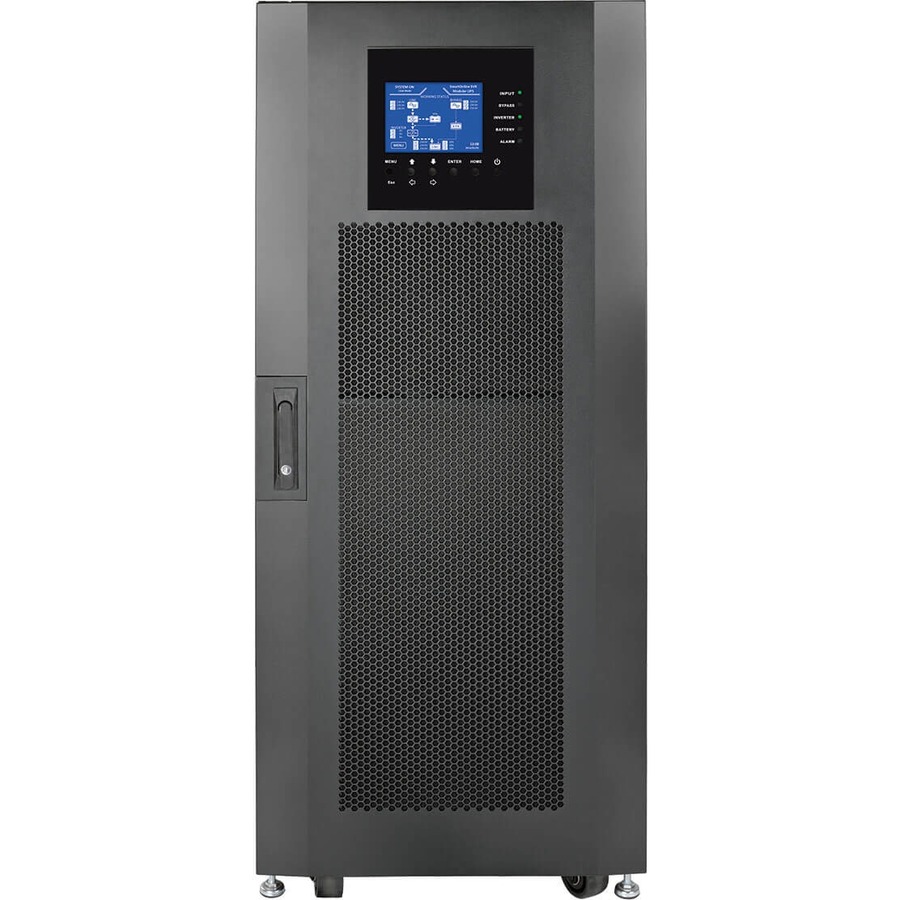

The SV60KS3P3B SmartOnline® SV Series 60kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

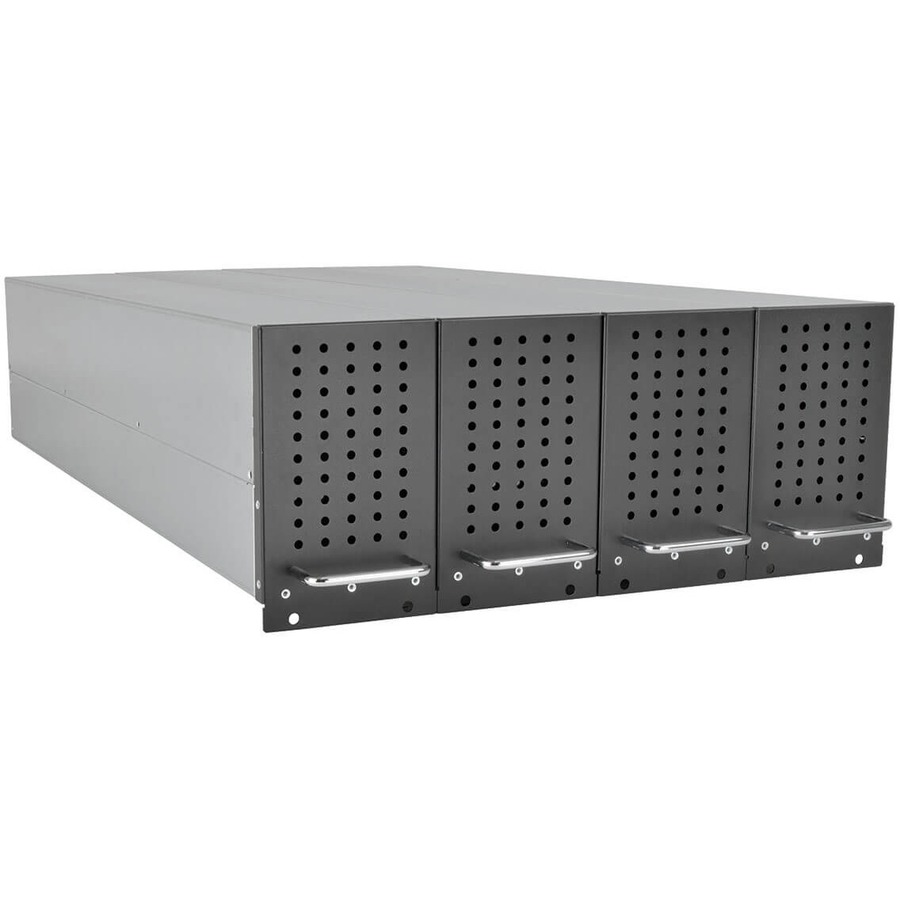

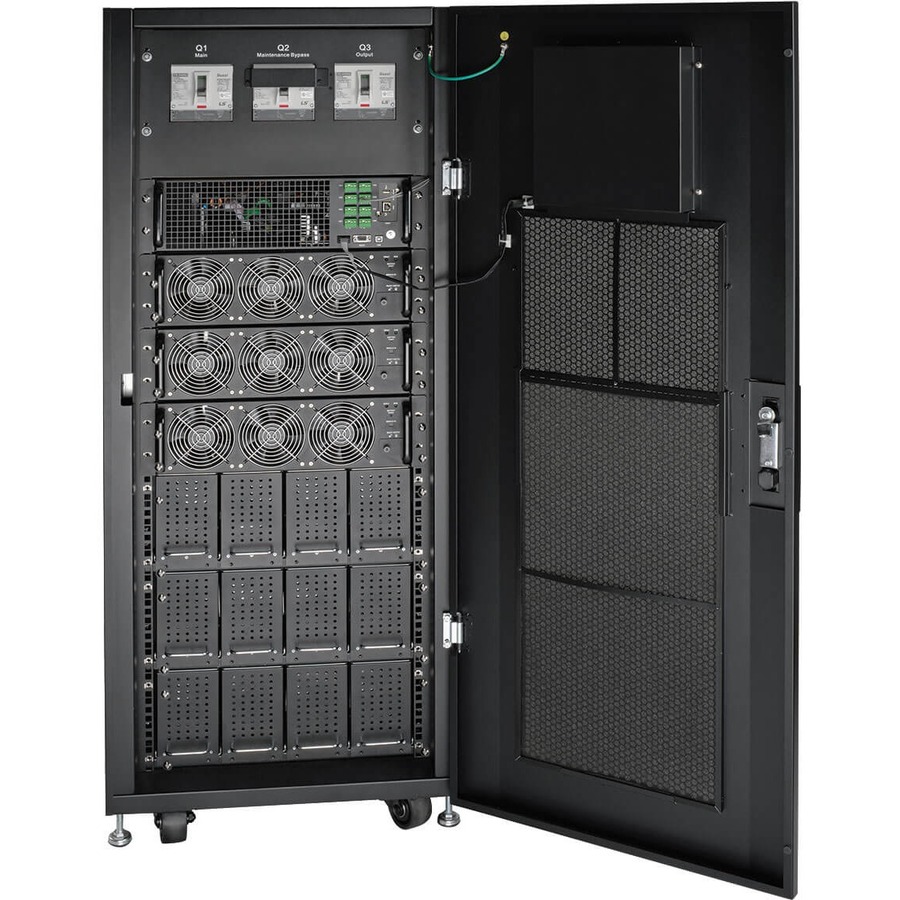

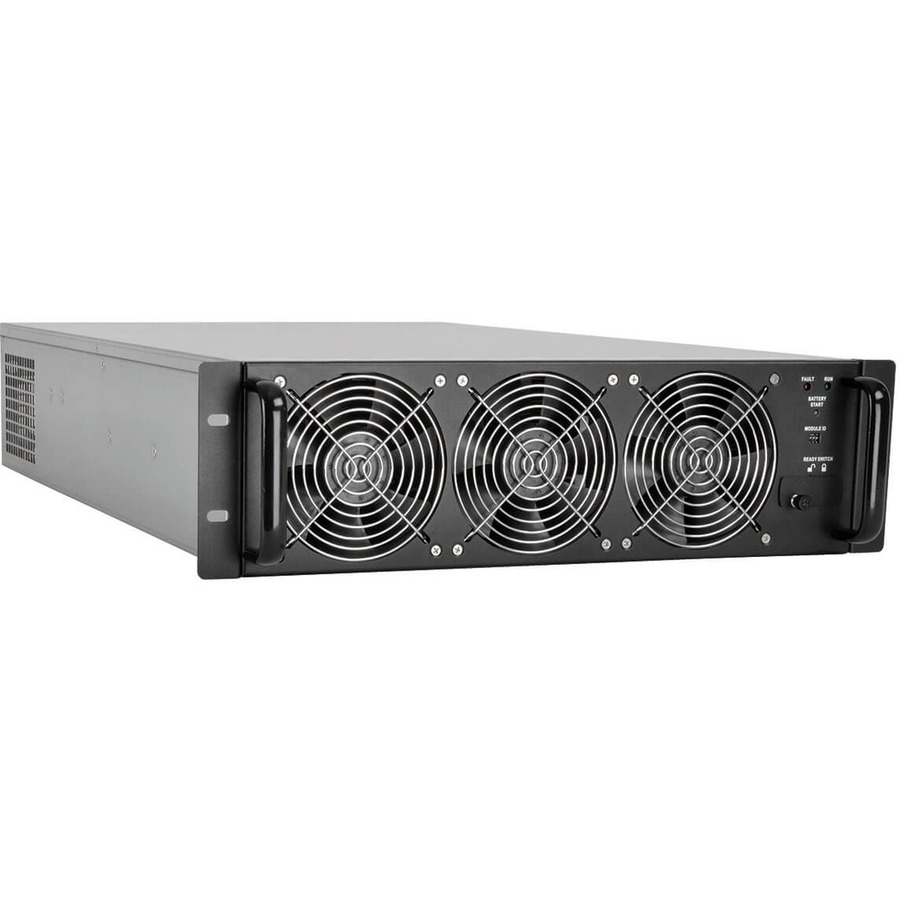

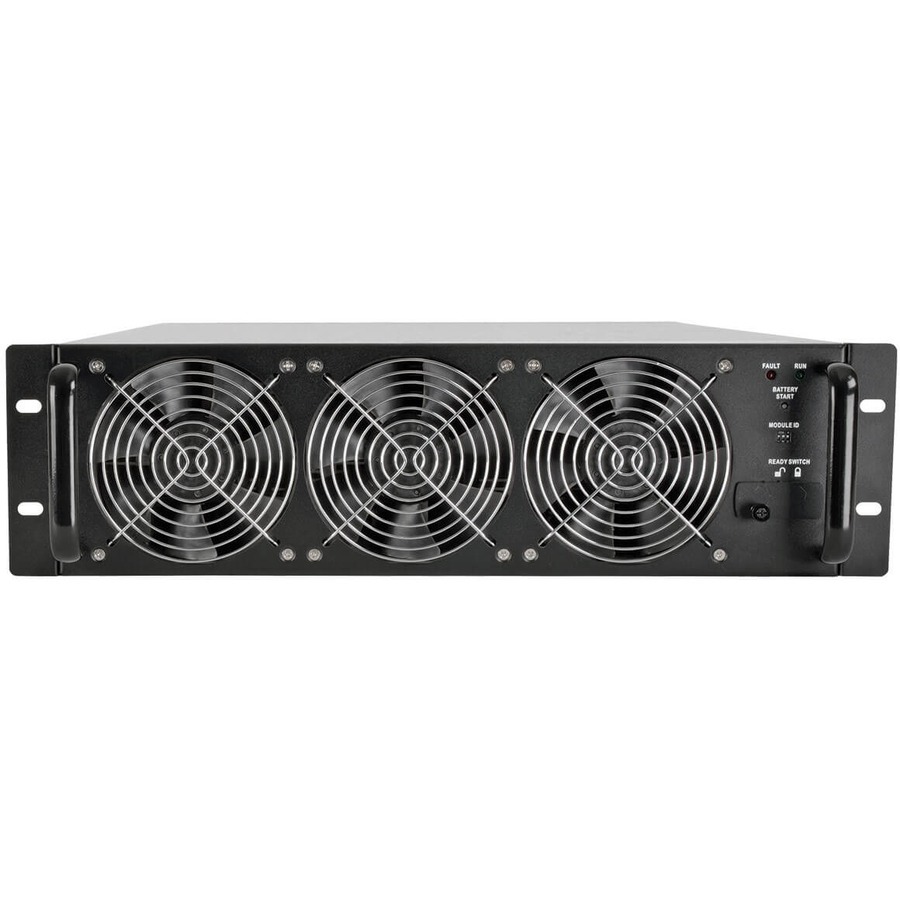

The SV60KS3P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), three 20kVA SV20PM power modules and three SVBM battery modules. It comes fully configured for 60kVA total capacity or 40kVA with enhanced N+1 protection. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.
| Manufacturer | Tripp Lite by Eaton | Brand | Tripp Lite |
| SKU | SV60KS3P3B | MPN | SV60KS3P3B |
| Category | Industrial UPS | Warranty | 1 Year |
| Manufacturer Part Number | SV60KS3P3B | Manufacturer Website Address | http://www.tripplite.com |
| Brand Name | Tripp Lite | Product Line | SmartOnline |
| Product Series | SV | Product Name | SmartOnline SV 60KVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type | Hardwired | Receptacle Type | Hard Wire 4-wire (3P + N + E) |
| Phase | Three Phase |
| Load Capacity | 60 kVA | Input Voltage | 120 V AC |
| Input Voltage Range | 120 V AC - 220 V AC | Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Backup/Run Time (Full Load) | 3.90 Minute | Backup/Run Time (Half Load) | 8 Minute |
| Form Factor | Tower | Height | 58.07" (1474.98 mm) |
| Width | 23.62" (599.95 mm) | Depth | 43.30" (1099.82 mm) |
| Weight (Approximate) | 686.29 kg |
| Package Contents | SmartOnline SV 60KVA Tower UPS | Environmentally Friendly | Yes |
| Environmental Certification | RoHS | Country of Origin | China |
| Limited Warranty | 1 Year |
