About This Product

CategoryPower Equipment / UPS / Industrial UPS

BrandTripp Lite

ConditionBrand New

MPNSVX30KS1P3B

Product Description

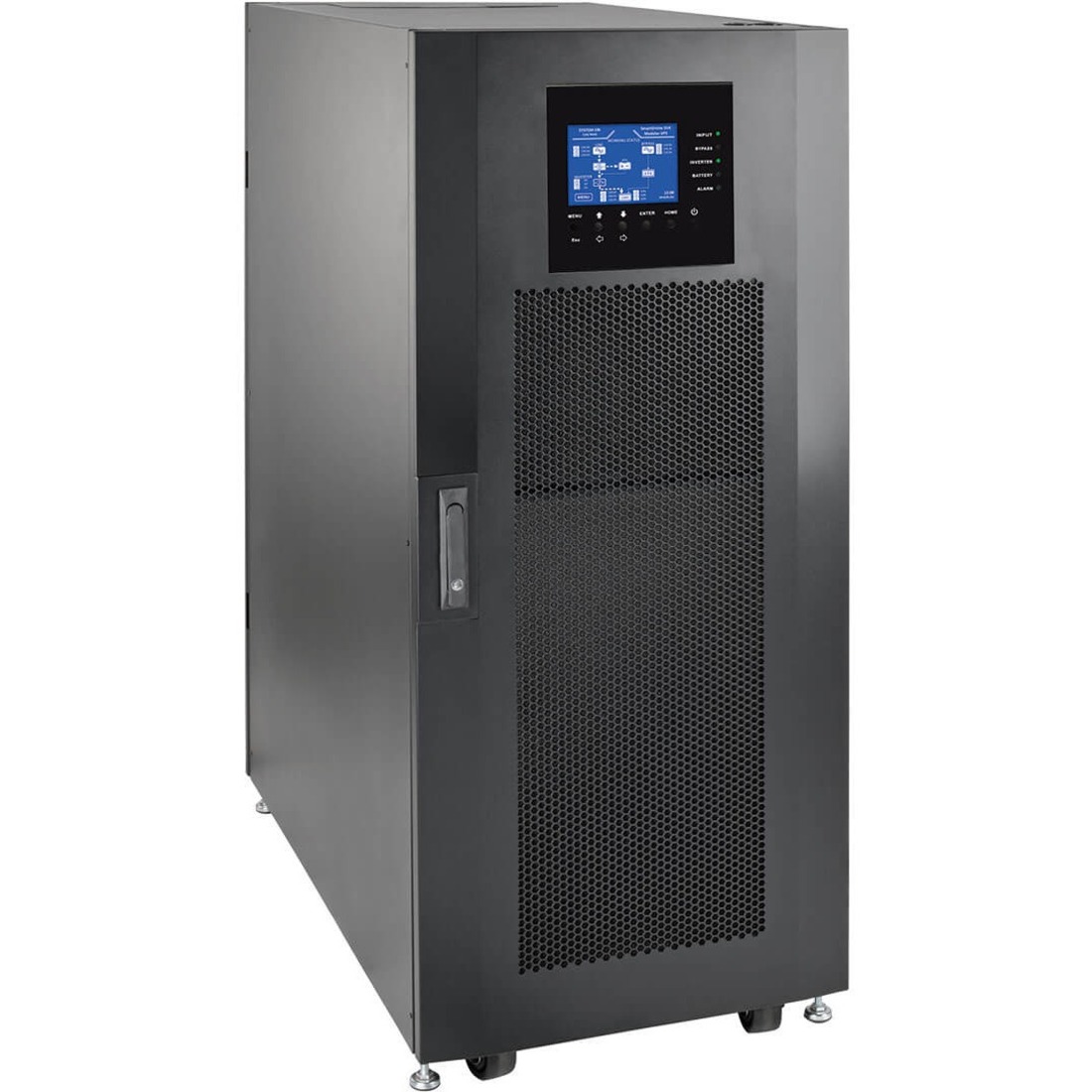

Tripp Lite SmartOnline SVX SVX30KS1P3B 30kVA Tower UPS

Product Details

ManufacturerTripp Lite by Eaton

Manufacturer Part NumberSVX30KS1P3B

Manufacturer Website Addresshttp://www.tripplite.com

Brand NameTripp Lite

Product LineSmartOnline

Product SeriesSVX

Product ModelSVX30KS1P3B

Product NameSmartOnline SVX SVX30KS1P3B 30kVA Tower UPS

Tripp Lite's SVX30KS1P3B 30kVA/30kW SmartOnline UPS offers network-grade power protection in a highly configurable small-frame modular, scalable form factor

Includes 1 SVX30PM 30kW power module for 30kVA total capacity; Open slots for up to 2 additional SVX30PM power modules enables scalable capacity configurations up to 90kW

Included batteries support a full load of 30kW for 9 minutes and half load of 15kW for 20 minutes; Extended runtime is available with the addition of any number of supported external battery packs (sold separately)

Supports 220/380, 230/400 or 240/415V AC, 3-Phase Wye 4-Wire plus Earth Hardwire input and output wiring

Tested to CE for worldwide applications

Pre-installed WEBCARDLX network interface

Serial port enables unattended shutdown and UPS monitoring ability

Modular configuration with hot-swappable power modules enables easy and fast maintenance with zero downtime

Wide input voltage operating range enables full continuous online operation during brownouts as low as 120V (Ph-N) and overvoltages up to 276 (Ph-N)

Narrow output voltage operating range regulates output voltage within 1% of the selected 220/230/240 nominal output voltage in online, double-conversion mode

Over 95% efficient in online, double-conversion mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs

Less than 3% input Total Harmonic Distortion (THDi) prevents the need to oversize generator systems relative to UPS capacity

Dual hardwire input design enables operation from one or two input power sources

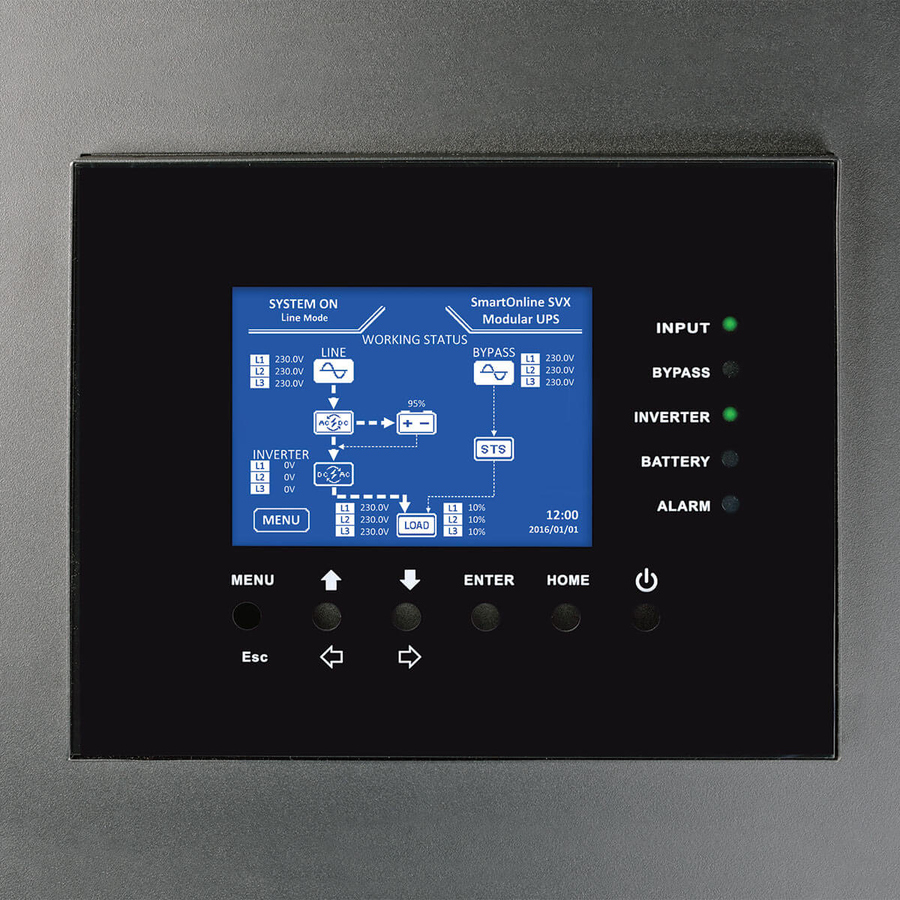

Front panel combination LCD/LED display offers full UPS condition and status reporting plus additional configuration options

Product TypeDouble Conversion Online UPS

Overview

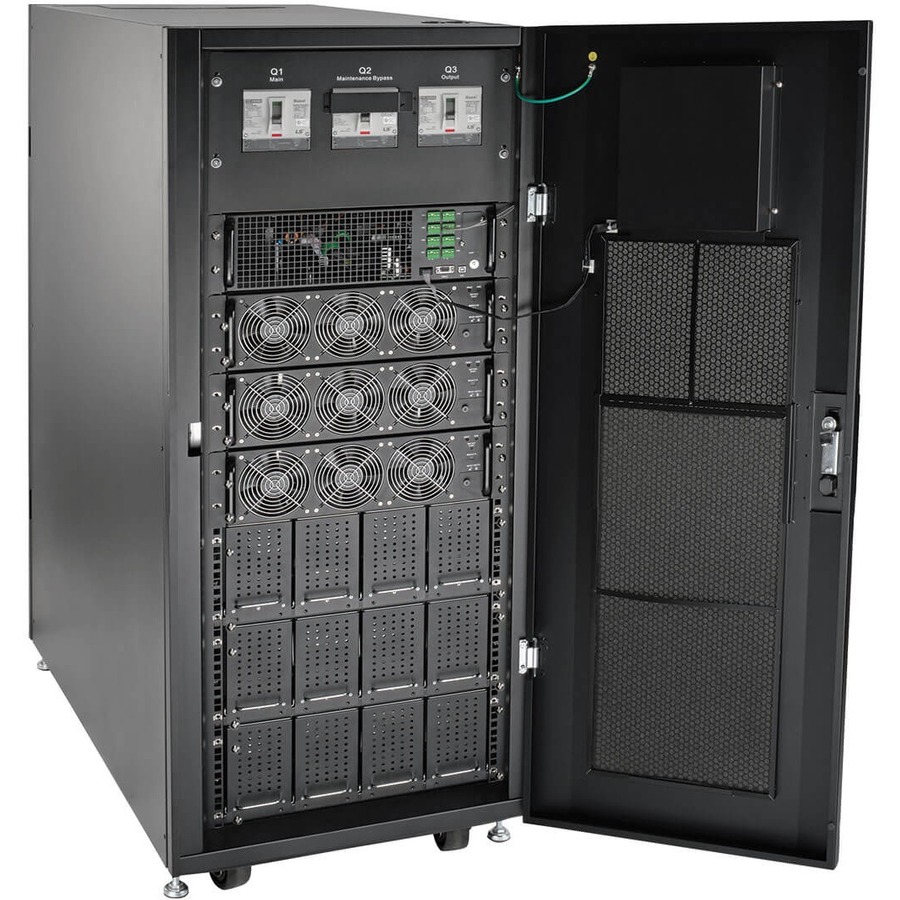

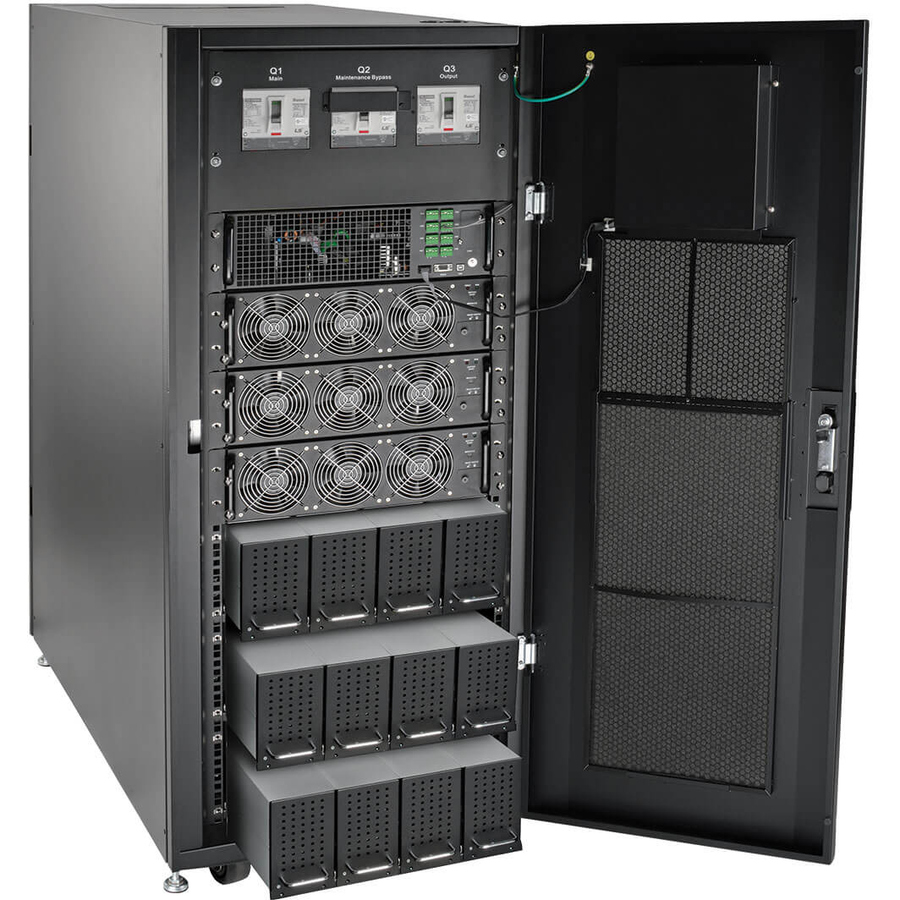

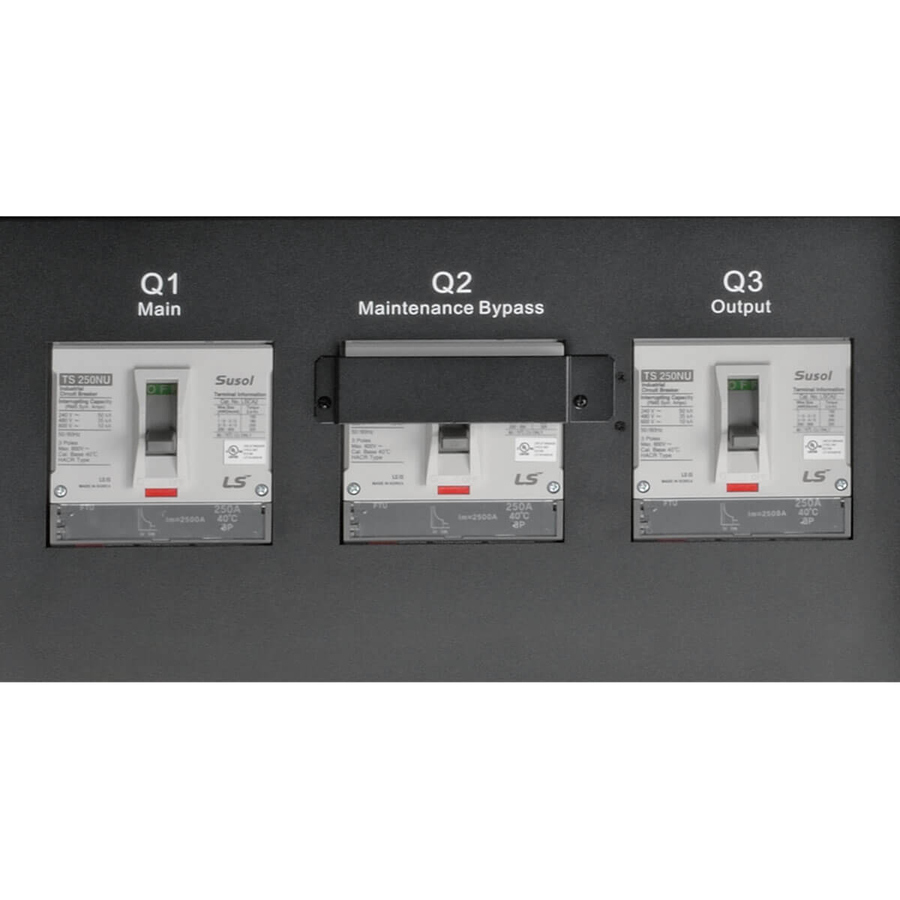

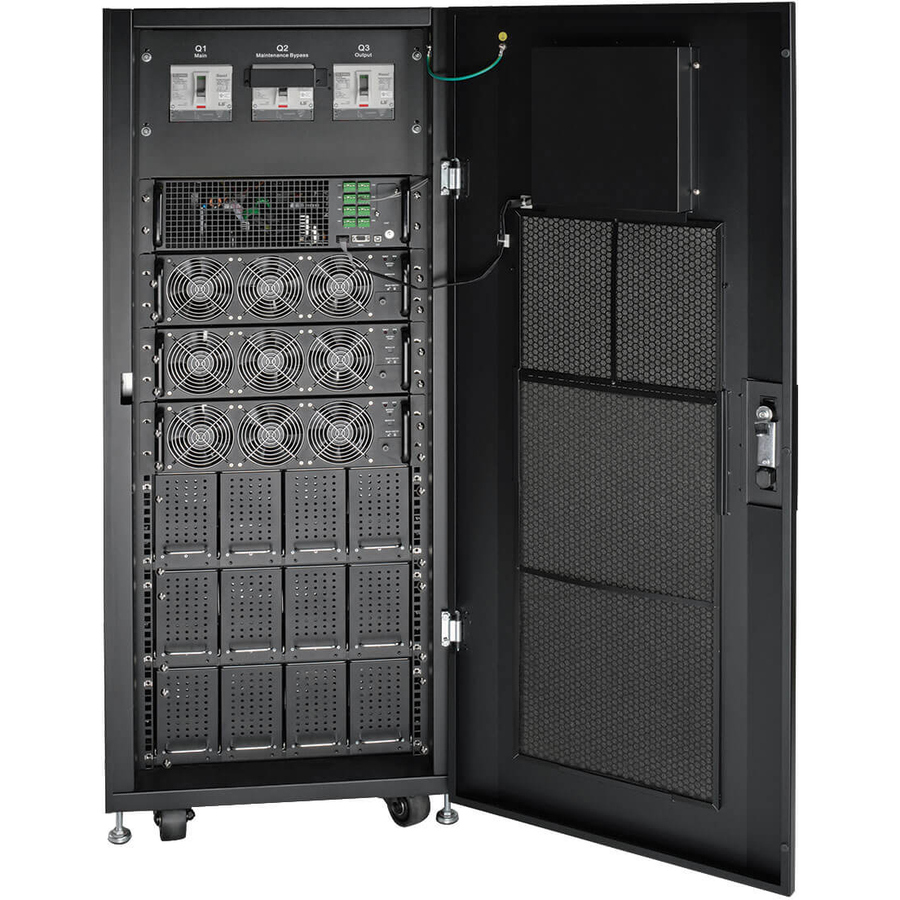

Tripp Lite's SVX30KS1P3B 30kVA/30kW SmartOnline® Small-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and 1 included 30kVA SVX30PM power module. This system supports the addition of up to 2 additional user-installable SVX30PM power modules to accommodate increased capacity up to 90kW (or 60kW with N+1). Three internal battery modules are included to fully load internal battery compartments. Additional runtime is available using any number of compatible ±240VDC external battery packs (sold separately).

Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.
Product Features:Manufacturer:Tripp Lite by EatonManufacturer Part Number:SVX30KS1P3BManufacturer Website Address:http://www.tripplite.comBrand Name:Tripp LiteProduct Line:SmartOnlineProduct Series:SVXProduct Model:SVX30KS1P3BProduct Name:SmartOnline SVX SVX30KS1P3B 30kVA Tower UPS
Marketing Information: Tripp Lite's SVX30KS1P3B 30kVA/30kW SmartOnline UPS offers network-grade power protection in a highly configurable small-frame modular, scalable form factor Includes 1 SVX30PM 30kW power module for 30kVA total capacity; Open slots for up to 2 additional SVX30PM power modules enables scalable capacity configurations up to 90kW Included batteries support a full load of 30kW for 9 minutes and half load of 15kW for 20 minutes; Extended runtime is available with the addition of any number of supported external battery packs (sold separately) Supports 220/380, 230/400 or 240/415V AC, 3-Phase Wye 4-Wire plus Earth Hardwire input and output wiring Tested to CE for worldwide applications Pre-installed WEBCARDLX network interface Serial port enables unattended shutdown and UPS monitoring ability Modular configuration with hot-swappable power modules enables easy and fast maintenance with zero downtime Wide input voltage operating range enables full continuous online operation during brownouts as low as 120V (Ph-N) and overvoltages up to 276 (Ph-N) Narrow output voltage operating range regulates output voltage within 1% of the selected 220/230/240 nominal output voltage in online, double-conversion mode Over 95% efficient in online, double-conversion mode and over 99% efficient in optional economy-mode enables reduced operating and cooling costs Less than 3% input Total Harmonic Distortion (THDi) prevents the need to oversize generator systems relative to UPS capacity Dual hardwire input design enables operation from one or two input power sources Front panel combination LCD/LED display offers full UPS condition and status reporting plus additional configuration options Product Type:Double Conversion Online UPS

Specifications

Manufacturer	Tripp Lite by Eaton	Brand	Tripp Lite
SKU	SVX30KS1P3B	MPN	SVX30KS1P3B
Category	Industrial UPS	Condition	Brand New
Product Line	SmartOnline	Country of Origin	China

Capacity	20-40	UPS Type	Double Conversion Online UPS
Input Voltage	200-240	Output Voltage	230

Network Management

SNMP Manageable

Form Factor	tower	Height	58.07" (1475 mm)
Width	23.62" (599.90 mm)	Depth	43.30" (1099.80 mm)
Weight	606 kg

Full Load Runtime

5-10

Half Load Runtime

20 Minute
