Load Bank Testing Services

Verify Real Runtime.
Ensure Total Reliability.

Load bank testing validates UPS and battery systems under real controlled load conditions to ensure backup power performs exactly when it matters. IEEE-compliant, fully documented.

Schedule Load Test Request Quote

100%

Full load testing capability

Prevent

Downtime before it happens

Ensure

Reliability under real load

Compliance

Testing per IEEE 450/1188

Reduce

Risk of power failure

Diagnostics

What Load Bank Testing Detects

Issues invisible during self-diagnostics are fully exposed under real load conditions.

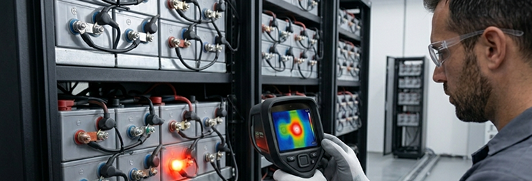

Weak Battery Strings

Identify underperforming battery strings before they cause failure during a real power event.

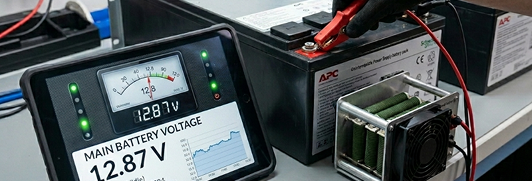

Voltage Deficiencies

Expose voltage drops that occur only under load — not detectable during idle diagnostics.

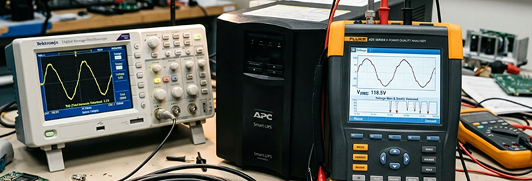

Voltage Instability

Detect voltage fluctuations and waveform distortion that stress connected equipment.

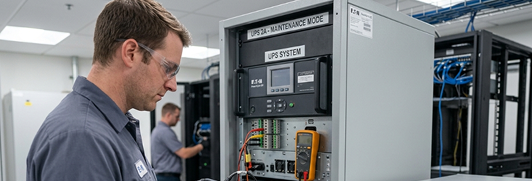

UPS Performance Issues

Uncover hidden UPS faults including faulty bypass circuits and incorrect transfer times.

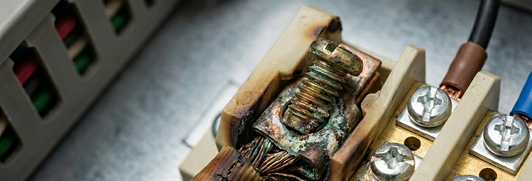

Faulty Connections

Find loose or corroded terminals and connections that create resistance under load.

Capacitor Degradation

Identify aging capacitors that reduce power quality and shorten UPS lifespan.

Benefits of Load Bank Testing

Proactive validation prevents costly surprises — and protects your reputation.

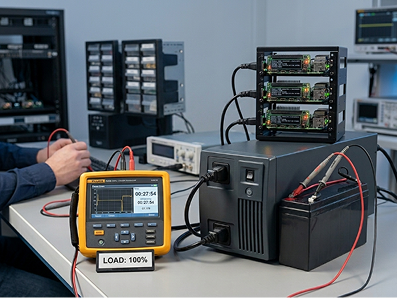

Validate Actual Runtime

Confirm real backup duration under full load — not manufacturer estimates.

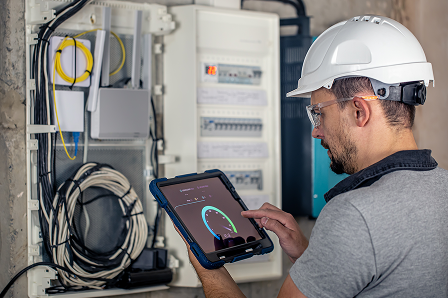

Simulate Utility Failure

Test the complete chain under controlled conditions before a real outage.

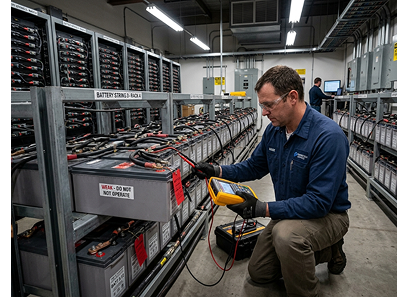

Identify Weak Batteries

Expose battery strings that will fail before they cause downtime.

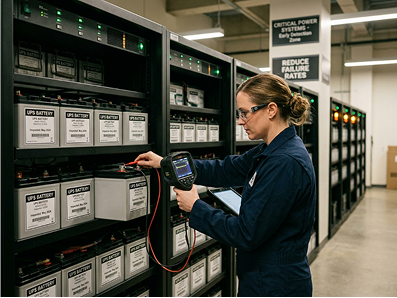

Reduce Failure Rates

Early detection dramatically reduces unplanned critical power failures.

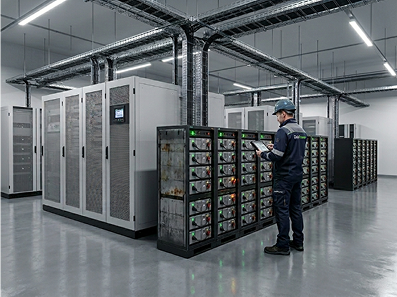

Improve Maintenance Planning

Data-driven insights help prioritise replacement and maintenance schedules.

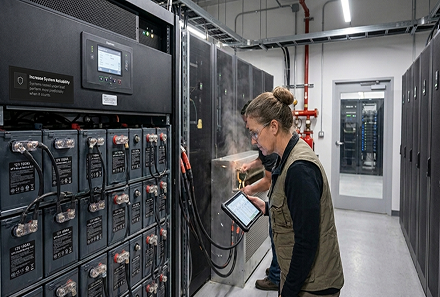

Increase System Reliability

Systems tested under load perform more predictably when it counts.

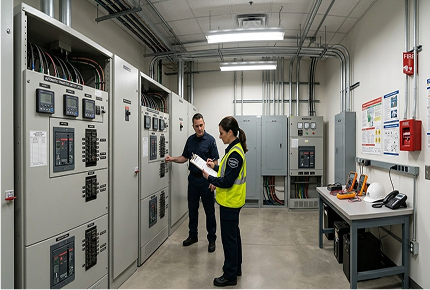

Support Compliance Audits

IEEE 450, NFPA 110, JCAHO — documented results satisfy all major standards.

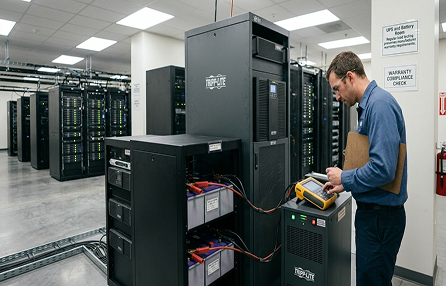

Warranty Maintenance

Regular load testing preserves manufacturer warranty requirements.

Applications

Testing Applications

Load bank testing across all mission-critical environments and industry sectors.

Data Centers

Validate UPS runtime and redundancy for server infrastructure and colocation facilities.

Telecom & Network

Ensure uninterrupted backup power for cell towers, network nodes, and communications hubs.

Hospitals & Healthcare

Life-critical power validation for operating theatres, ICUs, and medical imaging systems.

Industrial Facilities

Generator and UPS testing for manufacturing plants, utilities, and process control systems.

Why Load Testing

The Only Way to
Verify True Capacity

UPS systems can appear fully operational during self-diagnostics, yet fail to deliver at full capacity under real-world conditions. Degraded components, weak battery strings, and faulty bypass systems often go undetected without actual load testing.

Our load bank testing uses controlled, calibrated load banks to methodically stress your UPS, generator, or entire power chain — following IEEE standards and delivering comprehensive data with actionable results.

Critical Applications Require Load Testing

Data centers, hospitals, and mission-critical facilities must validate backup power capacity.

Validates Before a Real Outage Occurs

Confirm your UPS can handle full rated load with reliable transfer times.

Warranty & Compliance Support

Maintain manufacturer warranty and meet regulatory requirements with documented results.

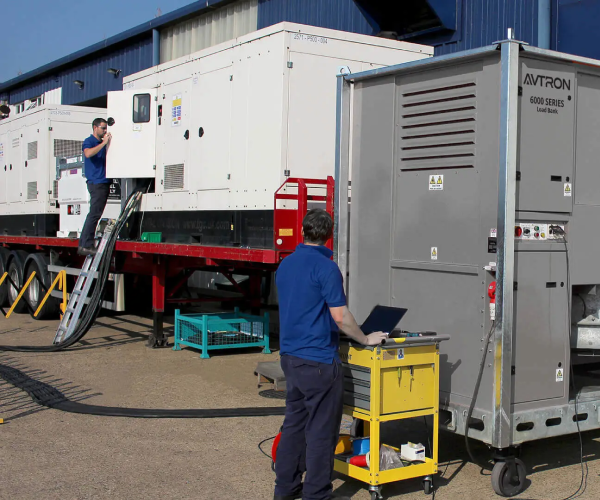

Load bank testing equipment in operation

On-Site Testing

2,500+

Tests Completed

IEEE 450

Certified Standard

Our Load Bank Testing Services

Comprehensive testing programs for UPS, battery, generator, and integrated power systems.

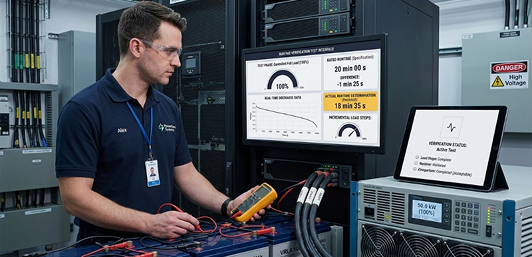

Runtime Verification

Validate actual backup runtime under controlled full load — the only way to confirm real-world performance against rated specifications.

Runtime Verification

Validate actual backup runtime under controlled full load — the only way to confirm real-world performance against rated specifications.

0–100% incremental load steps
Actual runtime determination
Rated vs actual comparison

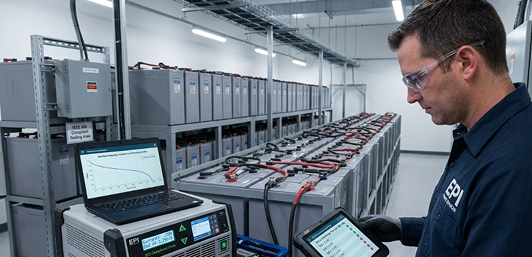

Battery Capacity Testing

Controlled discharge to rated end voltage to identify weak cells, validate backup runtime, and establish baseline capacity per IEEE 450/1188.

Battery Capacity Testing

Controlled discharge to rated end voltage to identify weak cells, validate backup runtime, and establish baseline capacity per IEEE 450/1188.

Per-string cell monitoring
Capacity validation & trending
IEEE 450/1188 compliant

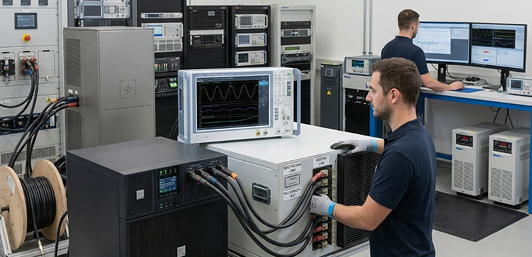

UPS Performance Validation

Apply resistive or reactive loads to verify output capacity, voltage regulation, waveform quality, and transfer times under full load.

UPS Performance Validation

Apply resistive or reactive loads to verify output capacity, voltage regulation, waveform quality, and transfer times under full load.

THD & power factor analysis
Bypass & transfer testing
Voltage regulation check

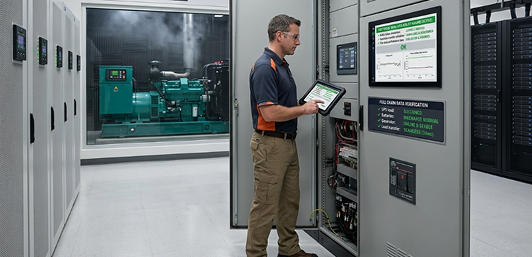

Simulated Power Outage Testing

Full simulation of a utility failure to verify the complete power chain — UPS, batteries, and generator — transfer and sustain load seamlessly.

Simulated Power Outage Testing

Full simulation of a utility failure to verify the complete power chain — UPS, batteries, and generator — transfer and sustain load seamlessly.

Utility failure simulation
Generator transfer validation
Full chain performance data

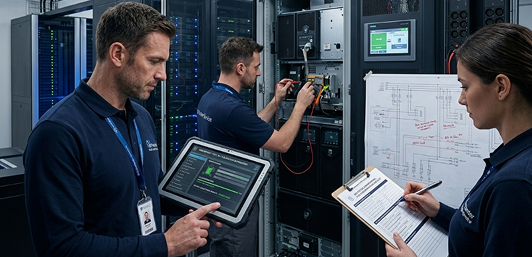

New System Commissioning

Comprehensive acceptance testing for newly installed systems including all operating modes, redundancy confirmation, and as-built documentation.

New System Commissioning

Comprehensive acceptance testing for newly installed systems including all operating modes, redundancy confirmation, and as-built documentation.

Factory acceptance results
Redundancy confirmation (N+1, 2N)
As-built documentation

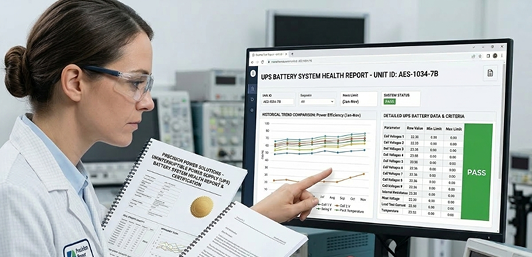

Detailed Test Reporting

Every test produces a comprehensive PDF report with all data, findings, pass/fail criteria, trending charts, and compliance certificates.

Detailed Test Reporting

Every test produces a comprehensive PDF report with all data, findings, pass/fail criteria, trending charts, and compliance certificates.

PDF report with all raw data
Compliance certificates included
Historical trend comparison

Our 5-Step
Load Bank
Testing
Process

A structured, repeatable approach ensuring safety, accuracy, and minimal operational disruption for every test.

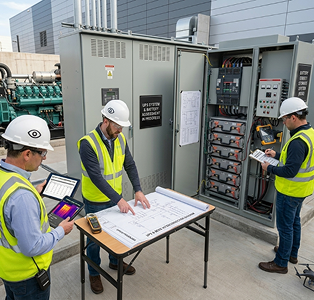

Site Assessment

Survey the site, calculate load requirements, plan bypass procedures, and coordinate with all stakeholders.

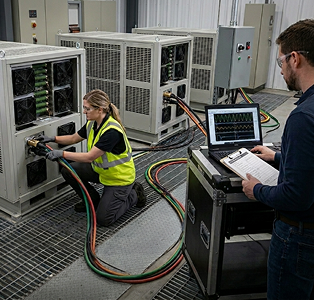

Test Setup

Position load banks, install cabling, connect monitoring equipment, and complete all safety checks.

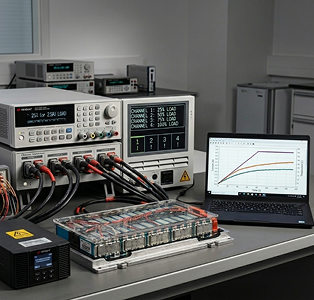

Load Application

Apply load incrementally from 25% to 100%, logging data continuously at each level throughout the test.

Data Collection

Record voltage, current, power factor, temperature, and runtime at every load increment for full traceability.

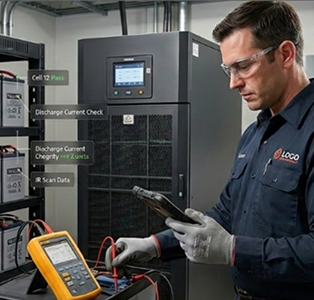

Reporting

Deliver a comprehensive report with all findings, compliance certificates, and prioritised recommendations.

Load Levels We Perform

Incremental testing from 25% to full load

25%

Low Load Test

Initial baseline check and equipment warm-up verification.

50%

Half Load Test

Mid-range performance validation and cooling assessment.

75%

High Load Test

Near-capacity stress test to identify marginal components.

100%

Full Load Test

Complete rated capacity validation — the definitive runtime test.

Parameters We Monitor

Continuous data logging throughout the test

Voltage Output

UPS Output (kVA)

Load (kW)

Battery Temp

Battery Current

Frequency (Hz)

Runtime Elapsed

Power Factor

Waveform (THD)

Cell Voltage

Transfer Time

Ambient Temp

Load Bank Test Report

What's included in every test package

Executive summary with pass/fail verdict

Full data logs at every load increment

Voltage, current & power factor charts

Battery discharge curve & runtime graph

Phase load distribution analysis

Thermal imaging results (if applicable)

IEEE 450/1188 compliance certificate

NFPA 110 test documentation

Identified deficiencies & root causes

Prioritised replacement recommendations

Historical trend comparison (repeat tests)

Digital PDF + hard copy delivery

Supported UPS Brands

We test and service all major UPS manufacturers

Industries We Serve

Who We Work With

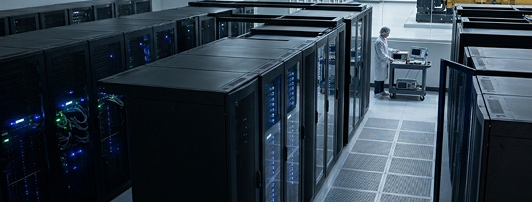

Data Centers & Colocation

Mission-critical server uptime
Tier III/IV compliance testing
Generator & UPS integration

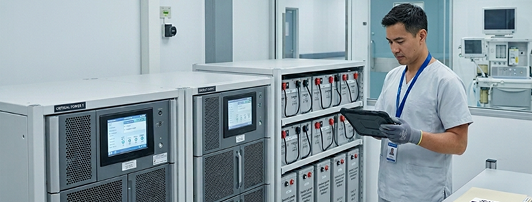

Hospitals & Healthcare

Life safety power validation
JCAHO compliance documentation
Operating theatre backup power

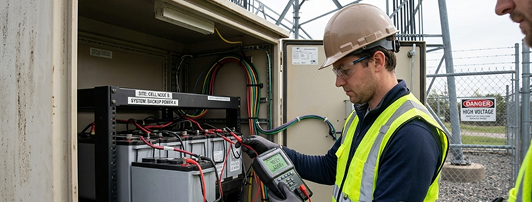

Telecom & Communications

Cell tower battery testing
Network node backup validation
24/7 uptime assurance

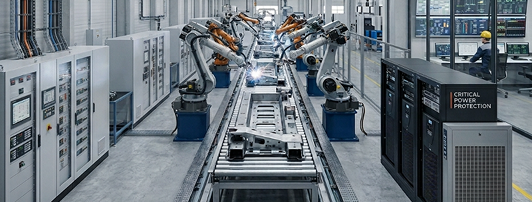

Manufacturing & Industrial

Production line power protection
Generator acceptance testing
Process control systems

Government & Defence

Continuity of operations testing
Security clearance compatible
Federal compliance standards

Financial & Banking

Trading floor power validation
Regulatory compliance reporting
Zero-downtime testing approach

When Should You Perform Load Bank Testing?

These are the critical moments when load bank testing delivers the highest value and protection.

Before Mission-Critical Battery Testing

Establish baseline before committing to replacements — know exactly what you have.

After a Major Power Event or Outage

Verify system integrity before returning to normal service after an unplanned event.

During New UPS System Installation

Acceptance testing confirms the system delivers rated performance before go-live.

Before Insurance or Compliance Audits

Documented test results satisfy NFPA 110, JCAHO, and insurer requirements.

After UPS Upgrades or Battery Replacements

Confirm new components perform to specification under real load conditions.

During Annual Preventive Maintenance

Annual load testing tracks performance trends and catches early degradation.

Before Facility Expansions or Migrations

Validate existing infrastructure can support increased load demand.

After Extended Generator Standby Periods

Prevent wet stacking and confirm generator readiness with a proper load test.

Call Us

1-877-UPS-BATT

Email Us

service@upsbattery.ca

Emergency

24/7 Response Available
